Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Technical Service Bulletins >> All Technical Service Bulletins >> Diagnostic Test Procedure - Manual Revisions >> 1986 2.2L Turbo (Book No. 81-699-6011) Revised 9/86 >> Wiring Diagrams

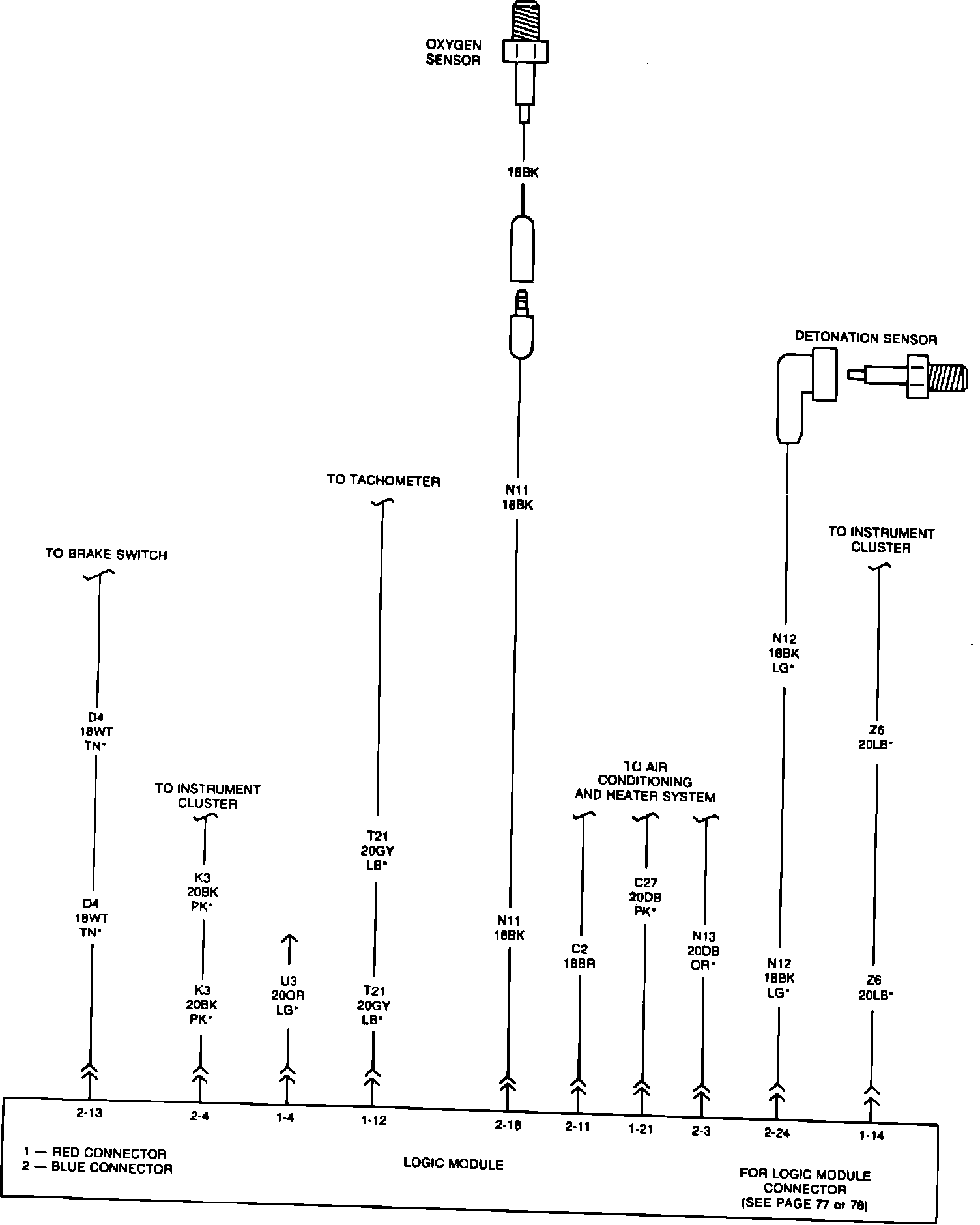

Wiring Diagrams
