Driveability Test Information

1986 2.2L TURBO (BOOK NO. 01-699-6011) REVISED 9/86

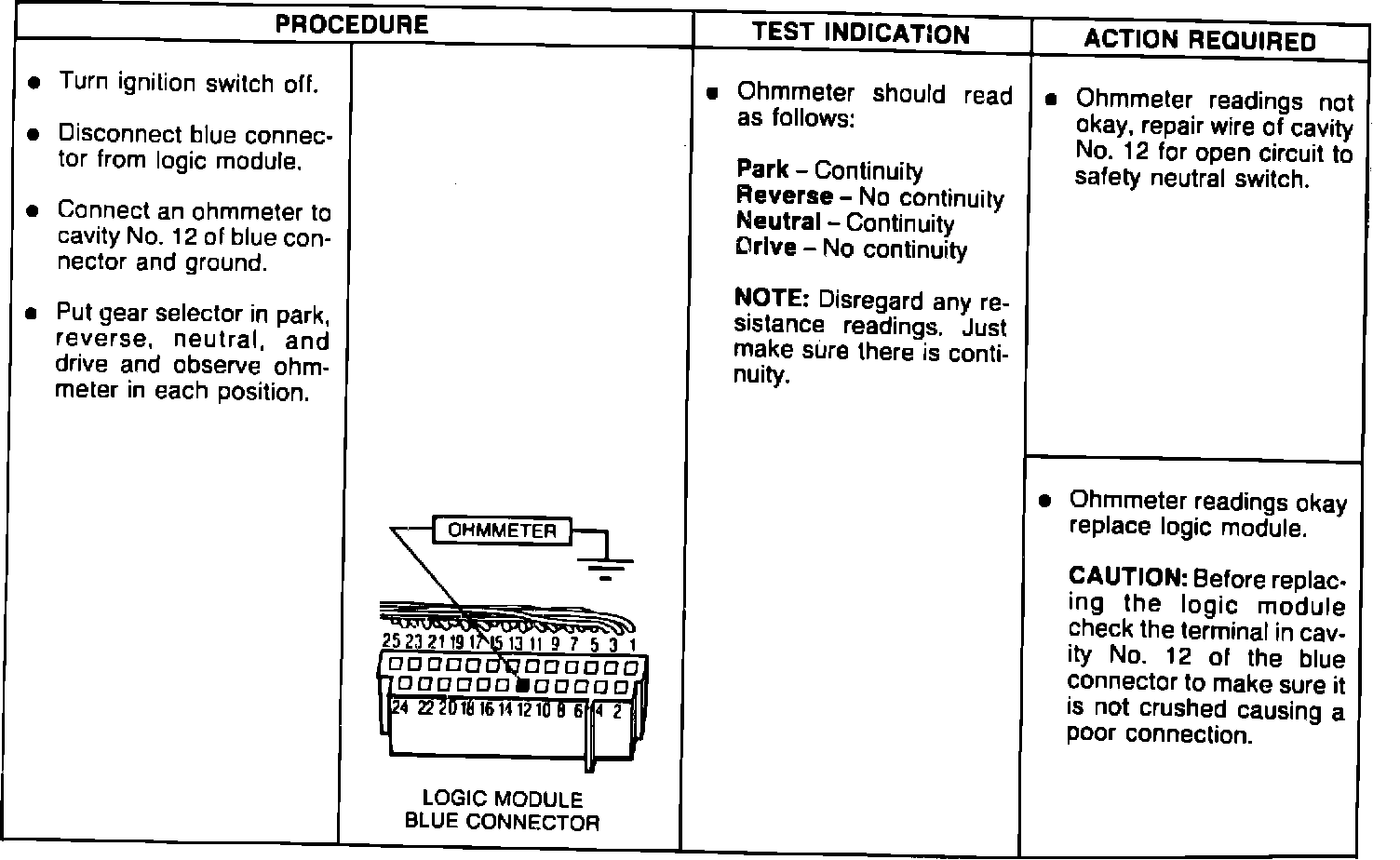

TEST 1 STEP E CHECKING PARK/NEUTRAL SWITCH INPUT CIRCUIT TO THE LOGIC
MODULE

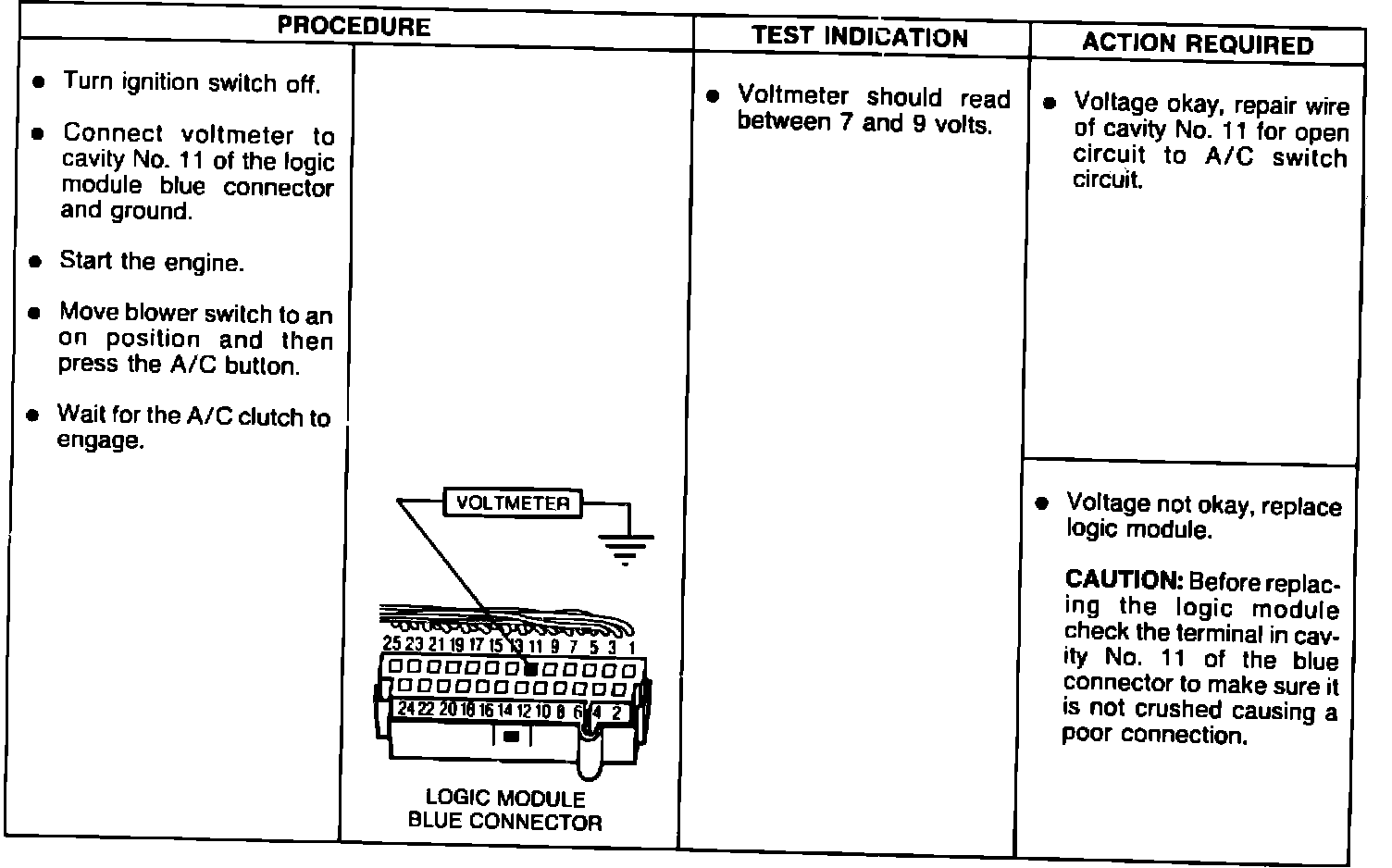

TEST 1 STEP F CHECKING A/C PUSH BUTTON SWITCH INPUT CIRCUIT TO THE
LOGIC MODULE
1986 2.2L TURBO (BOOK NO. 81-699-6011) REVISED 9/86

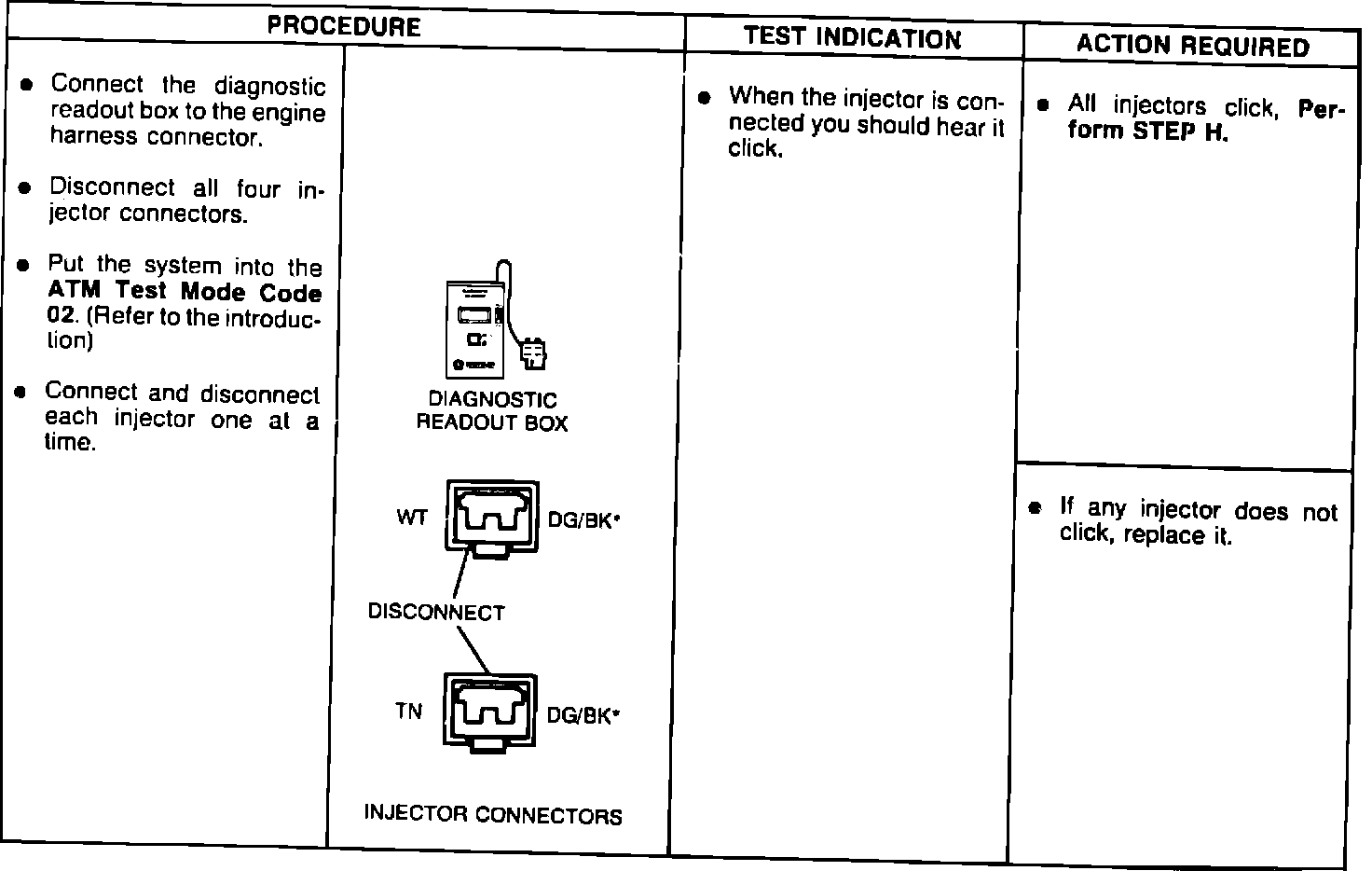

TEST 1 STEP G CHECKING FUEL INJECTORS

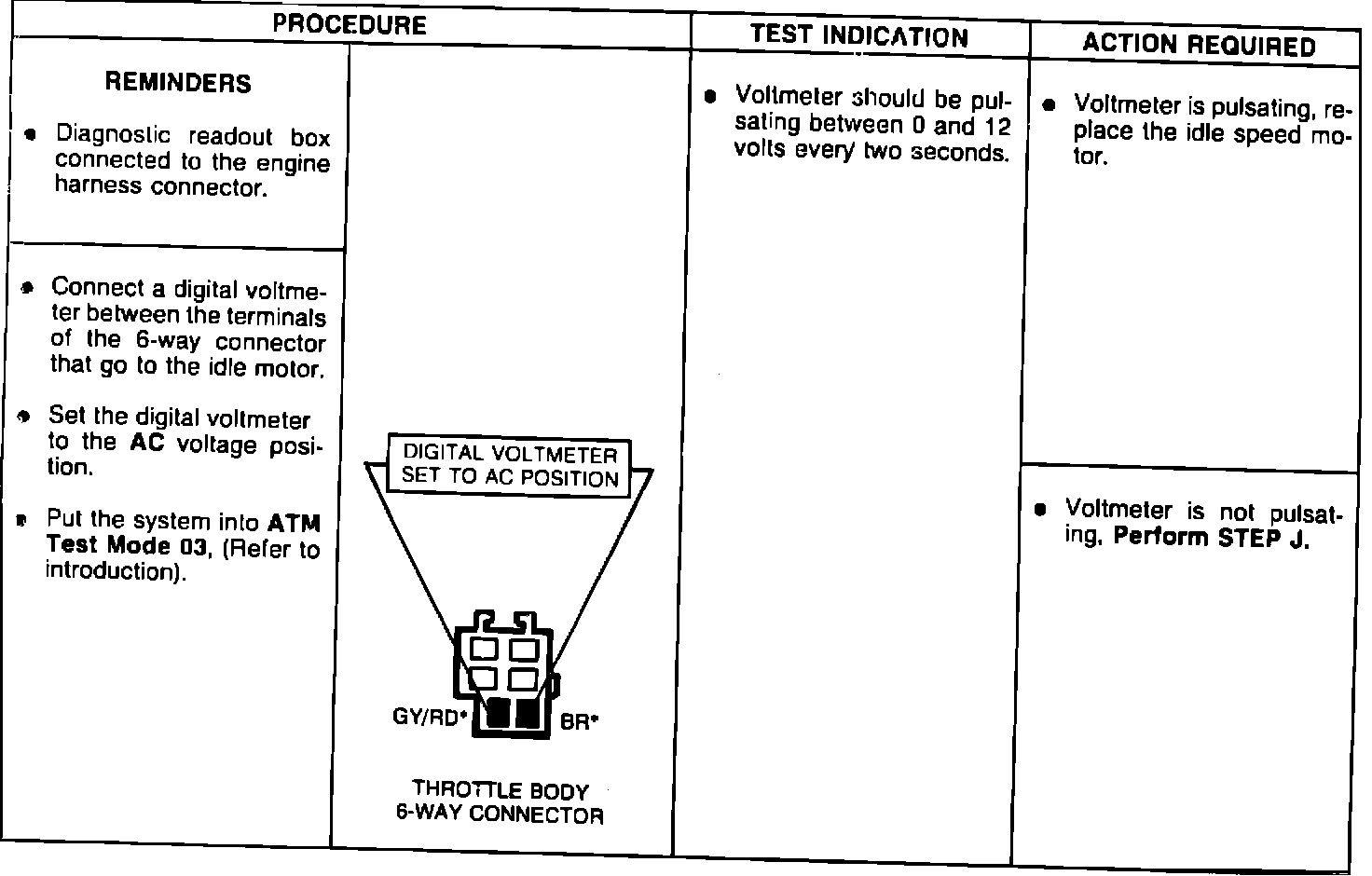

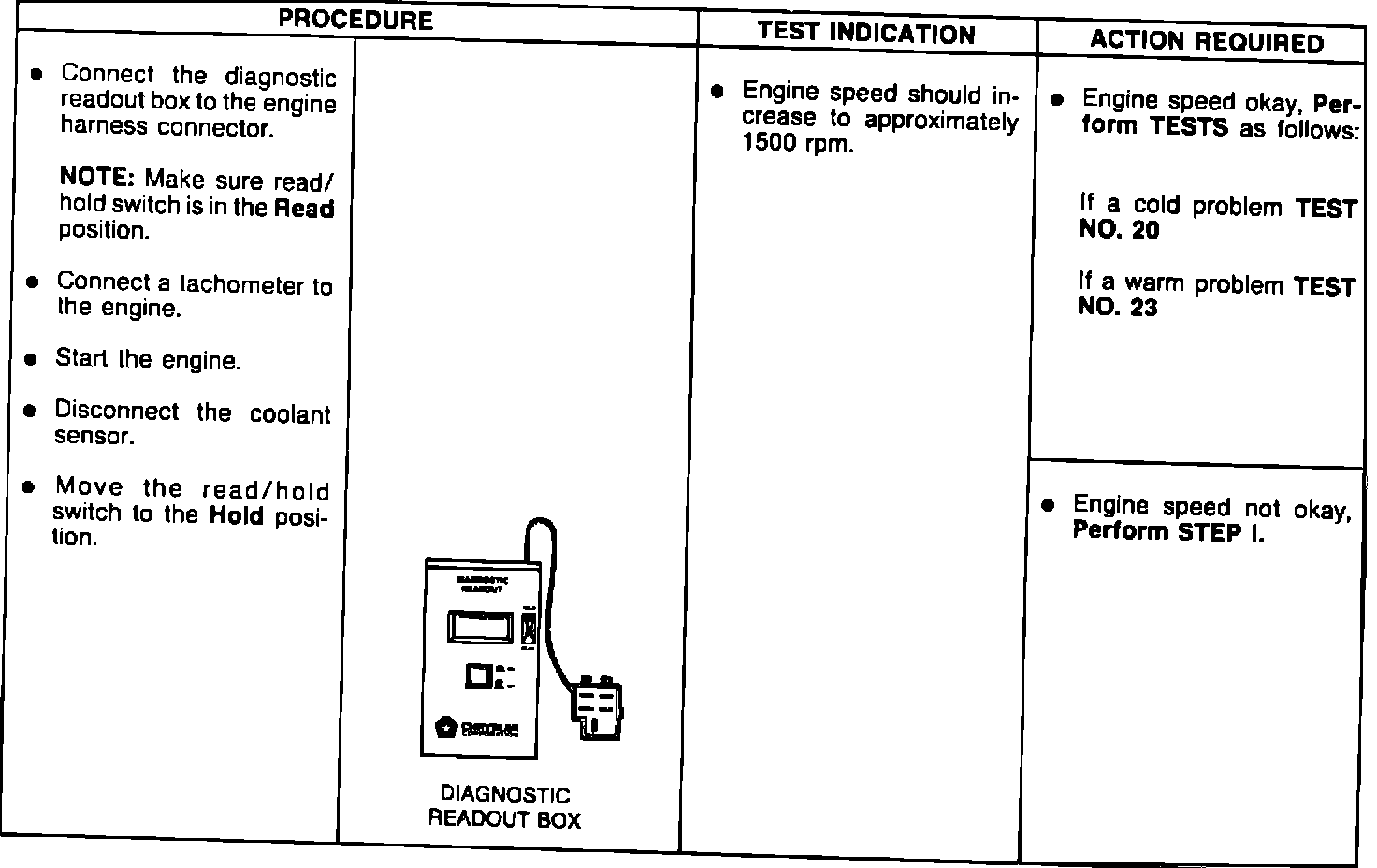

TEST 1 STEP H CHECKING AUTOMATIC IDLE SPEED MOTOR OPERATION
1986 2.2L TURBO (BOOK NO. 81-699-6011) REVISED 9/86



TEST 1 STEP I CHECKING AUTOMATIC IDLE SPEED MOTOR SIGNAL FROM THE
LOGIC MODULE

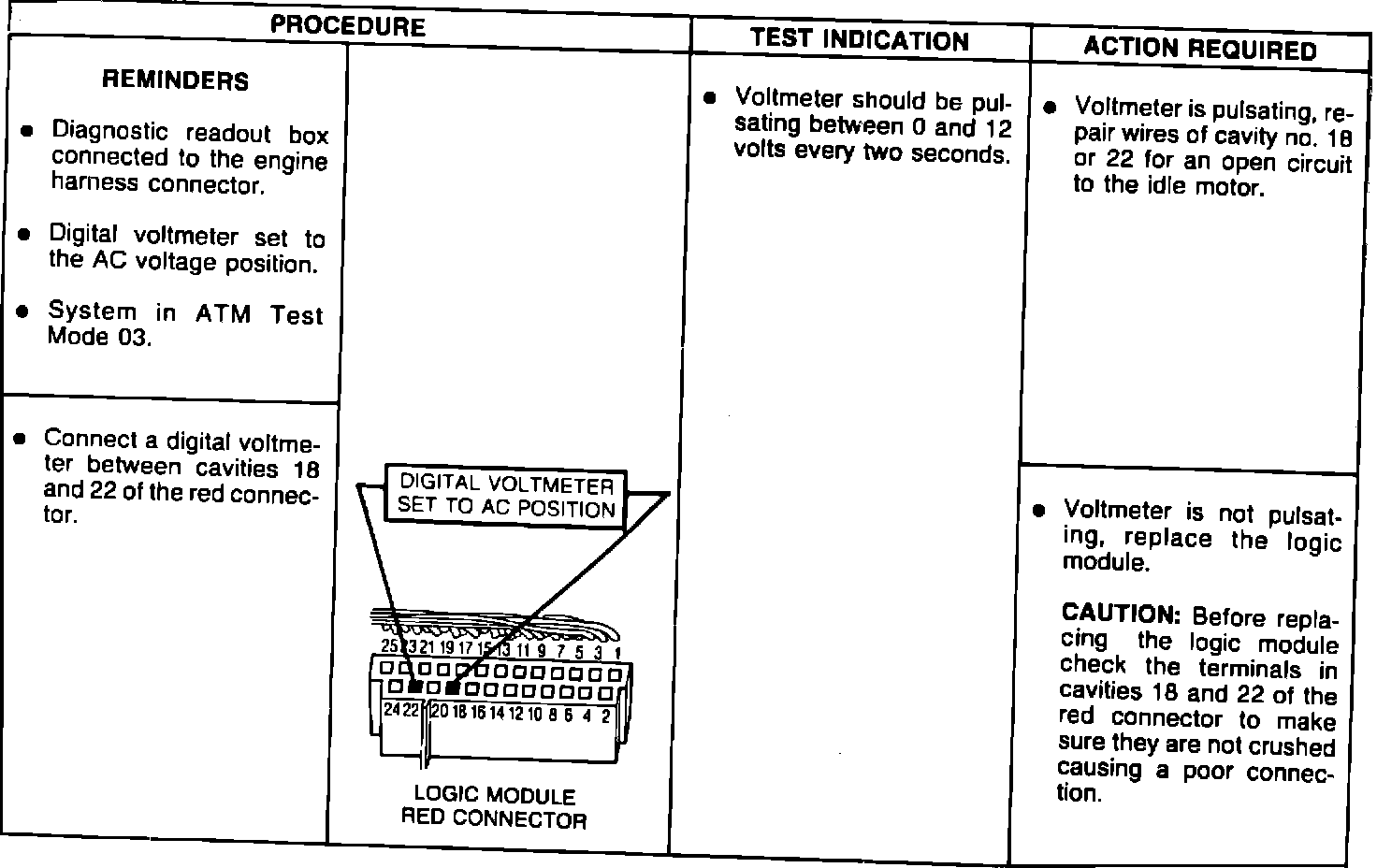

TEST 1 STEP J CHECKING AUTOMATIC IDLE SPEED MOTOR CONTROL SIGNAL AT
THE LOGIC MODULE.

1986 2.2L TURBO (BOOK NO. 81-699-6011) REVISED 9/85

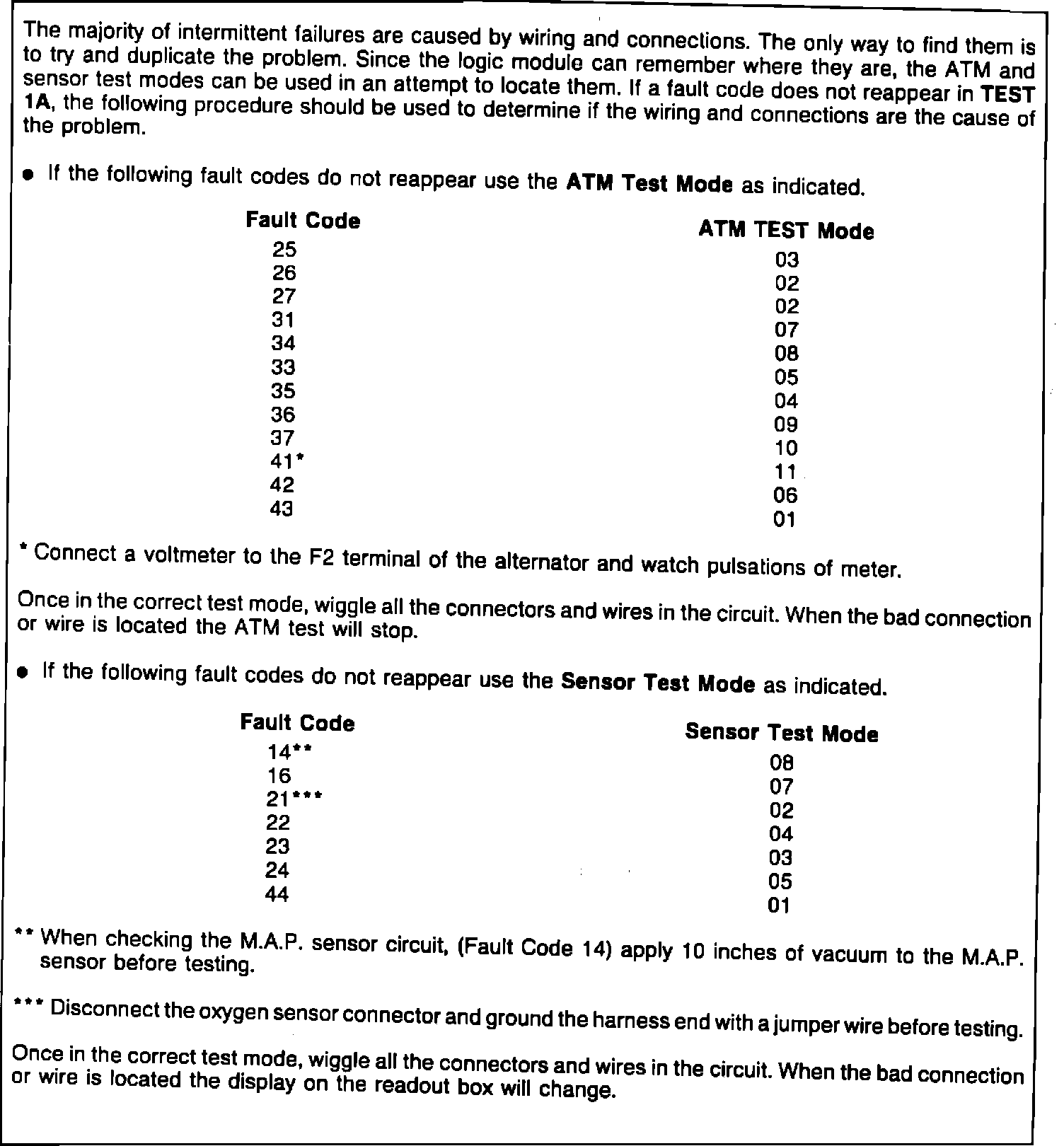

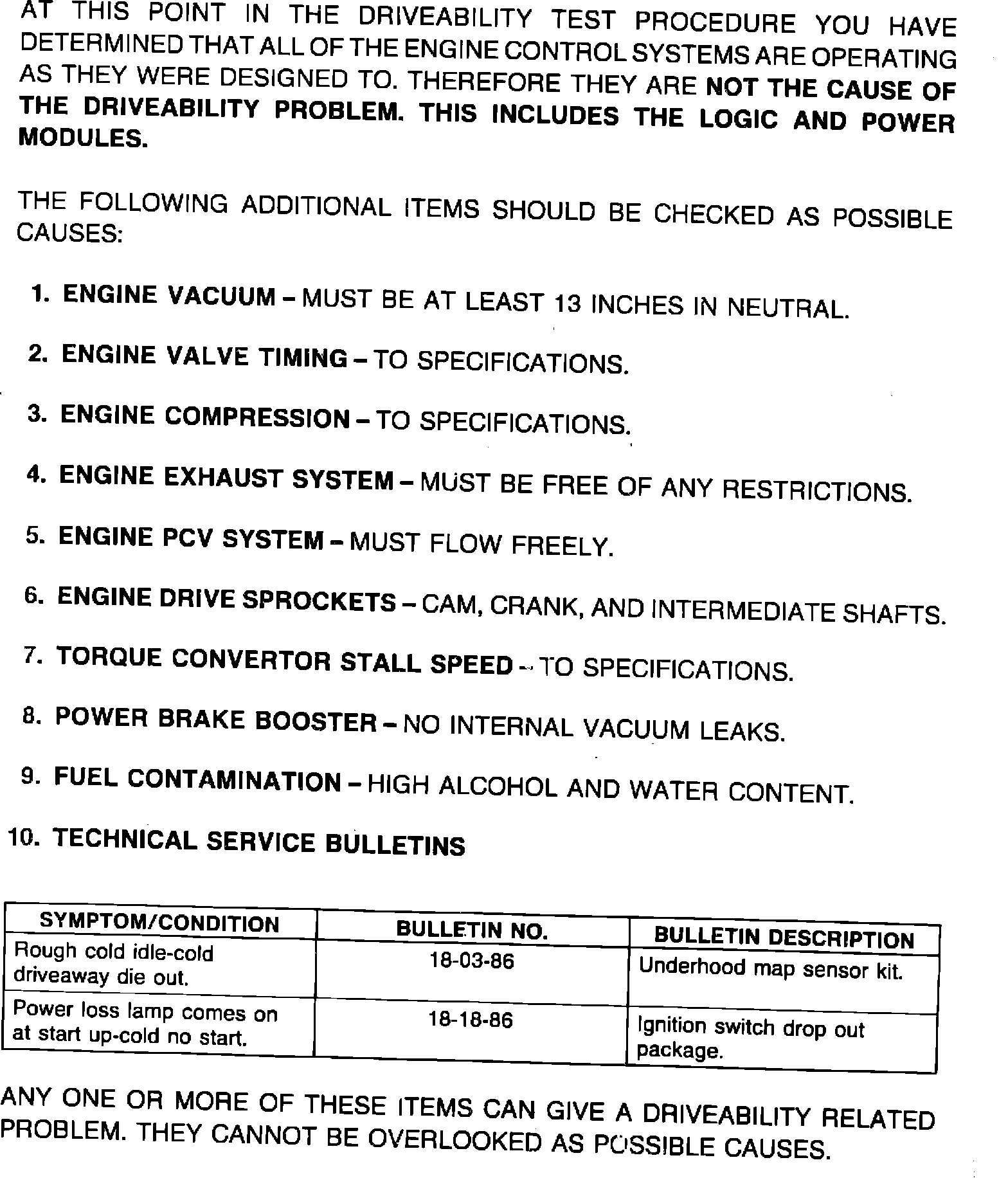

TEST 1 STEP K CHECKING FOR INTERMITTENT FAILURES

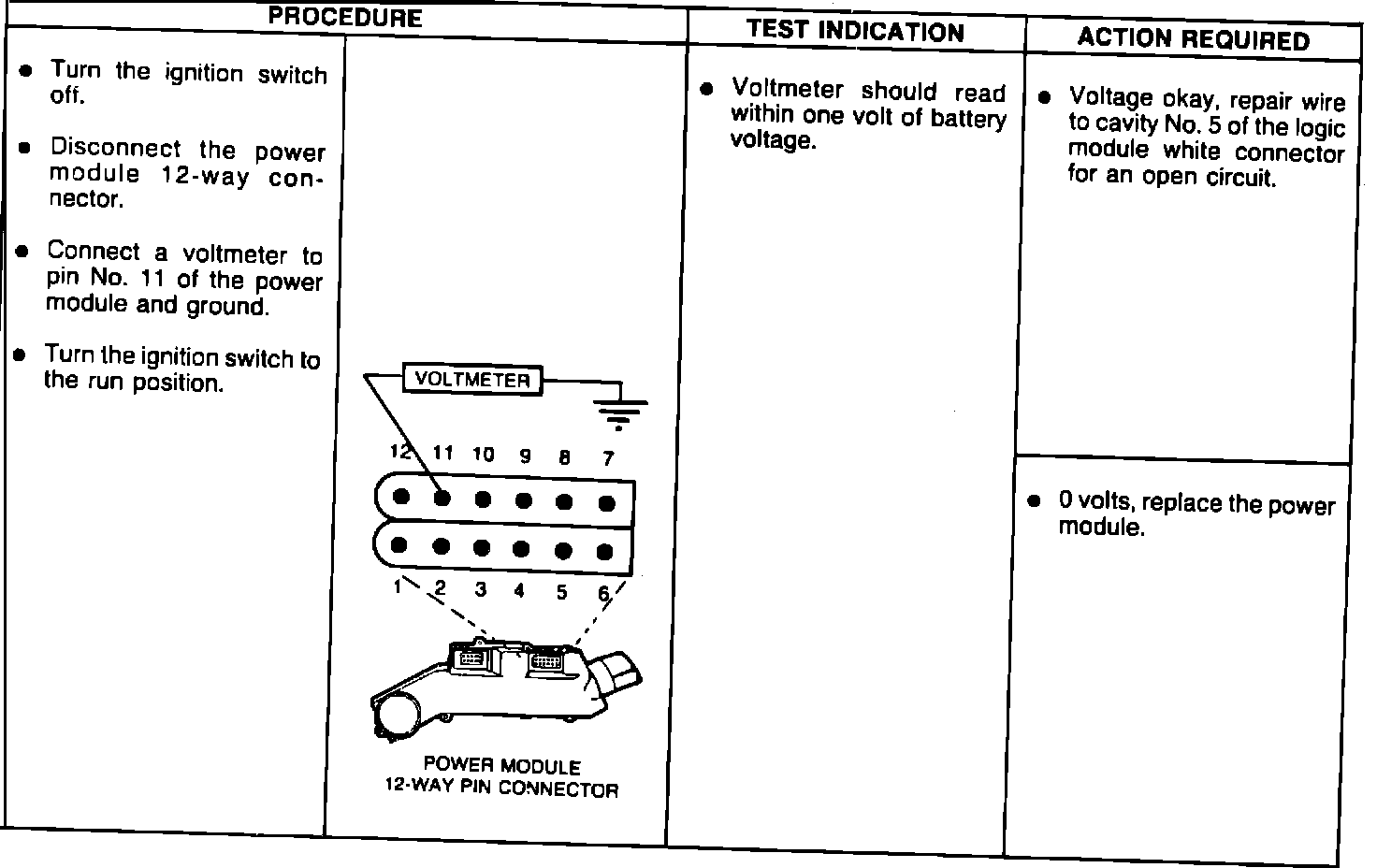

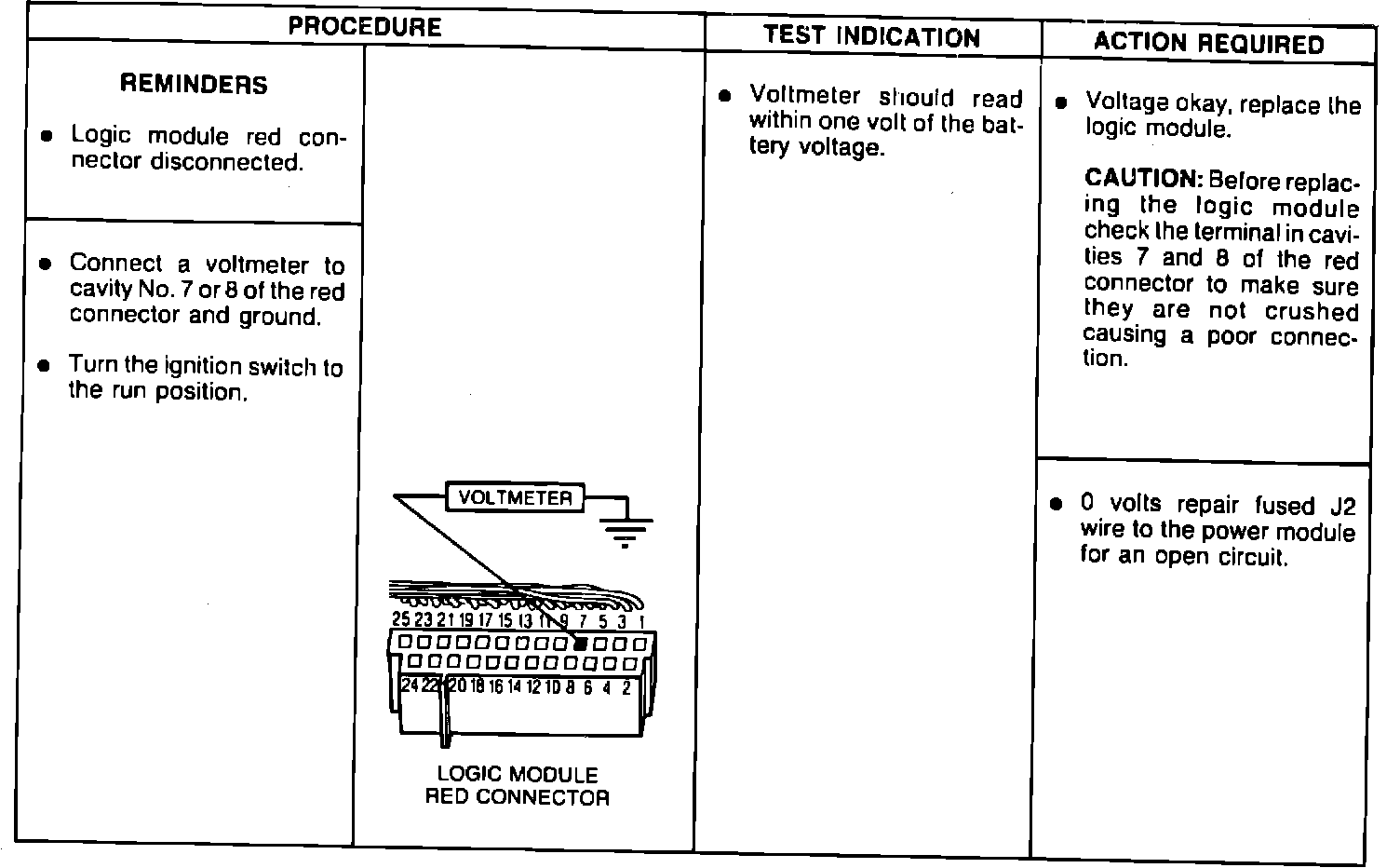

TEST 9 STEP D CHECKING THE FJ2 WIRE FROM THE [1][2]POWER MODULE FOR AN
OPEN CIRCUIT

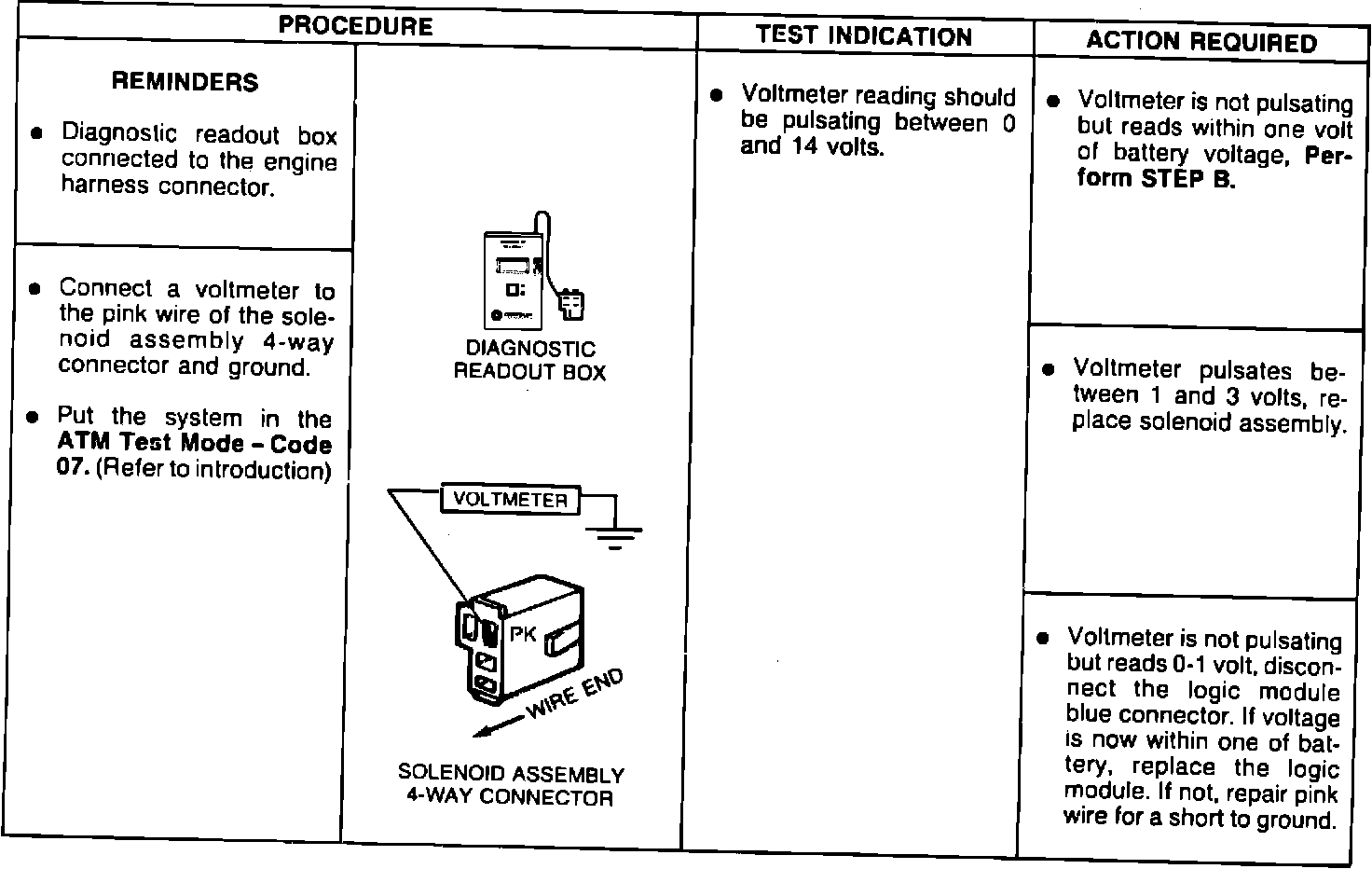

TEST 10 STEP A CHECKING FOR FAULT CODE 31 - CANISTER PURGE

SOLENOID CIRCUIT
1986 2.2L TURBO (BOOK NO. 81-699-6011) REVISED 9/86

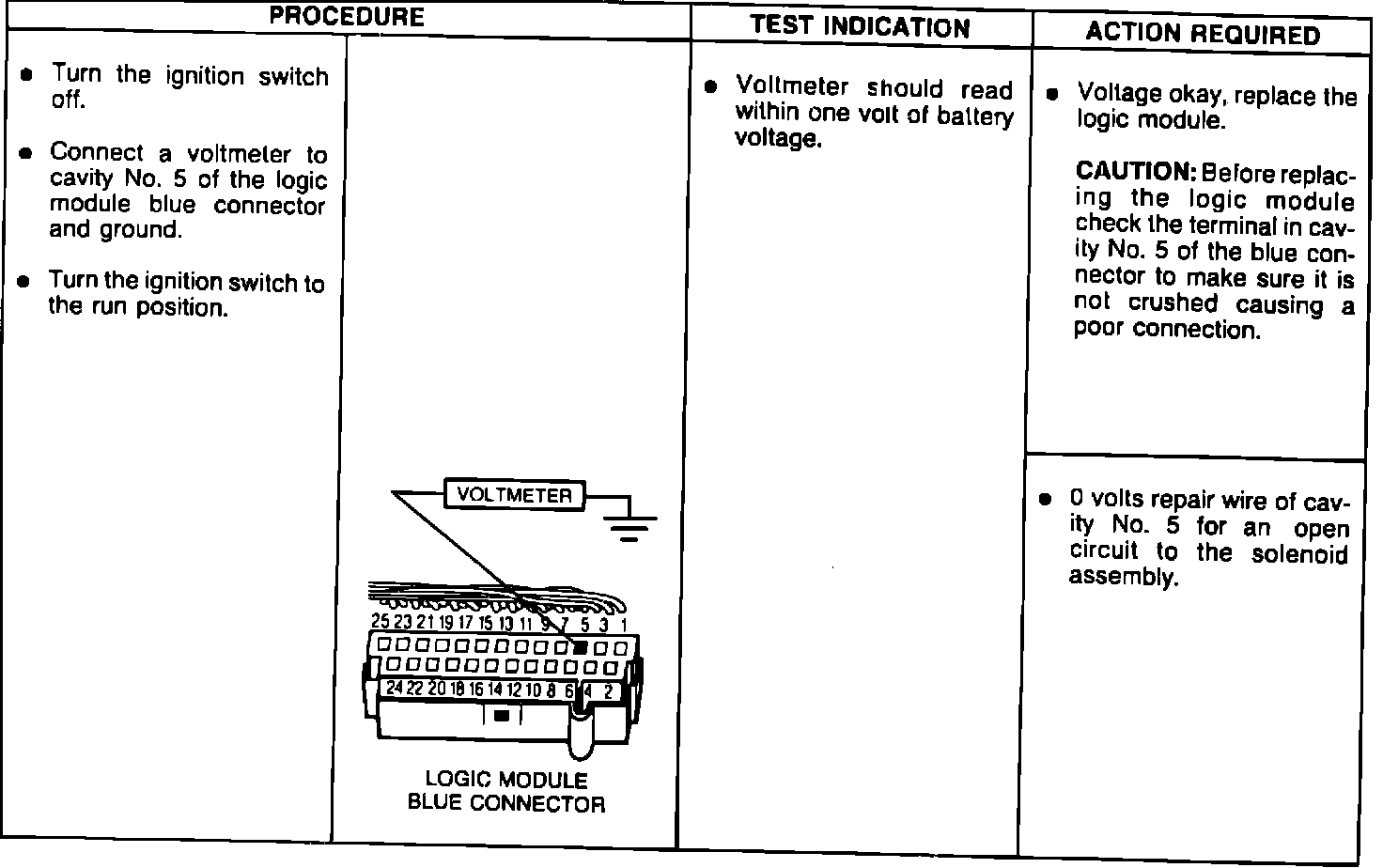

TEST 10 STEP B CHECKING THE CANISTER PURGE SOLENOID CONTROL WIRE FOR

AN OPEN CIRCUIT TO THE LOGIC MODULE

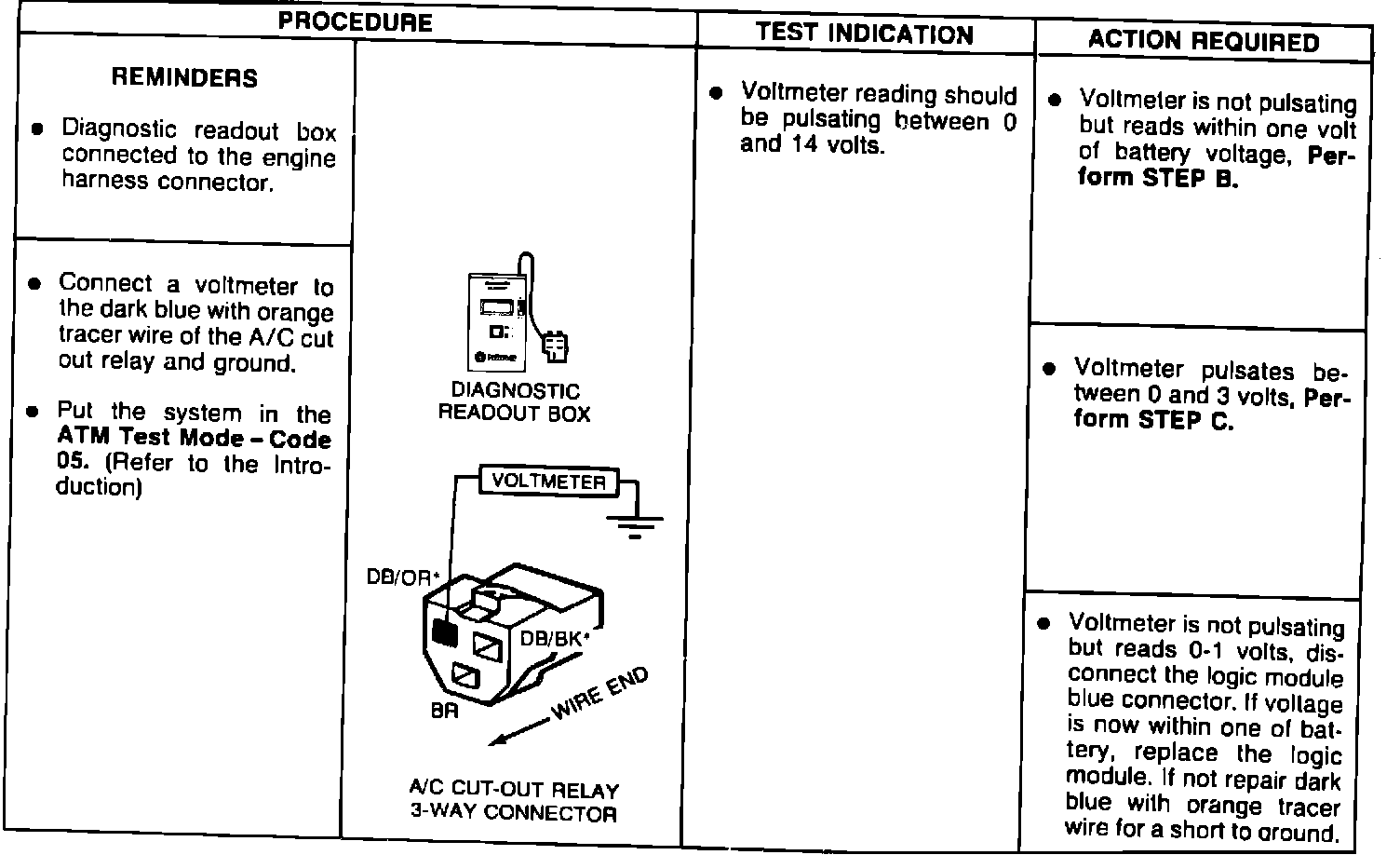

TEST 11 STEP A CHECKING FOR FAULT CODE 33 - A/C CUTOUT RELAY
1986 2.2 TURBO (BOOK NO 81-699-6011) REVISED 9/86



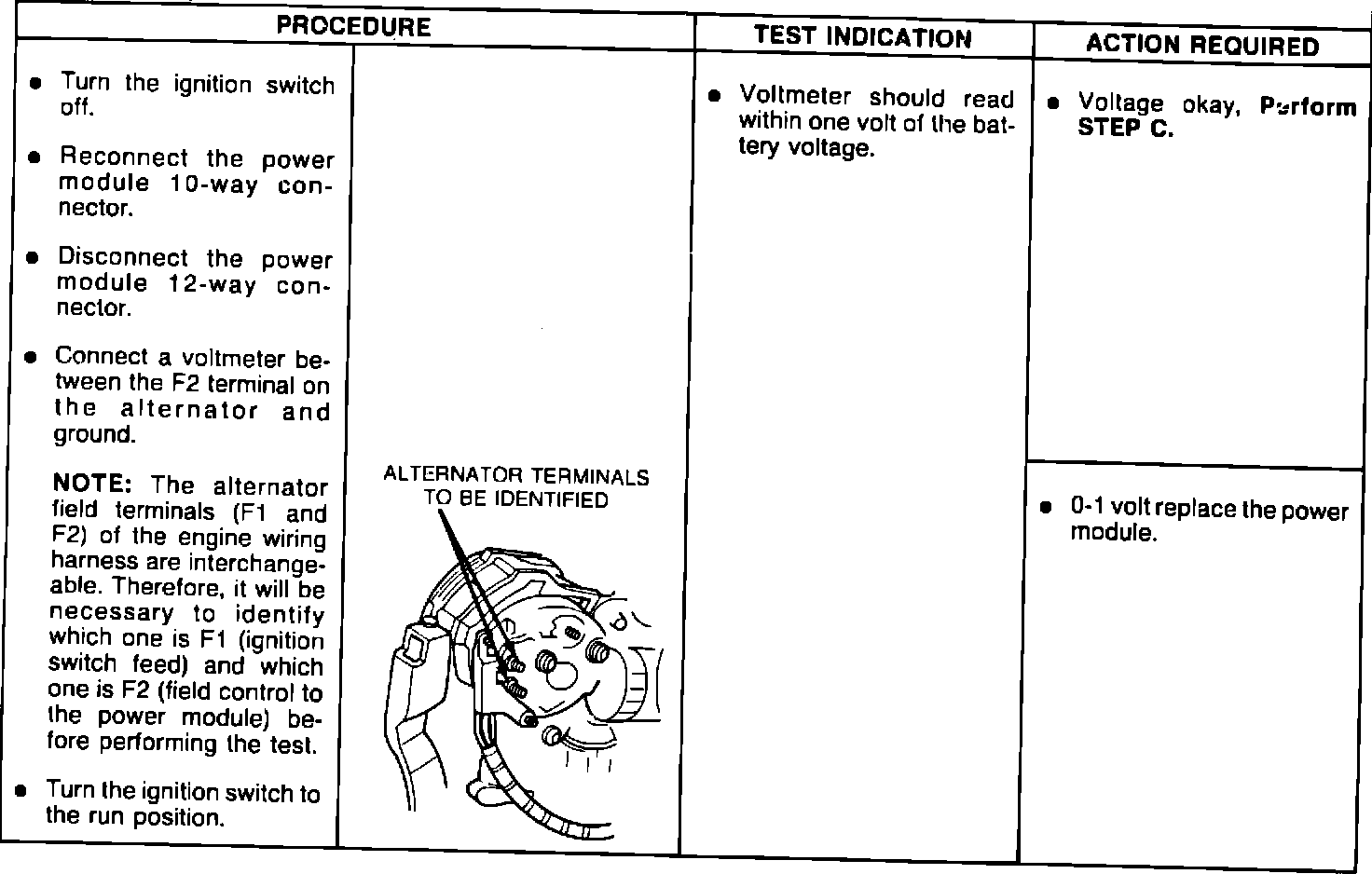

TEST 16 STEP B CHECKING THE ALTERNATOR FIELD CONTROL TO THE POWER
MODULE FOR A SHORT CIRCUIT

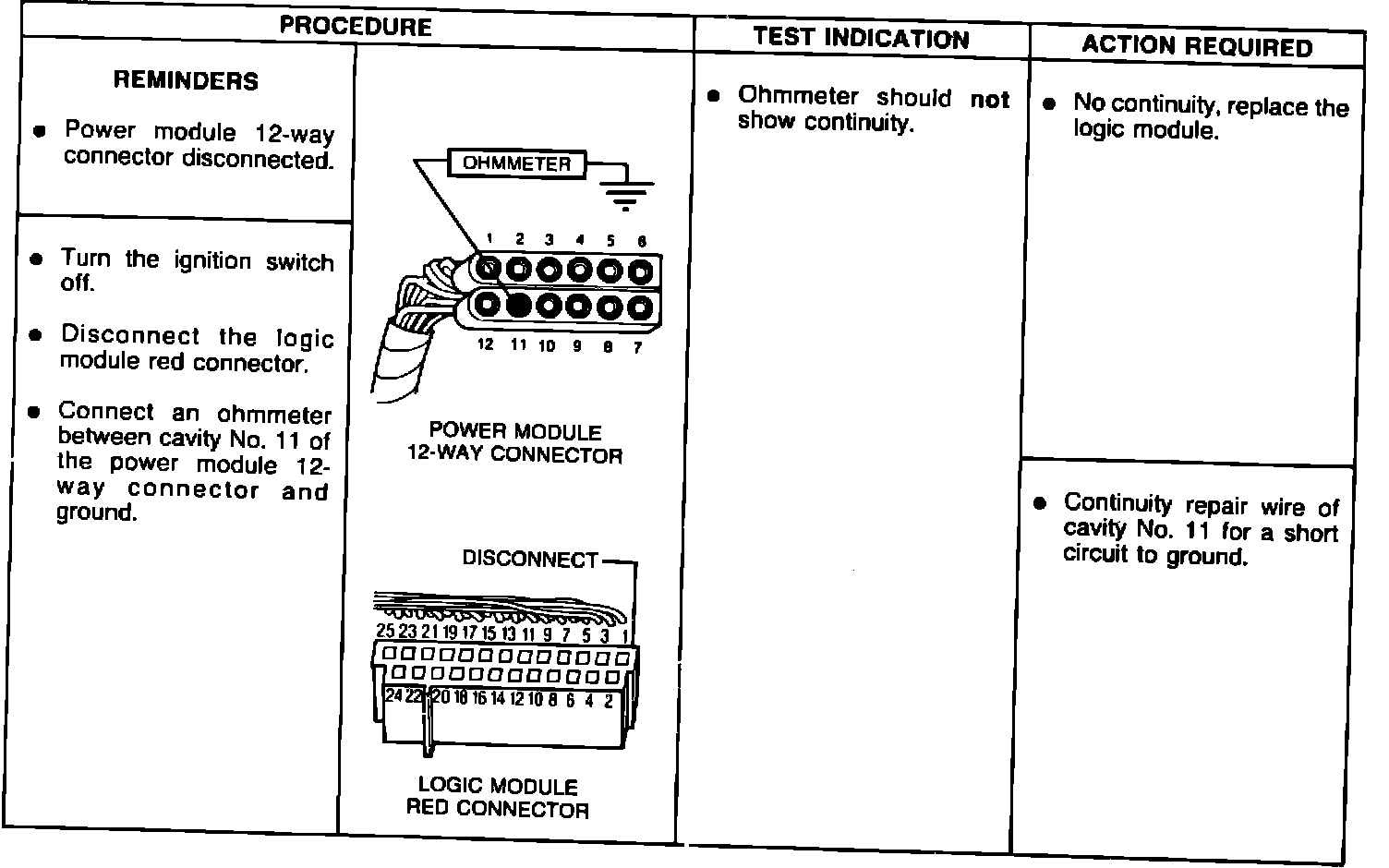

TEST 16 STEP C CHECKING THE ALTERNATOR FIELD CONTROL TO THE LOGIC
MODULE FOR A SHORT CIRCUIT
1986 2.2 TURBO (BOOK NO. 81-699-6011) REVISED 9/86



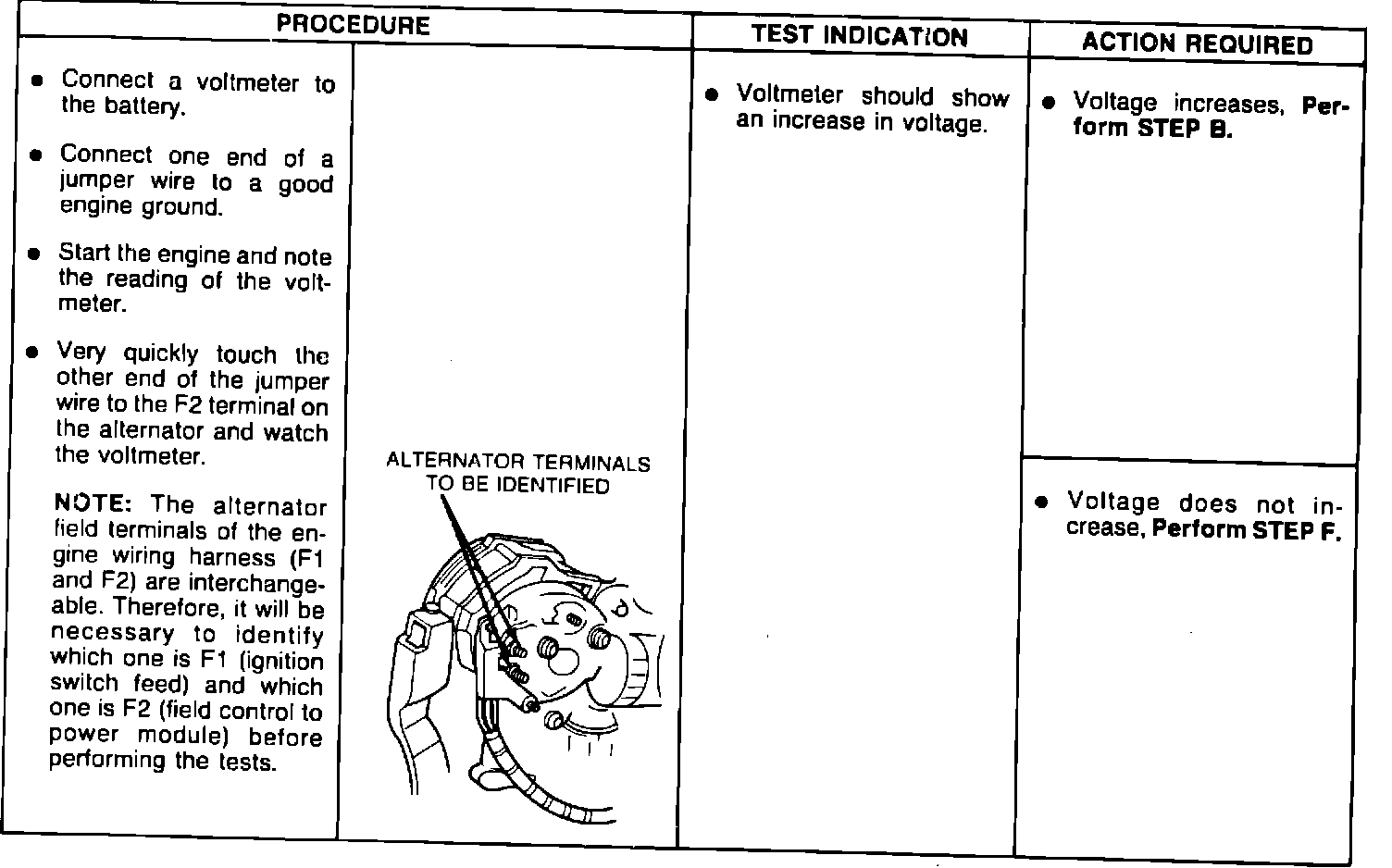

TEST 17 STEP A CHECKING FOR FAULT CODES 41 OR 41-47 ALTERNATOR FIELD
(CHARGING SYSTEM OUTPUT TOO LOW)



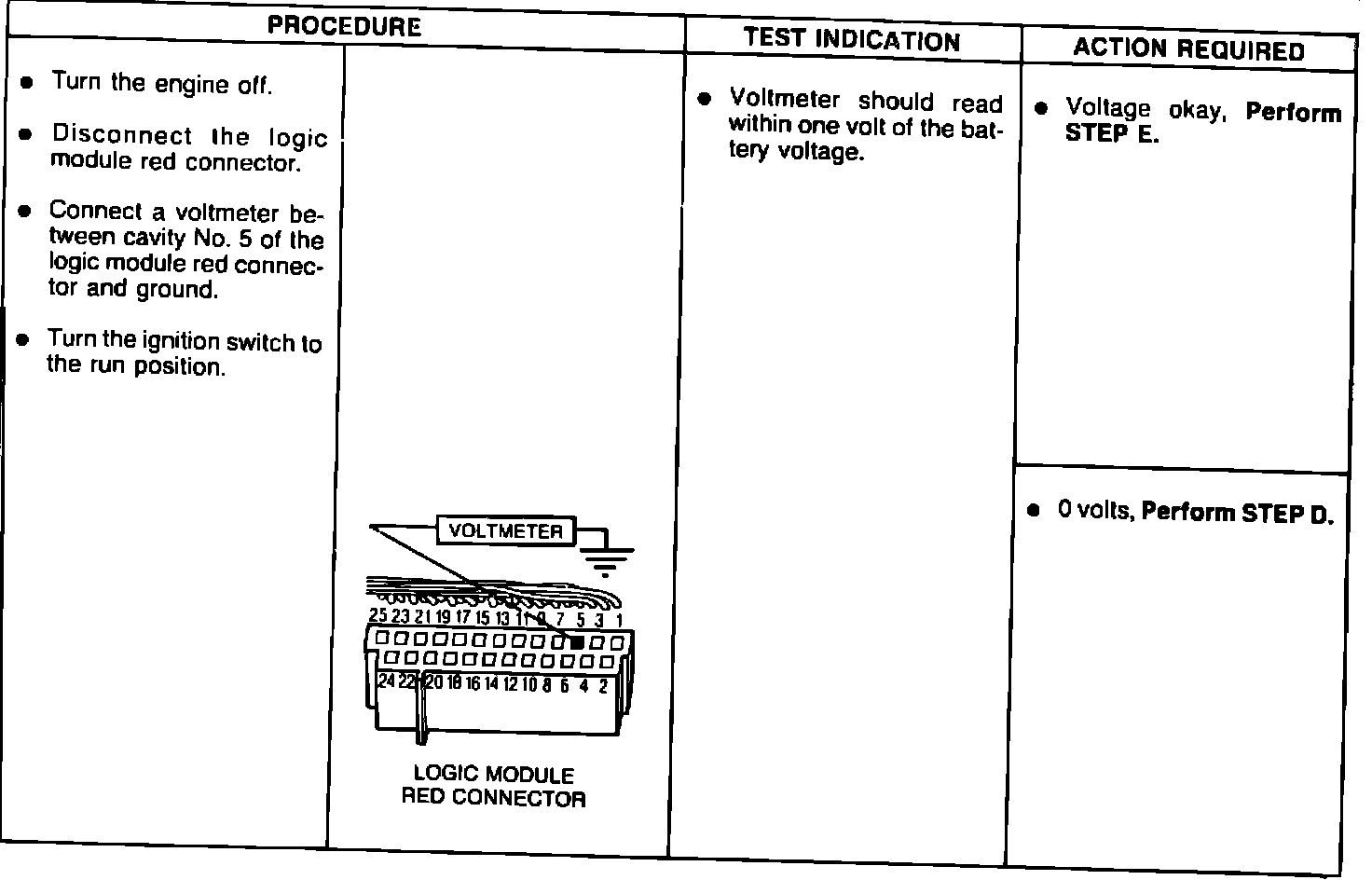

TEST 17 STEP B CHECKING CHARGING SYSTEM FIELD CONTROL CIRCUIT AT THE

LOGIC MODULE



TEST 17 STEP C CHECKING THE ALTERNATOR FIELD CONTROL WIRE TO THE POWER
MODULE FOR AN OPEN CIRCUIT



TEST 17 STEP D CHECKING ALTERNATOR FIELD CONTROL CIRCUIT OF THE
[1][2]POWER MODULE
1986 2.2 TURBO (BOOK NO. 81-699-6011) REVISED 9/86

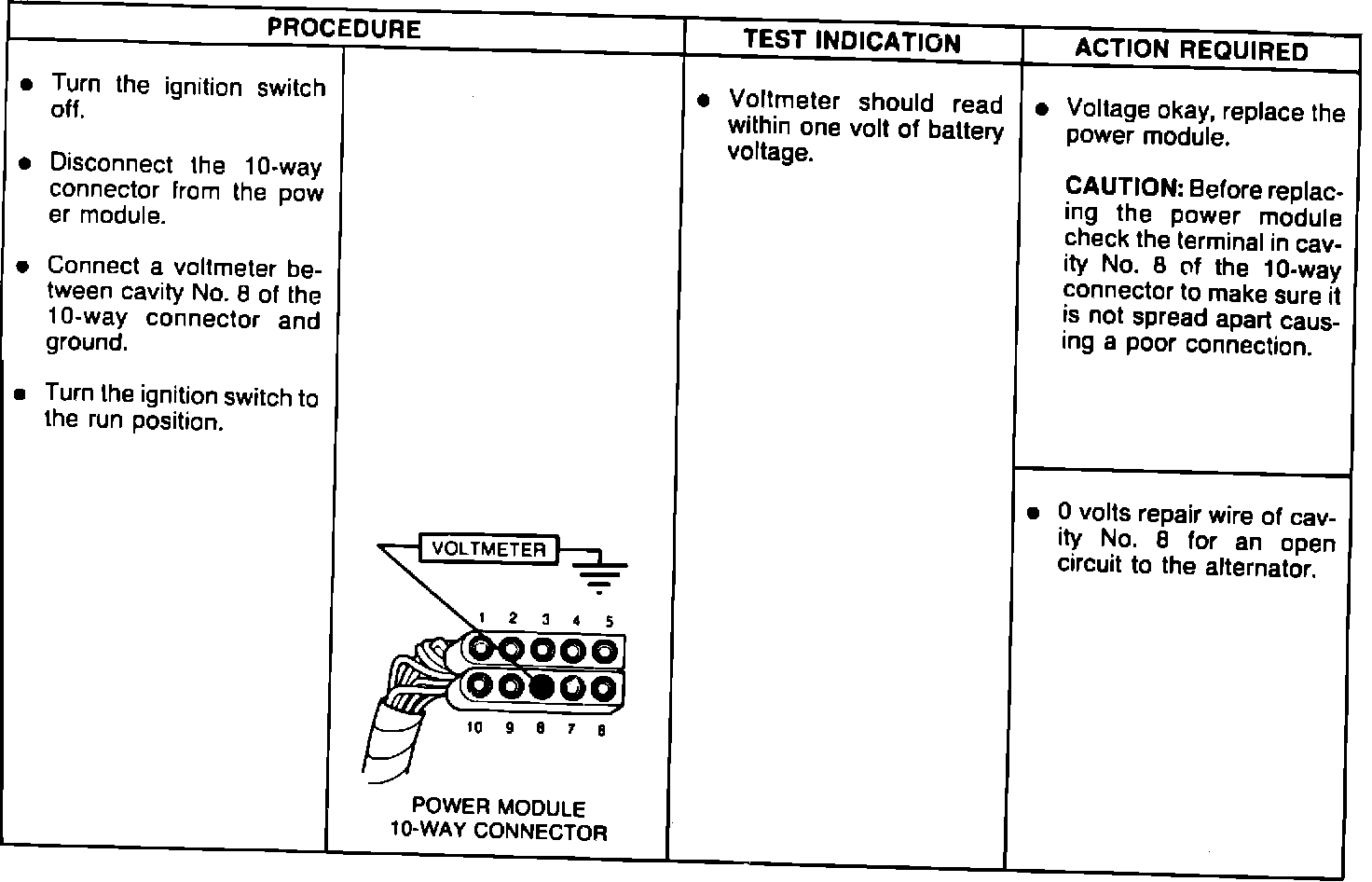

TEST 17 STEP E CHECKING THE ALTERNATOR FIELD CONTROL TO THE POWER
MODULE FOR AN OPEN CIRCUIT

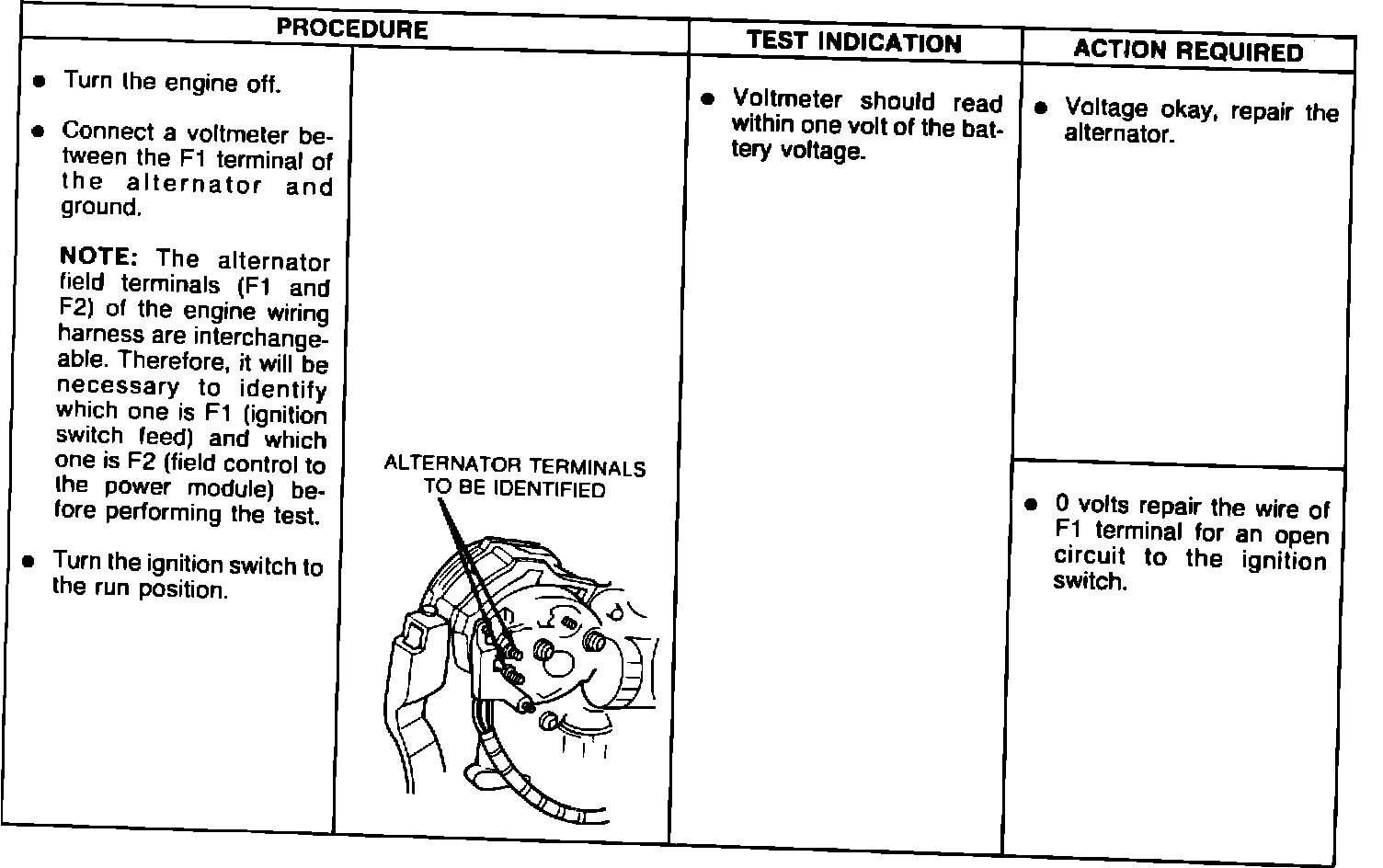

TEST 17 STEP F CHECKING FOR VOLTAGE TO ALTERNATOR FIELD CIRCUIT

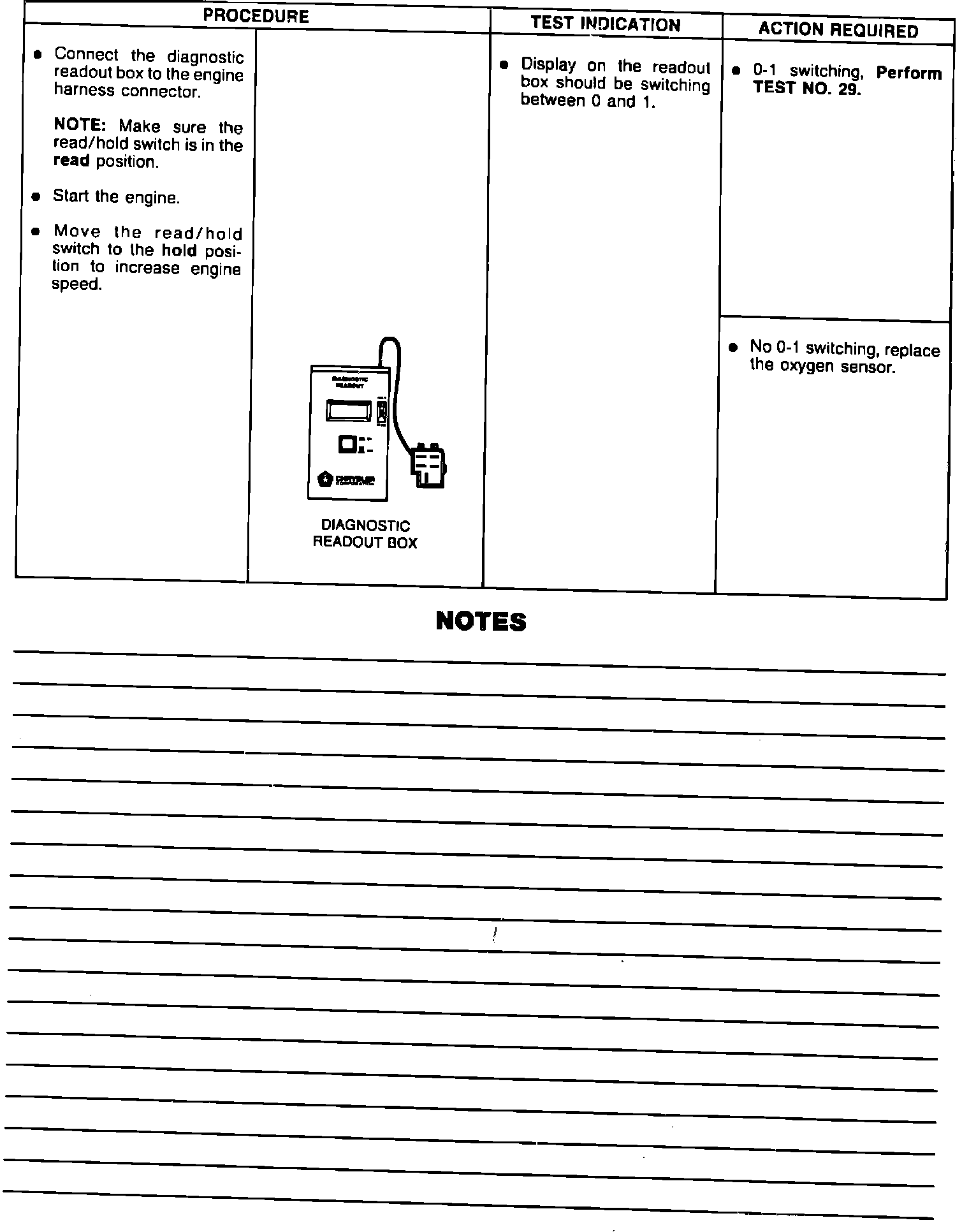

TEST 28 STEP A CHECKING THE OXYGEN SENSOR OPERATION
1986 2.2L TURBO (BOOK NO. 81-699-6011) REVISED 9/86



TEST NO. 29
