Repair Procedure
This procedure will eliminate the logic module mounted MAP sensor and install a MAP sensor in the engine compartment."K", "E", "G", "H" & "P" Body
1. Remove right side kick panel and passenger side carpeting away from dash panel.
2. Remove logic module and MAP sensor as an assembly.
3. Remove and discard from logic module, vacuum hose for MAP sensor line.
4. Remove and retain screws mounting MAP sensor.
5. Disconnect MAP sensor from logic module and discard sensor.
6. Connect wiring assembly, PN 4368706, to the logic module MAP sensor connector.
7. Install logic module cover, PN 5213618, enclosing MAP sensor connector and seating grommet of wiring assembly, PN 4368706, in the cutout in the side of the logic module.

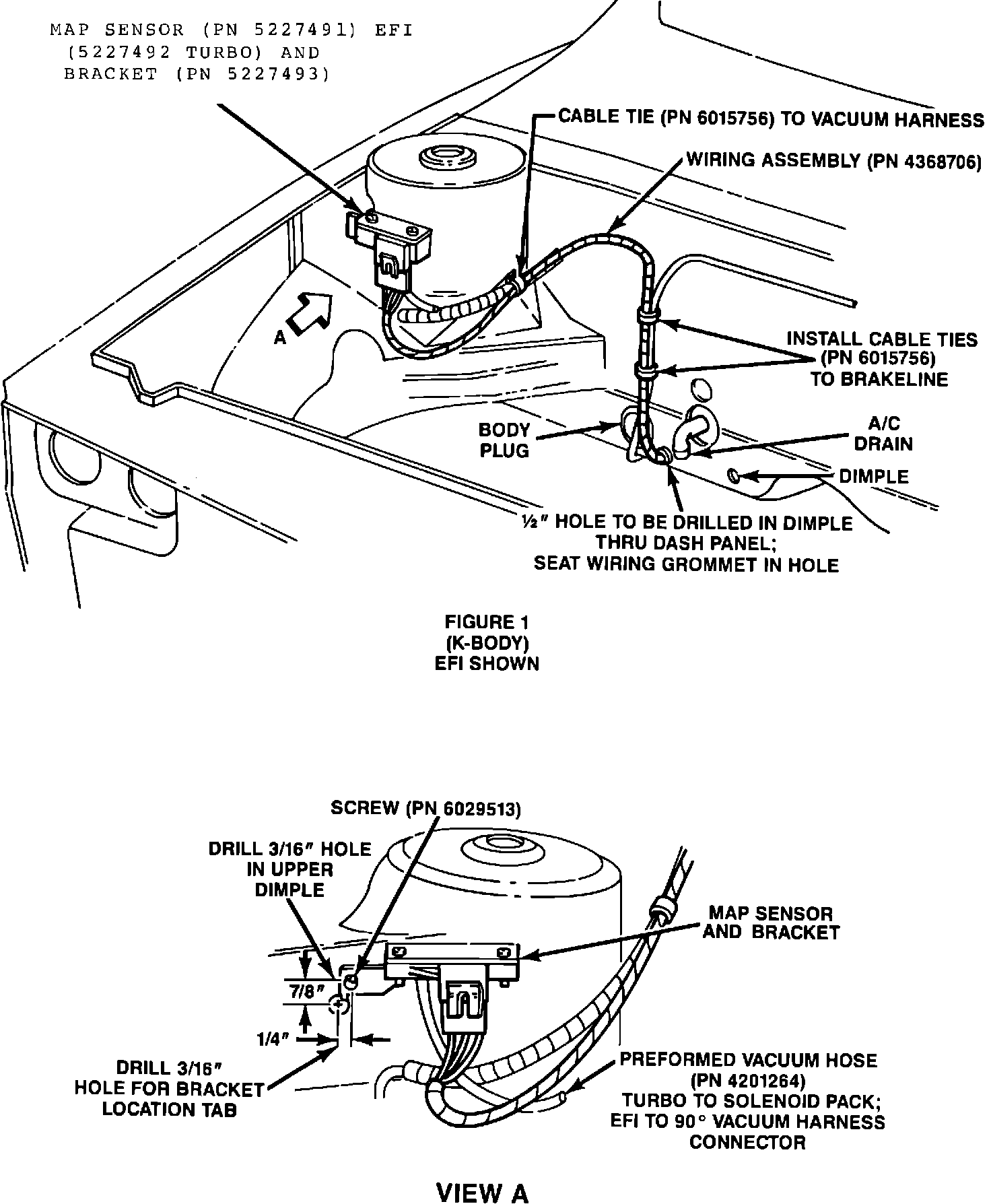

FIGURE 1 - (K-BODY) EFI SHOWN:
8. Pull carpeting down from dash panel on passenger side of vehicle.
Locate dimple on passenger compartment side of the dash panel, below air conditioning drain, and toward the passenger side of the body plug. Cut floor pad from bottom up to dimple. Drill a 1/4" pilot hole through this dimple. Then drill to a 1/2" hole. Make certain carpet is pulled away far enough so that it does not get damaged by the drill (Figure 1).
CAUTION: HOLE TO BE DRILLED IS IN CLOSE PROXIMITY TO BRAKE LINES ON THE ENGINE SIDE OF DASH PANEL AND HEATER BOX ON PASSENGER SIDE.
9. Locate upper dimple on the forward face of the passenger side shock tower. Drill a 3/16" hole in this dimple. Drill a 3/16" hole 7/8" below and 1/4" left of the first hole (Figure 1).
10. Attach supplied MAP sensor, PN 5227492 for Turbo or 5227491 for EFI, to bracket, PN 5227493, using supplied screws, PN 152791, and nuts, PN 9419784 (Figure 1).
11. Attach MAP sensor and bracket assembled in Step 10 to shock tower with supplied screw, PN 6029513. Screw attach bracket through hole drilled in dimple in Step 9. Location tab of bracket fits in lower hole drilled in Step 9. MAP sensor connections should be on the side facing the ground (Figure 1).
12. Install logic module.
13. Feed jumper wires through 1/2" hole from passenger compartment out to engine compartment. Seat grommet of wiring assembly, PN 4368706, in 1/2" hole in dash panel. Place wiring in passenger compartment under carpet pad.
14. Attach wiring assembly, PN 4358706, to brake line on dash panel with two cable ties, PN 6015756. Fasten wiring assembly with third cable tie to vacuum harness near passenger side shock tower (Figure 1).

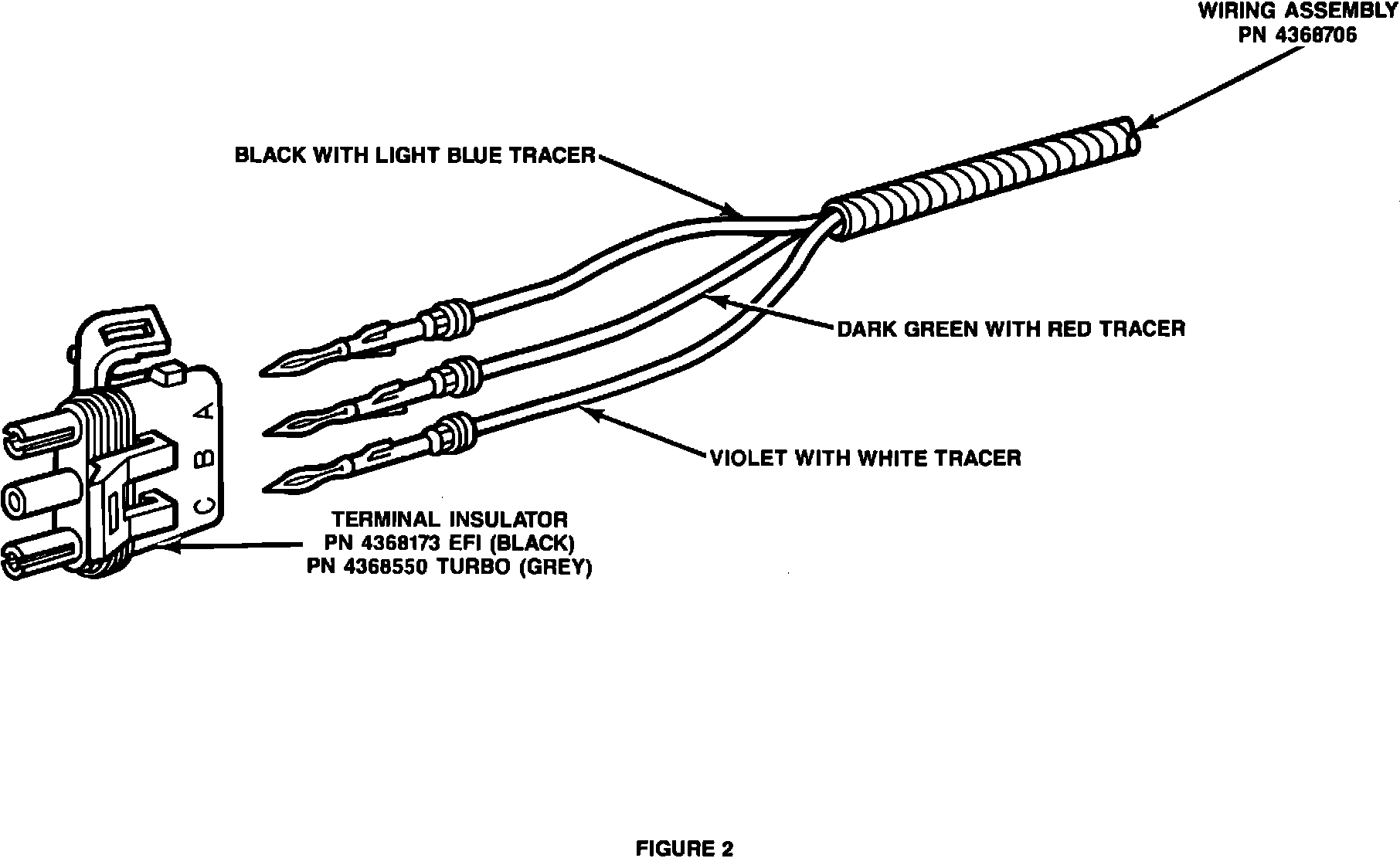

FIGURE 2:
15. Attach wiring assembly, PN 4368706, terminal ends to terminal insulator (grey), PN 4368550 for Turbo or black, PN 4368173 for EFI, as follows:
a. Black wire with light blue tracer to cavity "A" of terminal insulator.
b. Dark green with red tracer to cavity "B".
c. Violet with white tracer to cavity "C".
Close locking tab of terminal insulator (Figure 2).
16. Connect terminal insulator assembled in Step 15 to MAP sensor.
17. Connect flared end of formed vacuum hose, PN 4201264, to nipple of MAP sensor.
18. 2.2L & 2.5L Vehicles With EFI
a. Disconnect original MAP sensor vacuum signal line at 90~ connector located near timing belt cover.
b. Cut 1" off of formed vacuum hose, PN 4201264, and connect to 90~ connector of MAP sensor signal line. Formed vacuum hose should be installed to have a downward slope from the MAP sensor to the 90~ connector.
c. Use 3/16" vacuum hose connector, PN 4104998, and 3/16" rubber cap, PN 3580171, to plug old MAP sensor line.

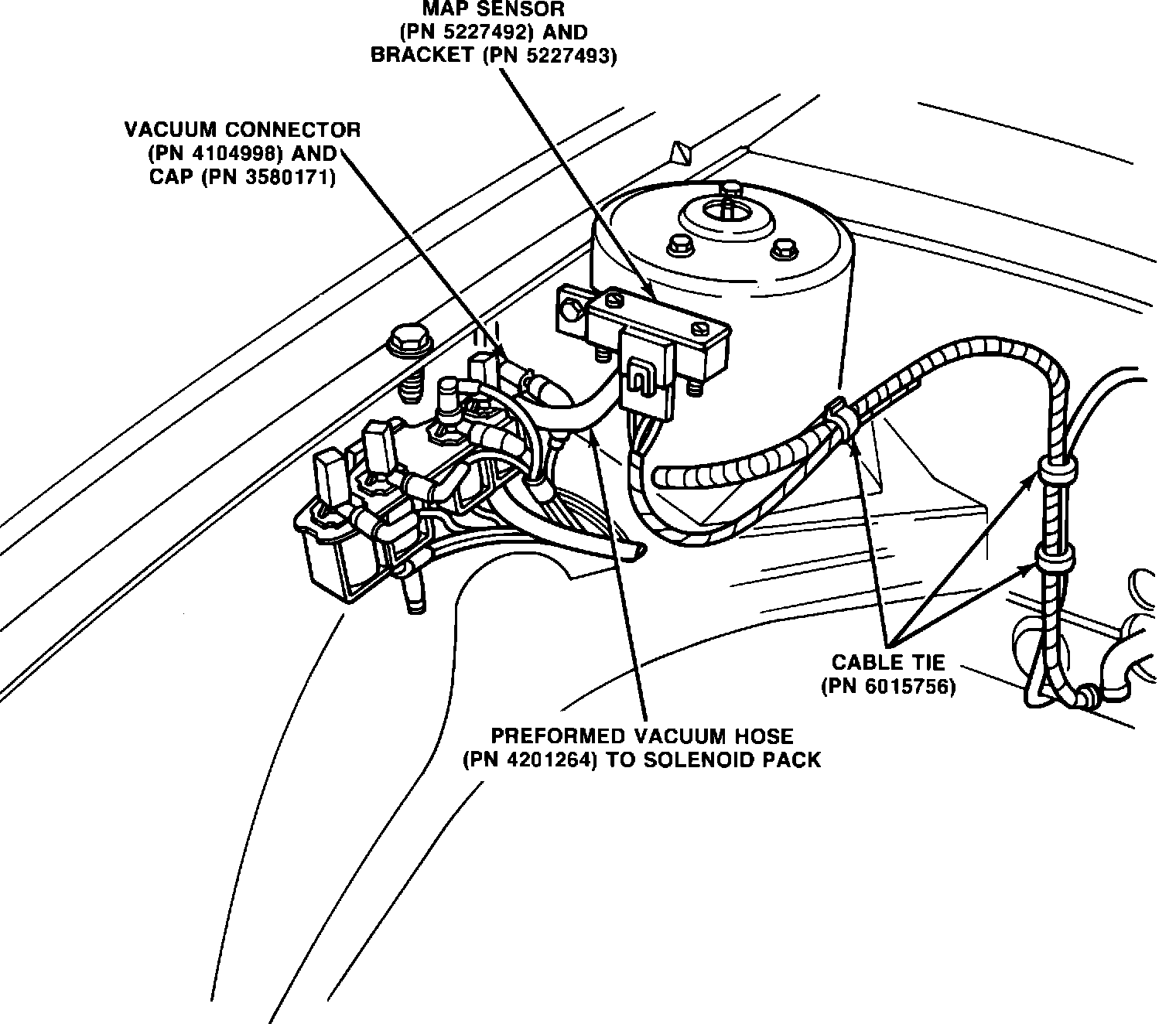

FIGURE 4 - (K-BODY) TURBO SHOWN:
2.2L Turbo Vehicles
a. Disconnect upper 90~ connect from solenoid pack at the solenoid nearest passenger side shock tower (Figure 4).
b. Use 3/16" vacuum hose connector, PN 4104998, and 3/16" rubber cap, PN 3580171, to plug 90~ connector removed in Step a.
c. Cut 1" off of formed vacuum hose, PN 4201264, and connect to solenoid nipple. This MAP sensor vacuum line should not have any kinks and should be installed to have a downward slope from the MAP sensor to the solenoid pack.
d. Disconnect the right angle vacuum connector from the lower nipple of the solenoid nearest the passenger side shock tower.
e. Insert the vacuum connector, PN 4104998, into the right angle vacuum connector disconnected in Step d. and attach the vacuum cap, PN 3580171, to the other end of vacuum connector.
FIGURE 4 - (K-BODY) TURBO SHOWN:
f. Locate the 3/16" hose which connects the intake manifold vacuum source with the fuel pressure regulator. Remove 3/4" from this hose at its mid-point and insert "Y" connector, PN 4275571.
g. Using 3/16" hose (available in bulk 50' roll, PN 4105167), connect the lower nipple of the solenoid nearest the passenger side shock tower to the "Y" connector installed in Step f. Route this hose on top of the convolute tubing which sits next to the cylinder head cover. This hose should be long enough to reach, but not so long as to droop or kink (Figure 4).
19. Reinstall passenger side carpeting and right side kick panel.
FIGURE 5:
20. Type Authorized Modification Label, PN 4275086, as shown in Figure 5, and apply near or next to original VECI label.
21. Wipe existing hose routing label clean. Install appropriate label supplied in package over the original label.
"L" Body Turbo
1. Remove right side kick panel and passenger side carpeting away from dash panel.
2. Remove logic module and MAP sensor as an assembly.
3. Remove and discard from logic module, vacuum hose for MAP sensor line.
4. Remove and retain screws mounting MAP sensor.
5. Disconnect MAP sensor from logic module and discard sensor.
6. Connect wiring assembly, PN 4368706, to the logic module MAP sensor connector.
7. Install logic module cover, PN 5213618, enclosing MAP sensor connector and seating grommet of wiring assembly, PN 4368706, in the cutout in the side of the logic module.

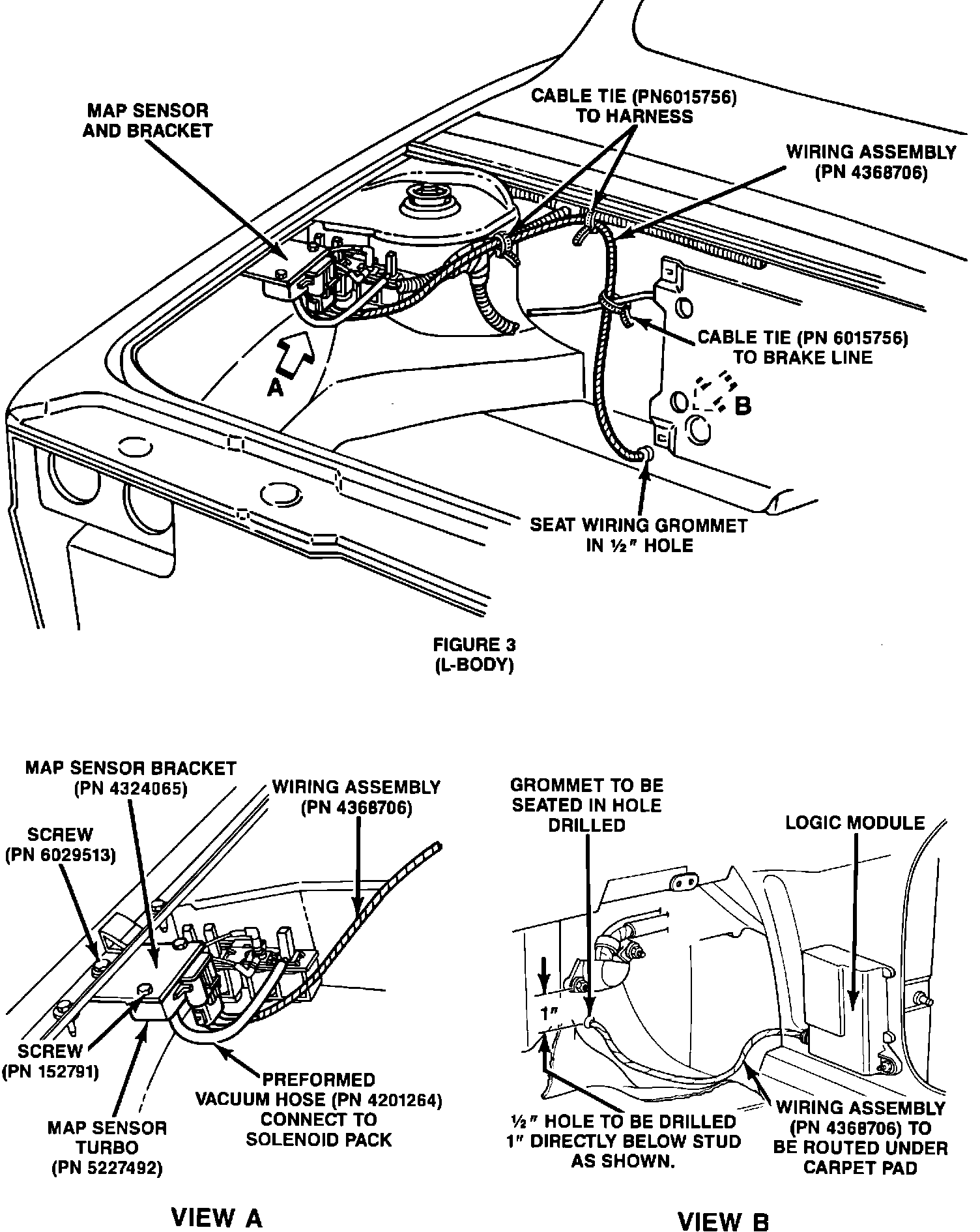

FIGURE 3 - (L-BODY):
8. From the passenger compartment, locate where the logic module wiring harness passes through the dash panel. Locate plastic kick plate for the logic module wiring harness on the dash panel. Drill a 1/4" pilot hole 1" below the left side attachment screw of the plastic kick plate. Then drill to a 1/2" hole (Figure 3).
9. Attach supplied MAP sensor, PN 5227492, to bracket, PN 4324065, onto the side marked "Shelby/GLH" using supplied screws, PN 152791, and nuts, PN 9419784 (Figure 3).
10. Install MAP sensor bracket between inner and outer fender on passenger side. Secure with supplied screw, PN 6029513 (Figure 3).
11. Install logic module.
12. Cut floor pad from bottom to the 1/2" hole in dash panel drilled in Step 8.
13. Feed jumper wires through 1/2" hole from passenger compartment out to engine compartment. Seat grommet of wiring assembly, PN 4368706, in 1/2" hole in dash panel. Place wiring in passenger compartment under carpet pad.
14. Fasten wiring assembly with cable ties, PN 6015756. Fasten with one cable tie to brake line on dash panel, with second cable tie to underhood harness in convolute on dash panel and with last cable tie to underhood harness near shock tower (Figure 3).
FIGURE 2:
15. Attach wiring assembly, PN 4368706, terminal ends to terminal insulator (grey), PN 4368550 for turbo as follows (Figure 2).
a. Black wire with light blue tracer to cavity "A" of terminal insulator.
b. Dark green with red tracer to cavity "B".
c. Violet with white tracer to cavity "C".
16. Connect terminal insulator assembled in Step 15 to MAP sensor.
17. Connect flared end of formed vacuum hose, PN 4201264, to nipple of MAP sensor.
18. Disconnect upper MAP sensor vacuum signal line at 90~ connector from solenoid pack at the solenoid nearest the center of vehicle.
19. Connect formed vacuum hose from MAP sensor to solenoid nipple. This MAP sensor vacuum line should not have any kinks and should be installed to have a downward slope from MAP sensor to the solenoid pack.
20. Use 3/16" vacuum hose connector, PN 4104998, and 3/16" rubber cap, PN 3580171, to plug old MAP sensor vacuum line disconnected in Step 18.
21. Replace passenger side carpeting and right side kick panel.
FIGURE 5:
22. Type Authorized Modification Label, PN 4275086, as shown in Figure 5 and apply near or next to original VECI label.
23. Wipe existing hose routing label clean. Install appropriate label supplied in package over the original label.
POLICY: Reimbursable within the provisions of the warranty
TIME ALLOWANCE:
Labor Operation No. 08-14-15-90 0.8 Hrs.
FAILURE CODE: AM - Authorized Modification
