Dome Lamps

Fig. 22 Courtesy Lamps Wiring Circuit (Part 1 of 2). LeBaron & 600 Convertible Model:

Fig. 22 Courtesy Lamps Wiring Circuit (Part 2 of 2). LeBaron & 600 Convertible Model:

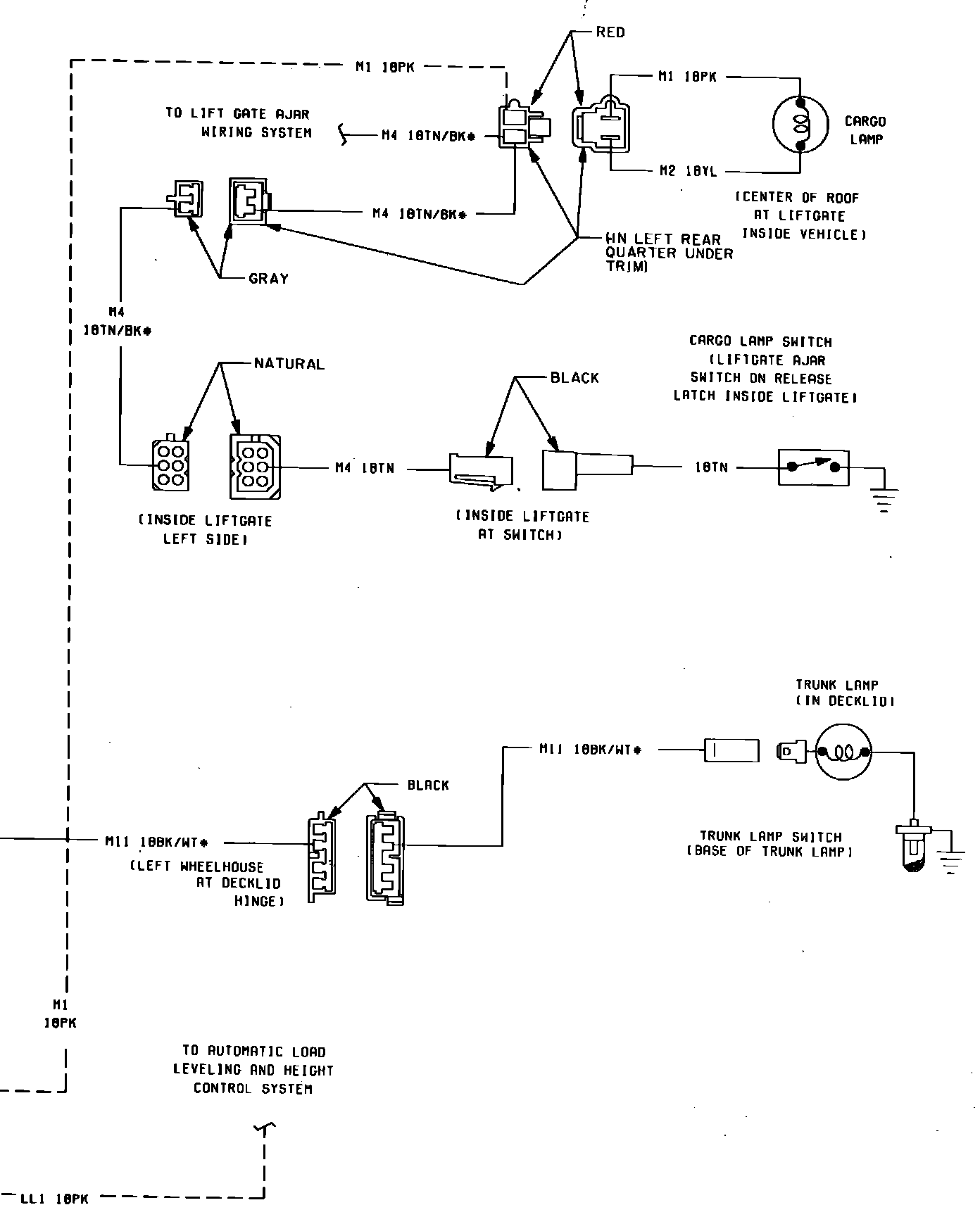

Fig. 24 Courtesy & Dome Lamps Wiring Circuit (Part 1 of 2). Caravelle, LeBaron & 600 Less Convertible & Town & Country:

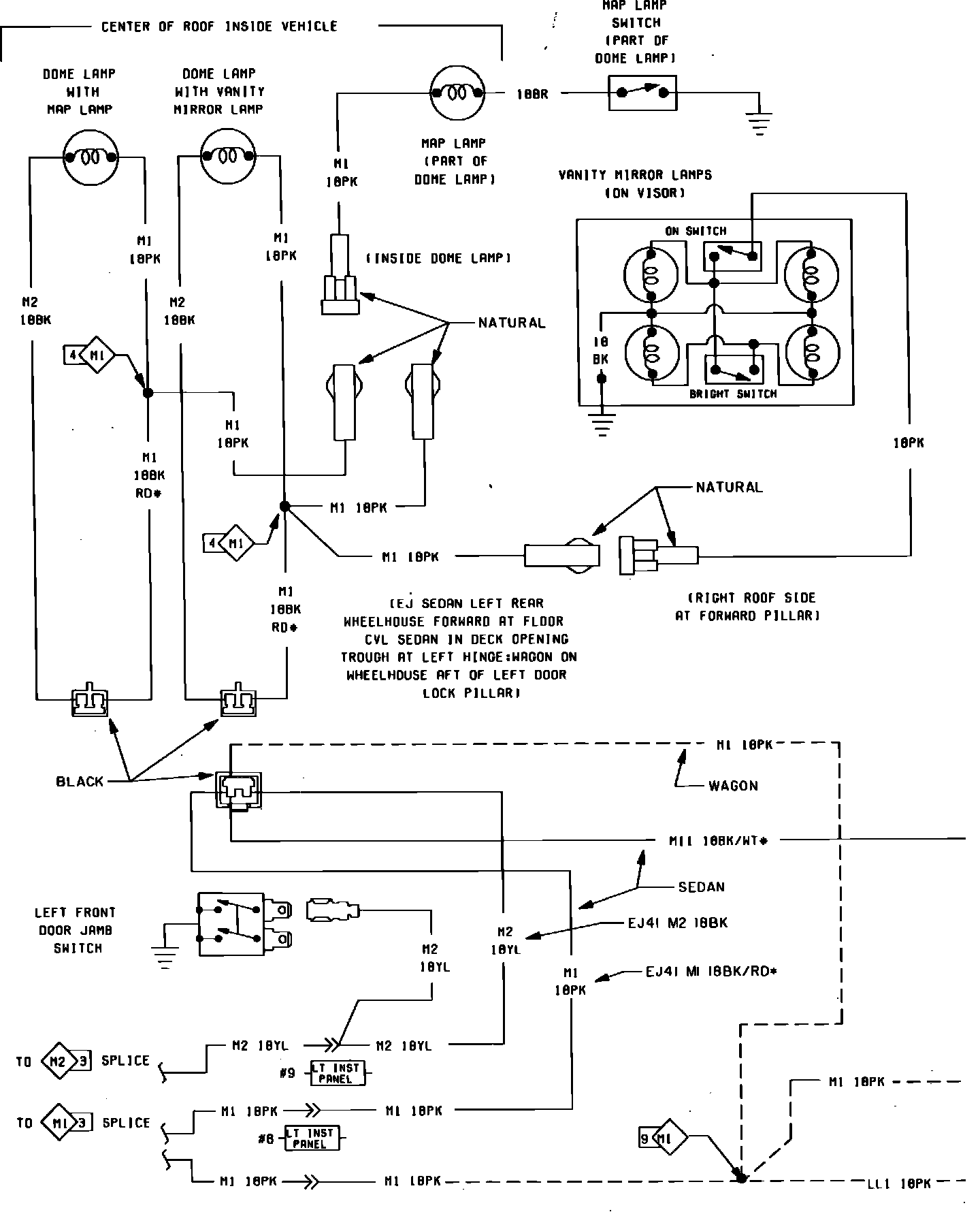

Fig. 24 Courtesy & Dome Lamps Wiring Circuit (Part 1 of 2). Caravelle, LeBaron & 600 Less Convertible & Town & Country:
