Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Relays and Modules - Instrument Panel >> Audible Warning Device Control Module >> Diagrams

Audible Warning Device Control Module: Diagrams

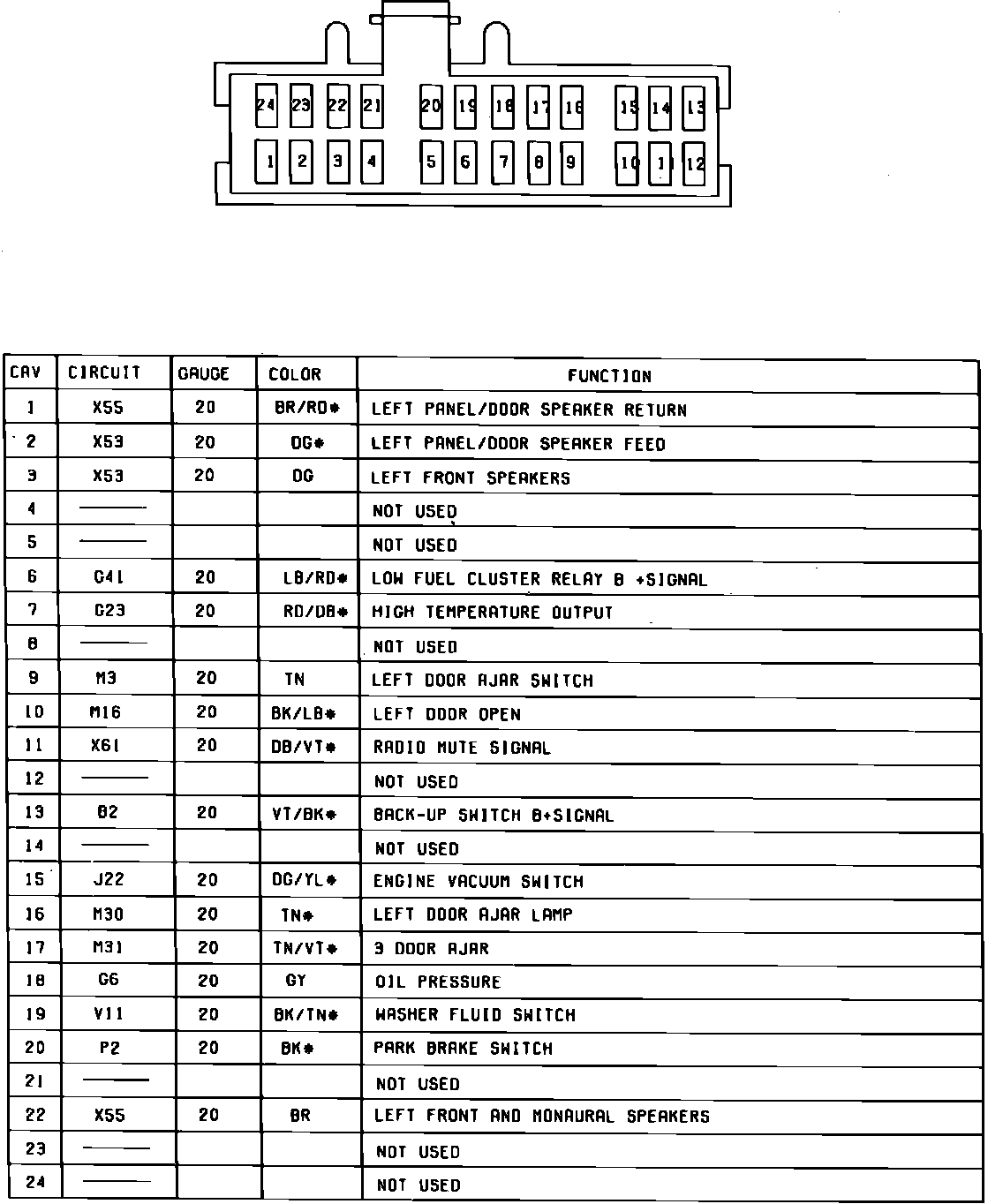

Fig. 8 Electronic Voice Alert System Connector:
