Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Warning Lamp Module

Warning Lamp Module

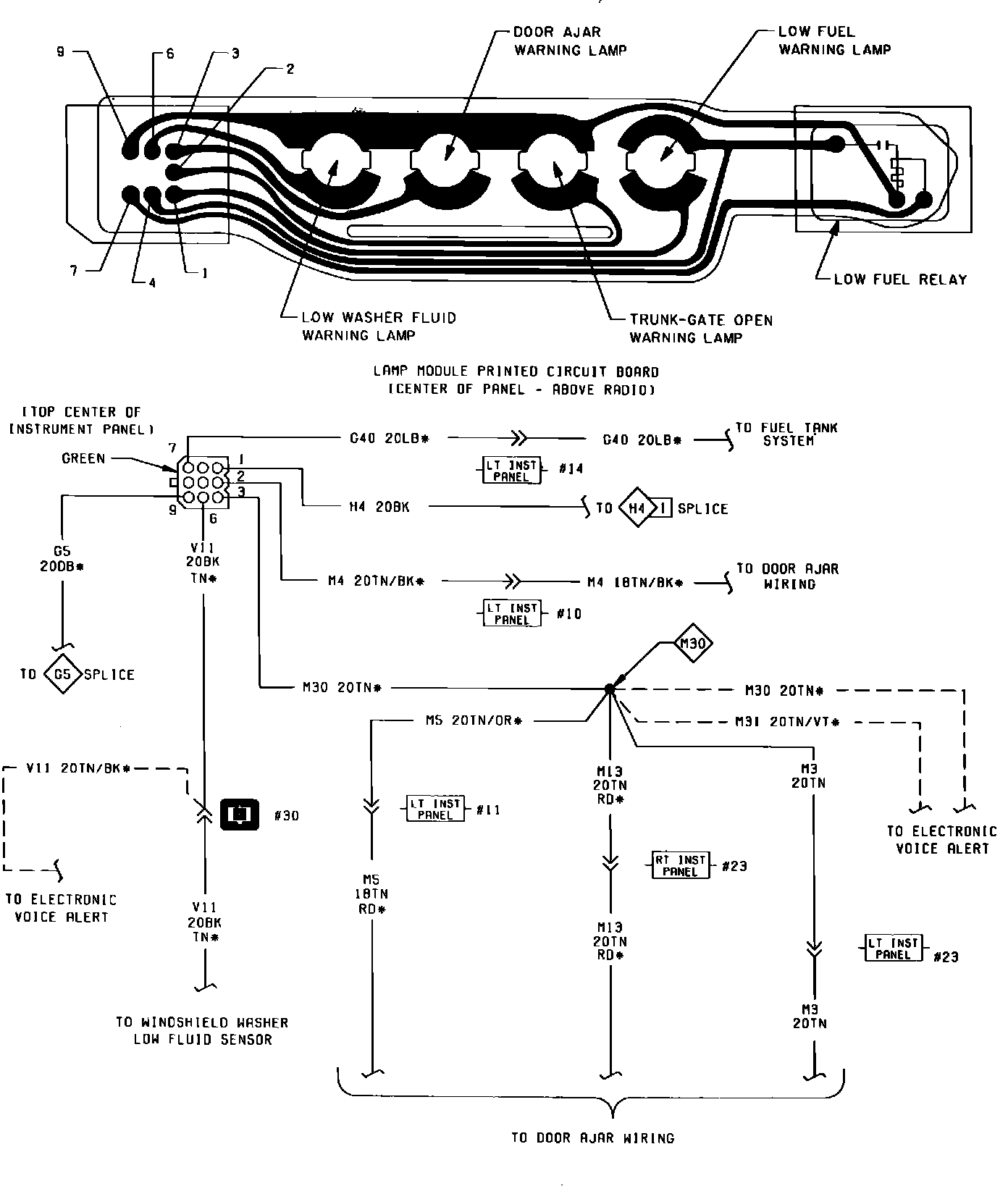

Fig. 75 Warning Lamp Module System Wiring Circuit:
