Cylinder Head Bolt Removal Sequence

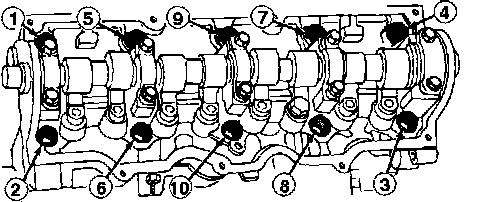

Fig. 30 Cylinder head bolt removal sequence:






When removing cylinder head, remove cylinder head bolts in proper sequence, Fig. 30.
