Connecting Rod: Service and Repair

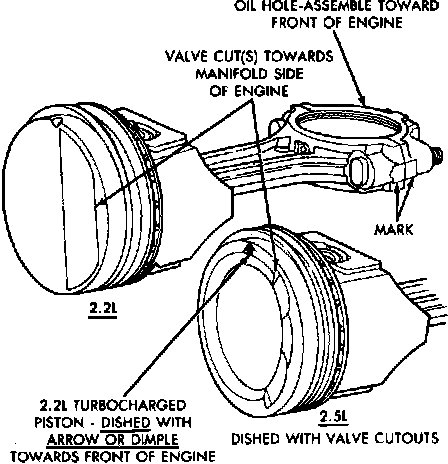

Fig. 34 Piston & connecting rod assembly. 1986---88:

1986 - 88
When installing piston and rod assembly, valve cut must face toward manifold side of engine, Fig. 34. Turbocharged engine pistons will have an arrow or dimple toward front of engine. Oil hole on connecting rod must face timing belt side of engine.

Connecting rod clearance should be 0.005 - 0.013 inch.
