Automatic Temperature Control (ATC)

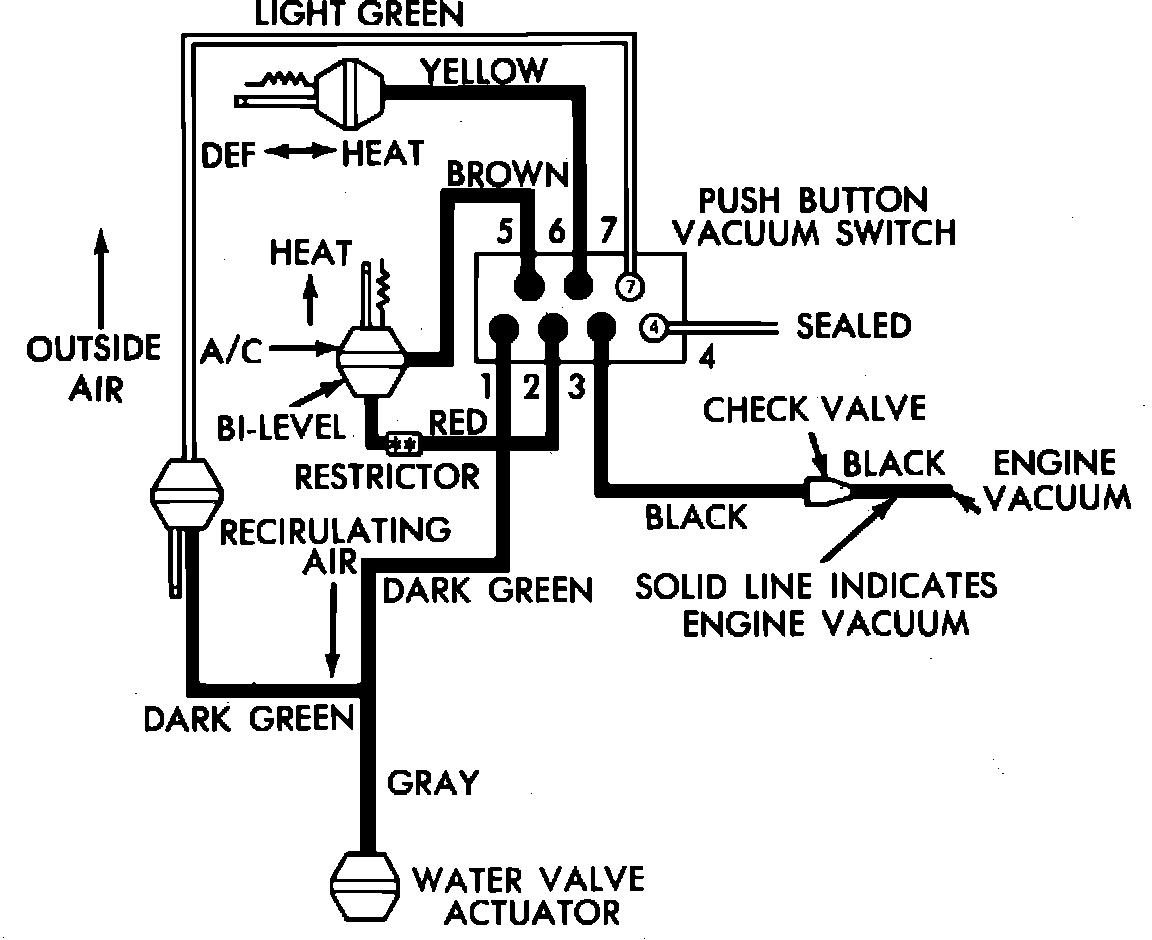

Frt Wheel Drive Except Horizon & Omni Air Conditioning & Heating Vacuum Hose Routing:
