Chrysler
>>
1986
>>
Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
Emission Control Systems

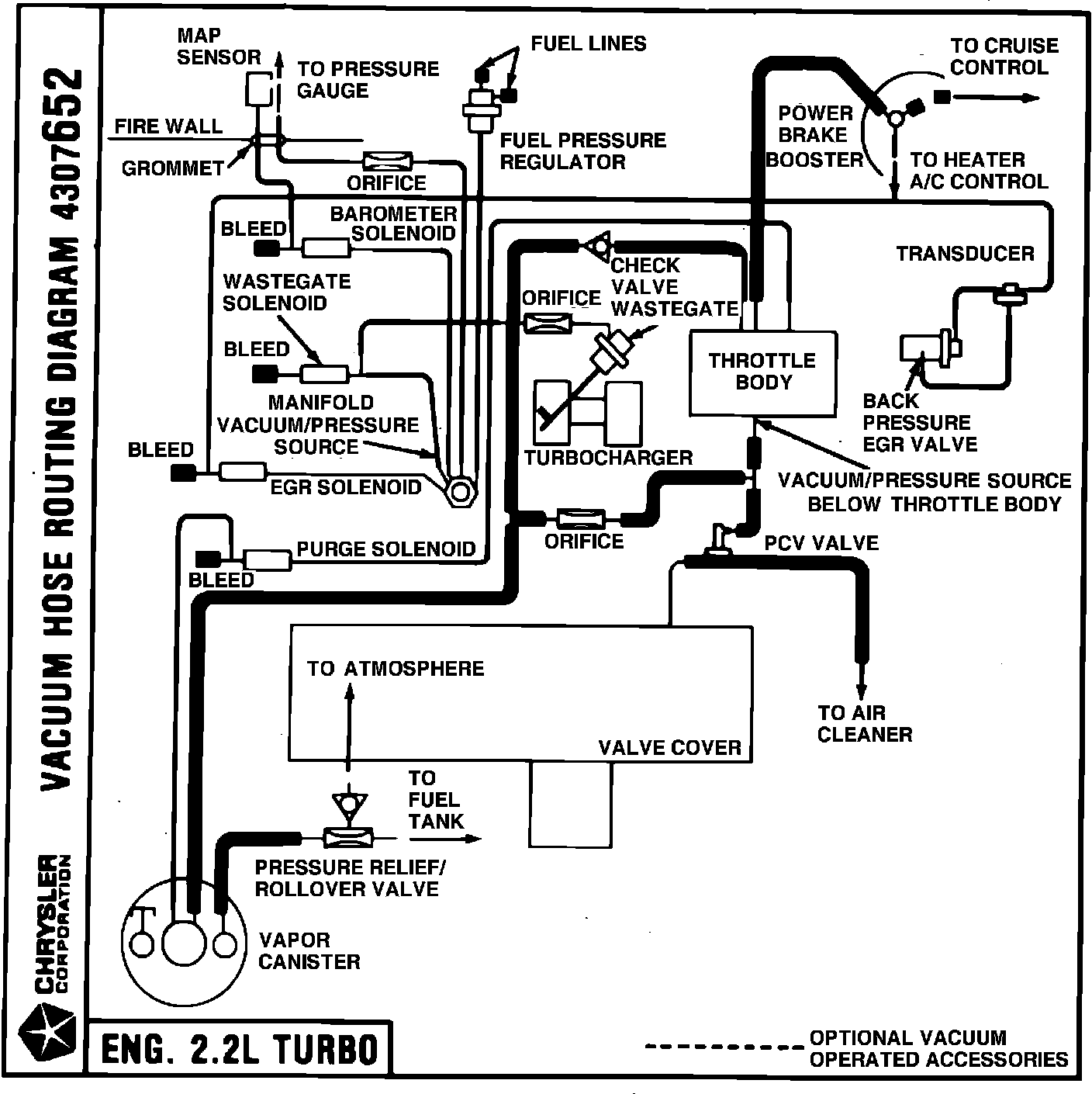

Fig. 5 Vacuum Hose Routing. 1986 4-135/2.2L, Turbo:
