Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Splices >> Engine Splices

Engine Splices

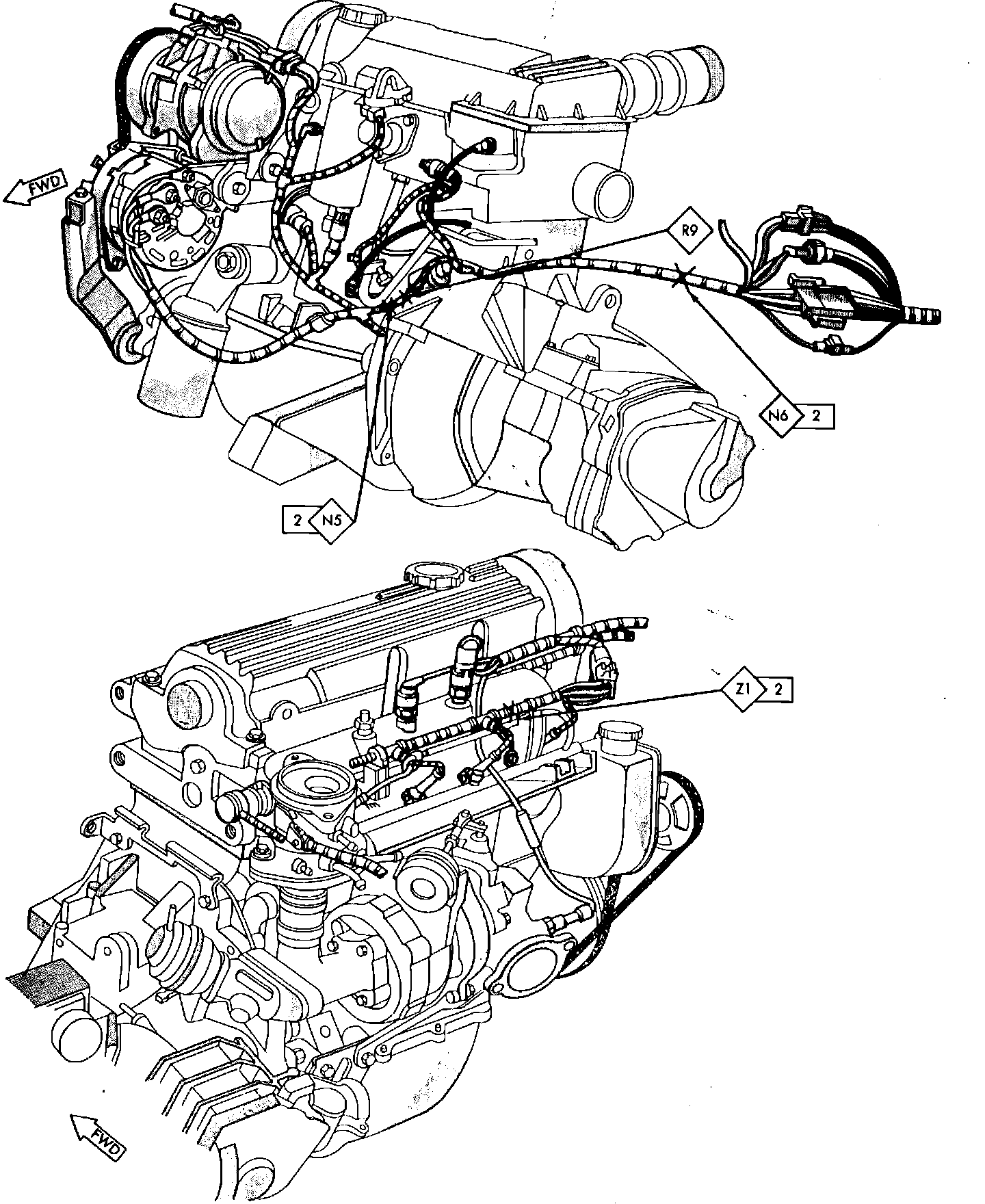

Fig. 90 Splice Location (Engine). 2.2L & 2.5L W/EFI:

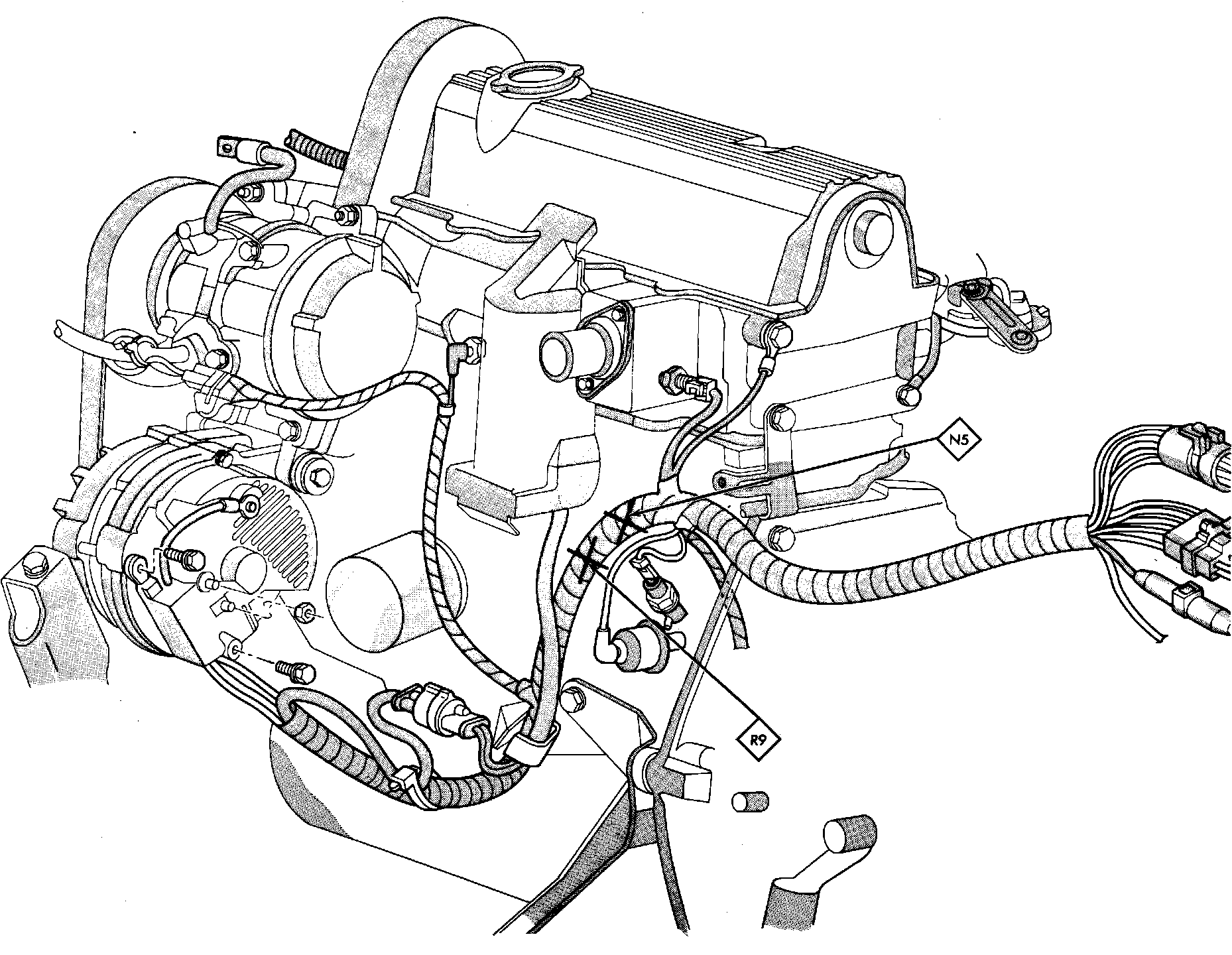

Fig. 91 Splice Location (Engine). 2.2L Turbocharger Engine:
