Engine Compartment Splices

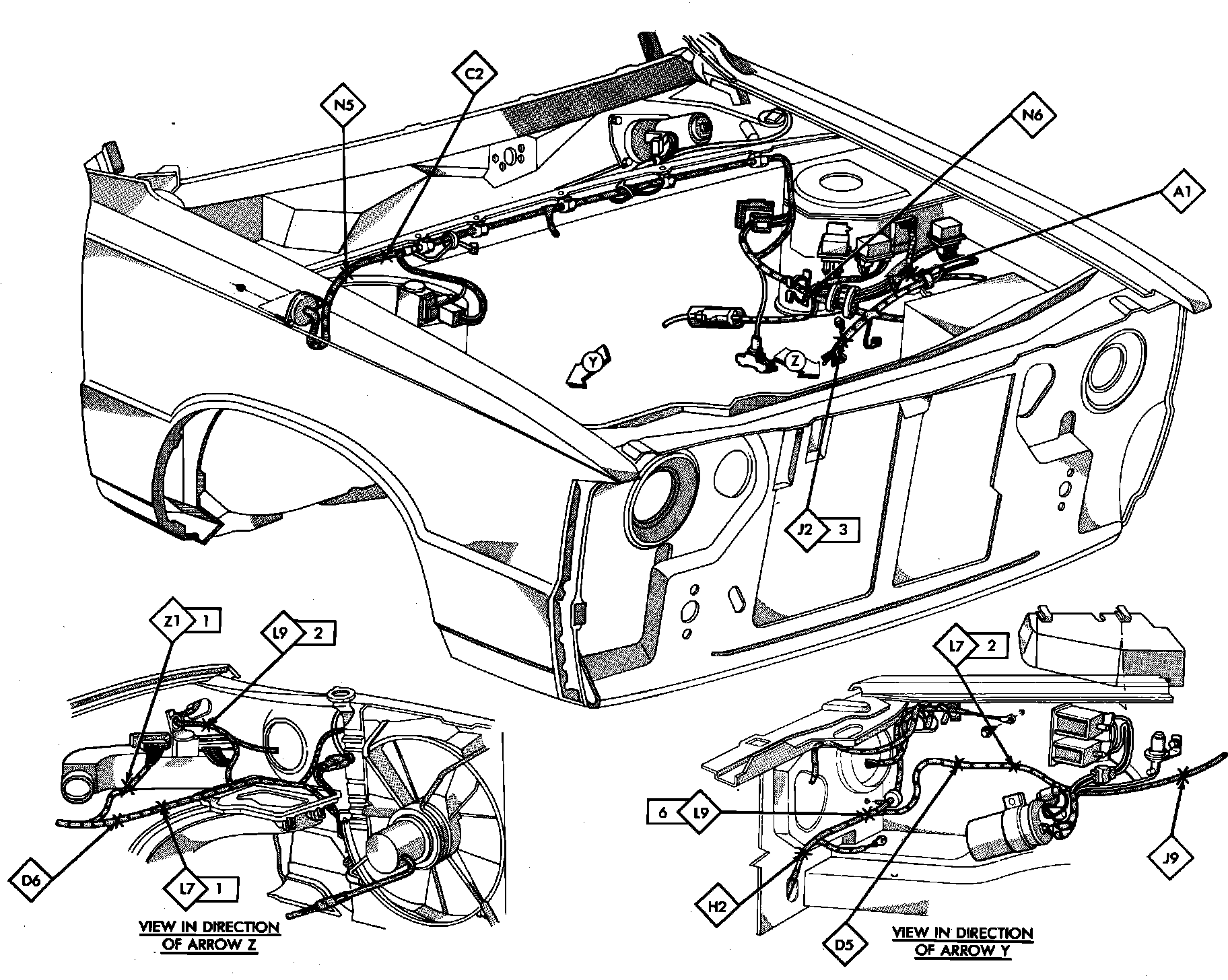

Fig. 89 Splice Location (Engine Compartment). Models W/2.2L W/EFI Or Turbocharger Engine:
