Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Wiring Diagrams >> Wiper and Washer System

Wiper and Washer System

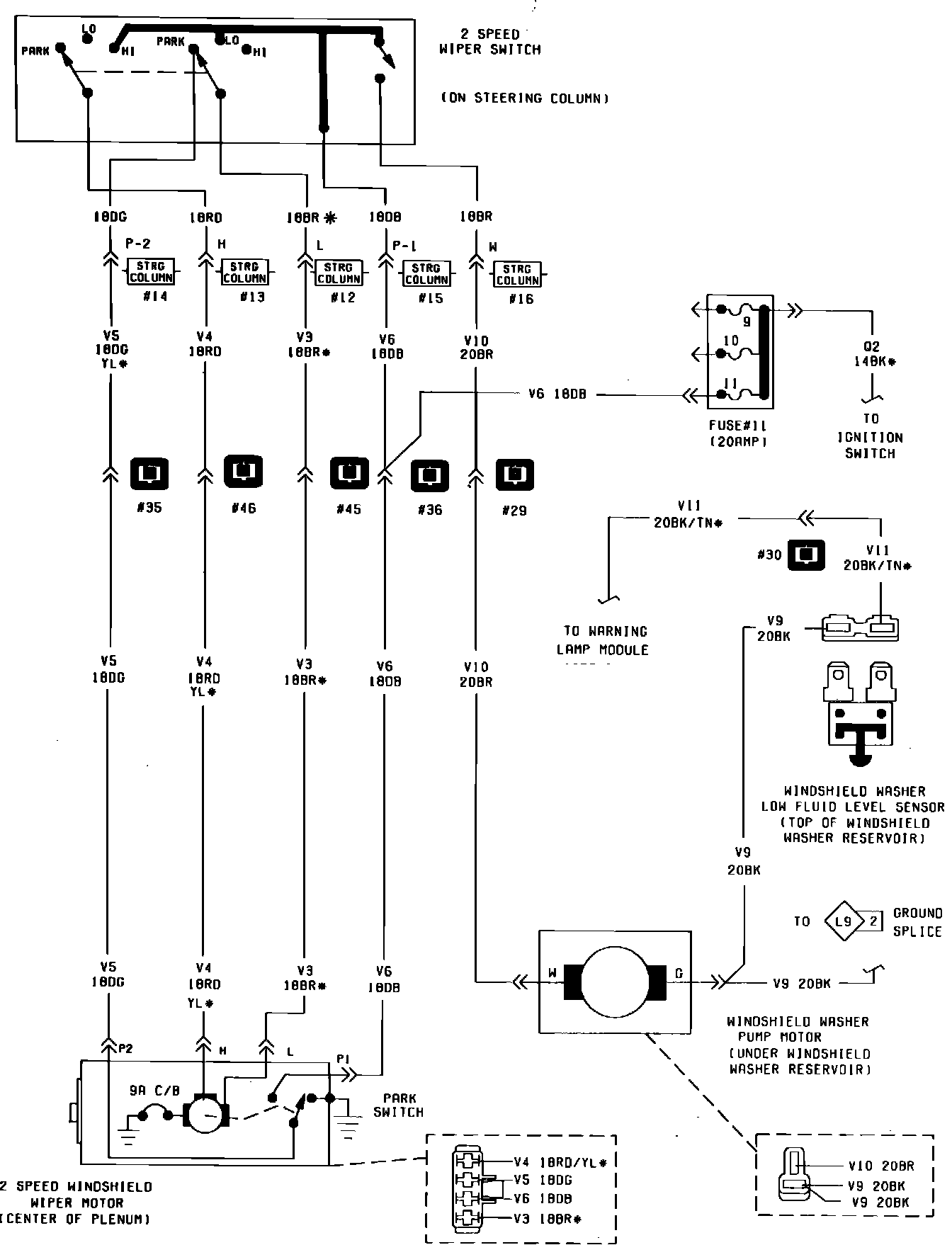

Fig. 76 Windshield Wiper System Wiring Circuit:
