1986
>>
Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
System Schematics
>>
Intermittent Wiper System
Intermittent Wiper System

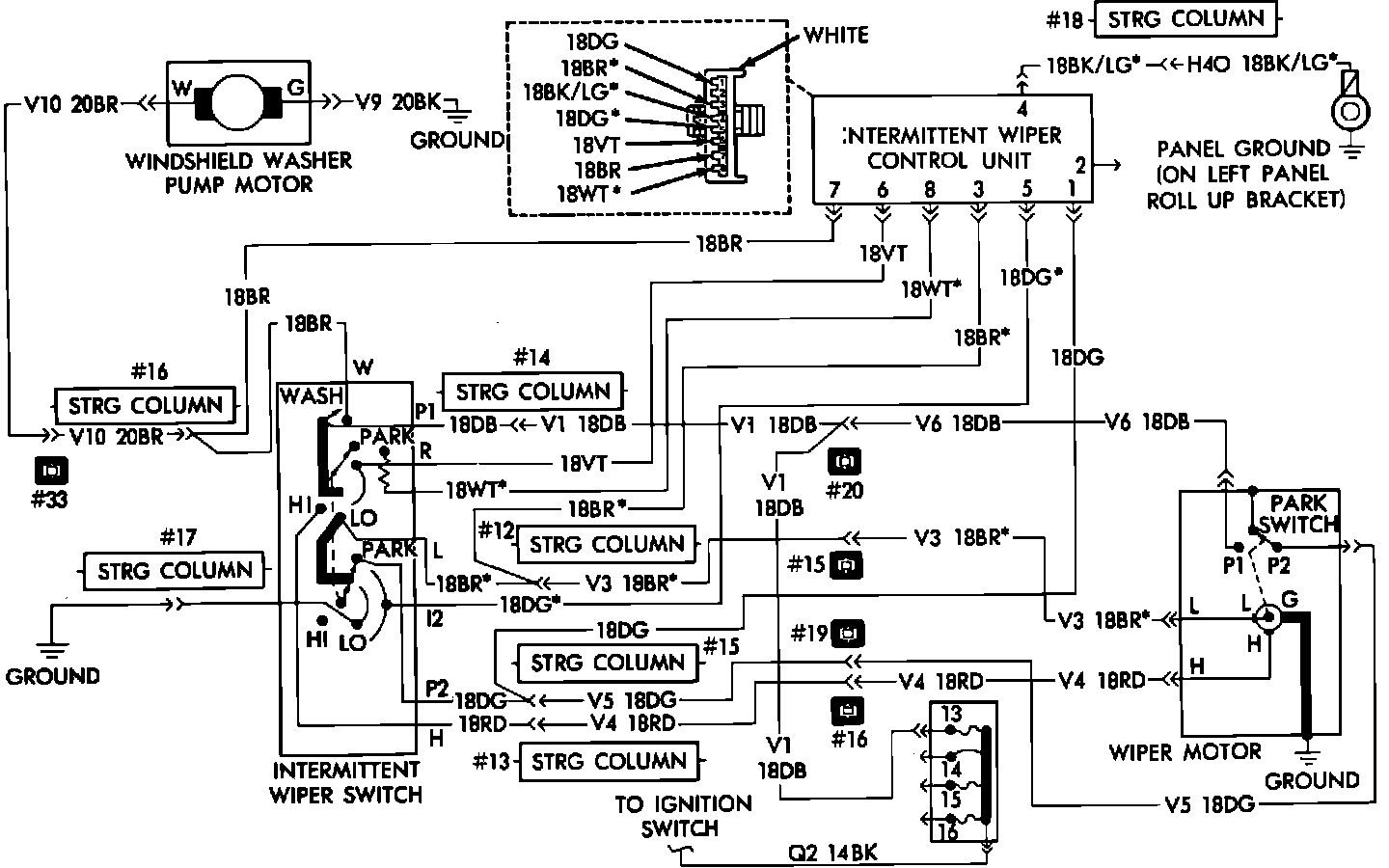

Intermittent Wipe Wiring Schematic (L/M And Z):
