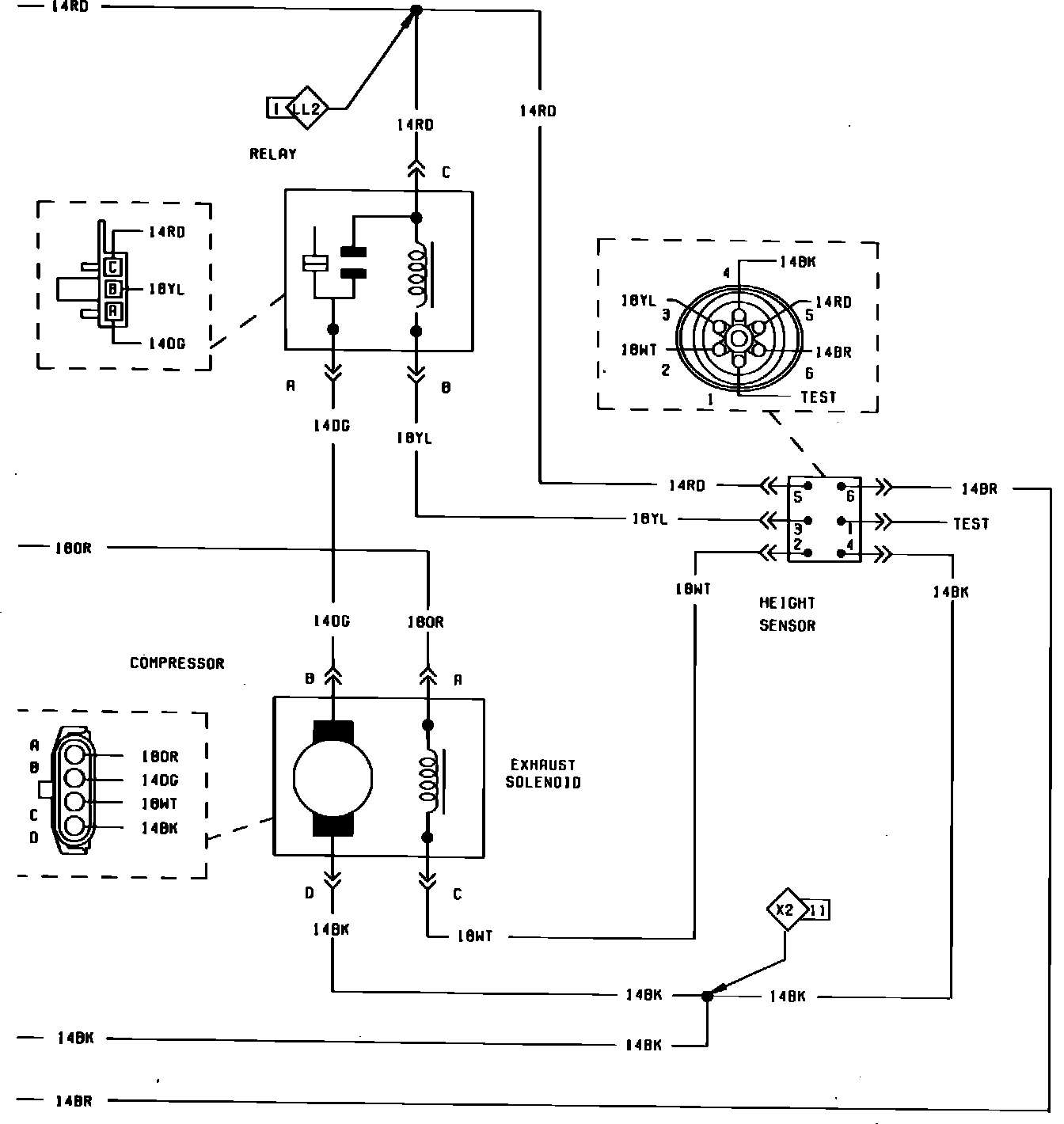

Fig. 19 Automatic Load Leveling & Height Control System Wiring Circuit (Part 2 of 2). New York & Town Country:
