Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Door Lift/Illum. Entry & Power Window
Door Lift/Illum. Entry & Power Window

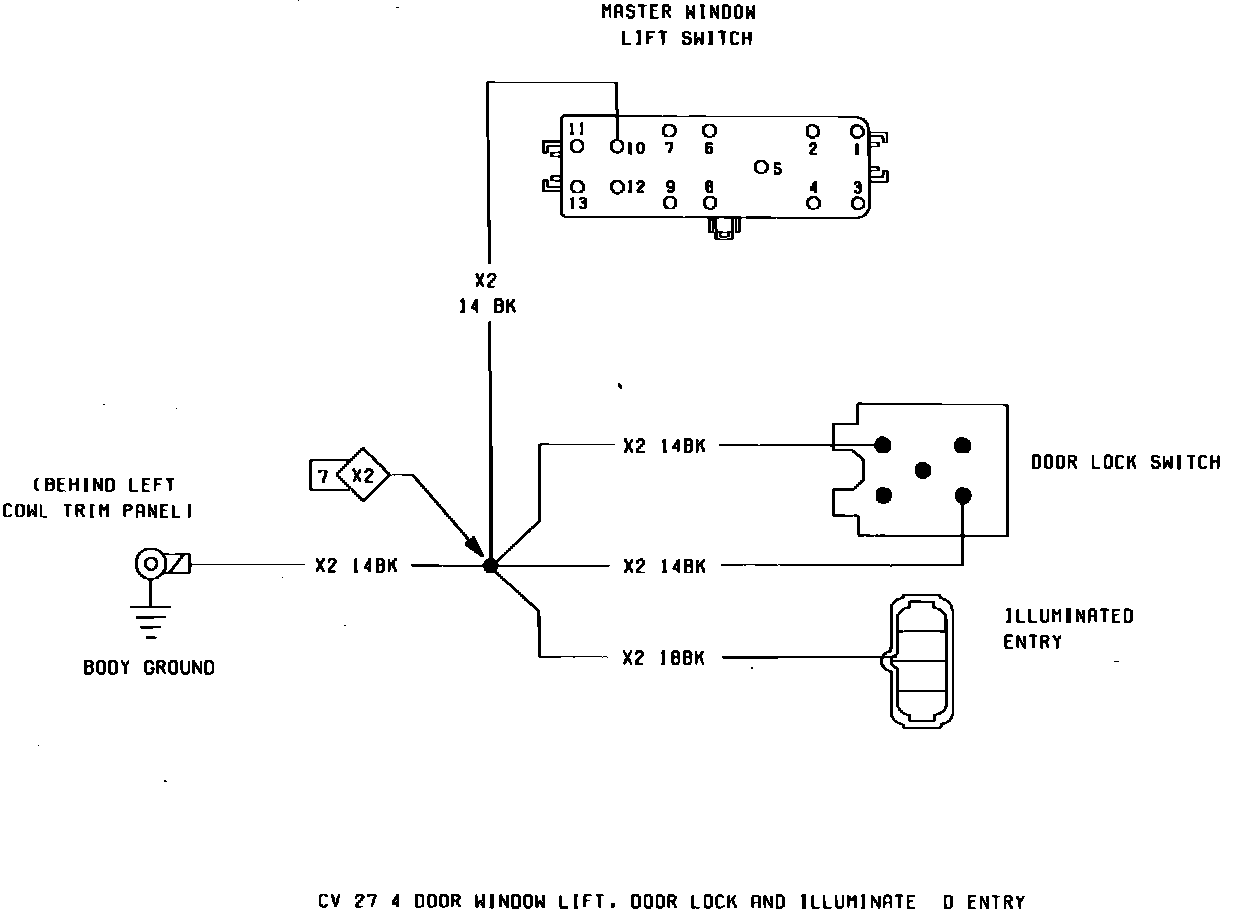

Fig. 80 Ground Distribution Door Lift, Illuminated Entry & Power Window Wiring Circuit. LeBaron & 600 W/Convertble:
