Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Speaker >> Part 1 of 2

Part 1 of 2

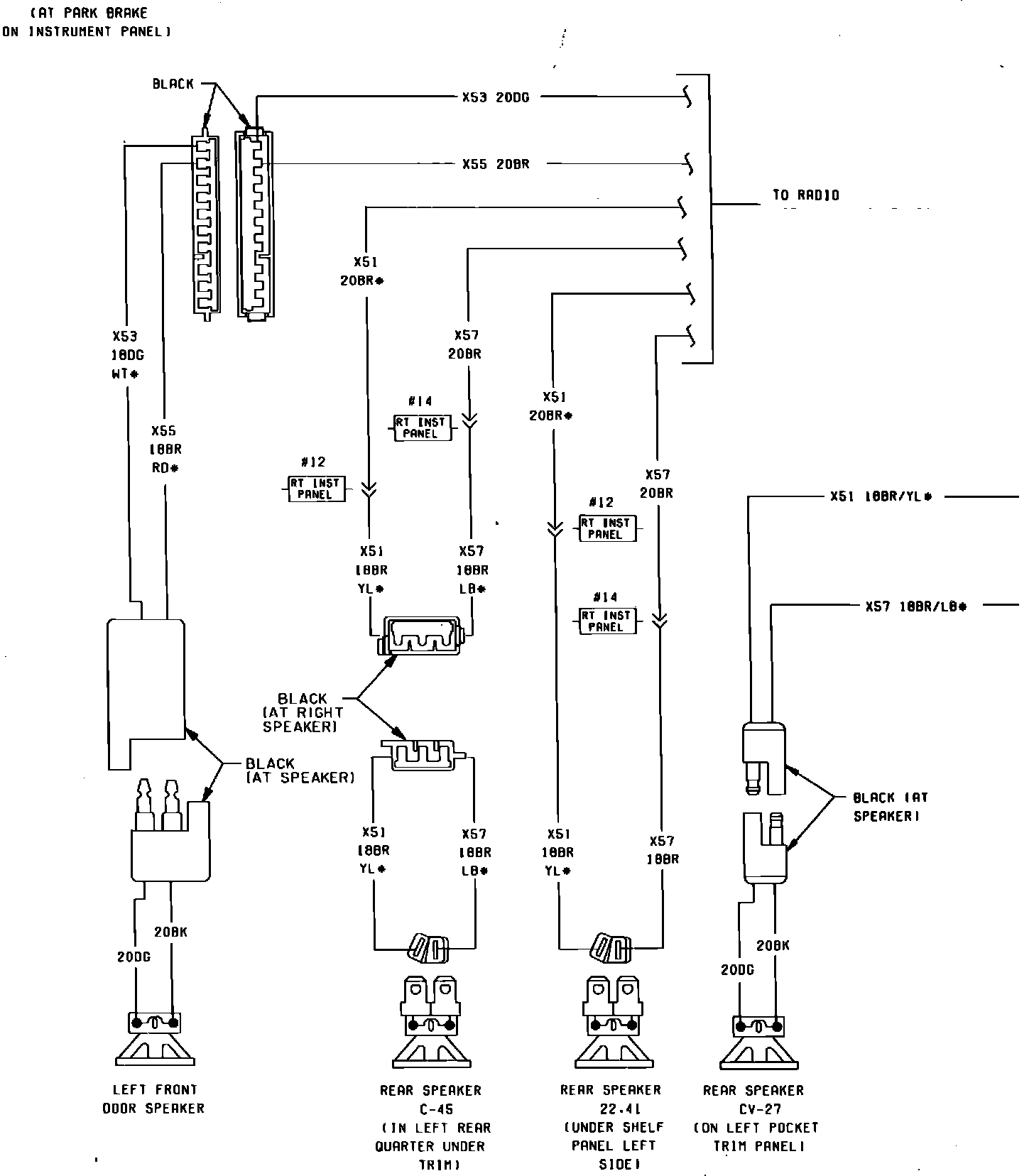

Fig. 65 Radio Door & Rear Speaker Wiring Circuit (Part 1 of 2):
