Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Radio Wiring Circuit >> AM Radio

AM Radio

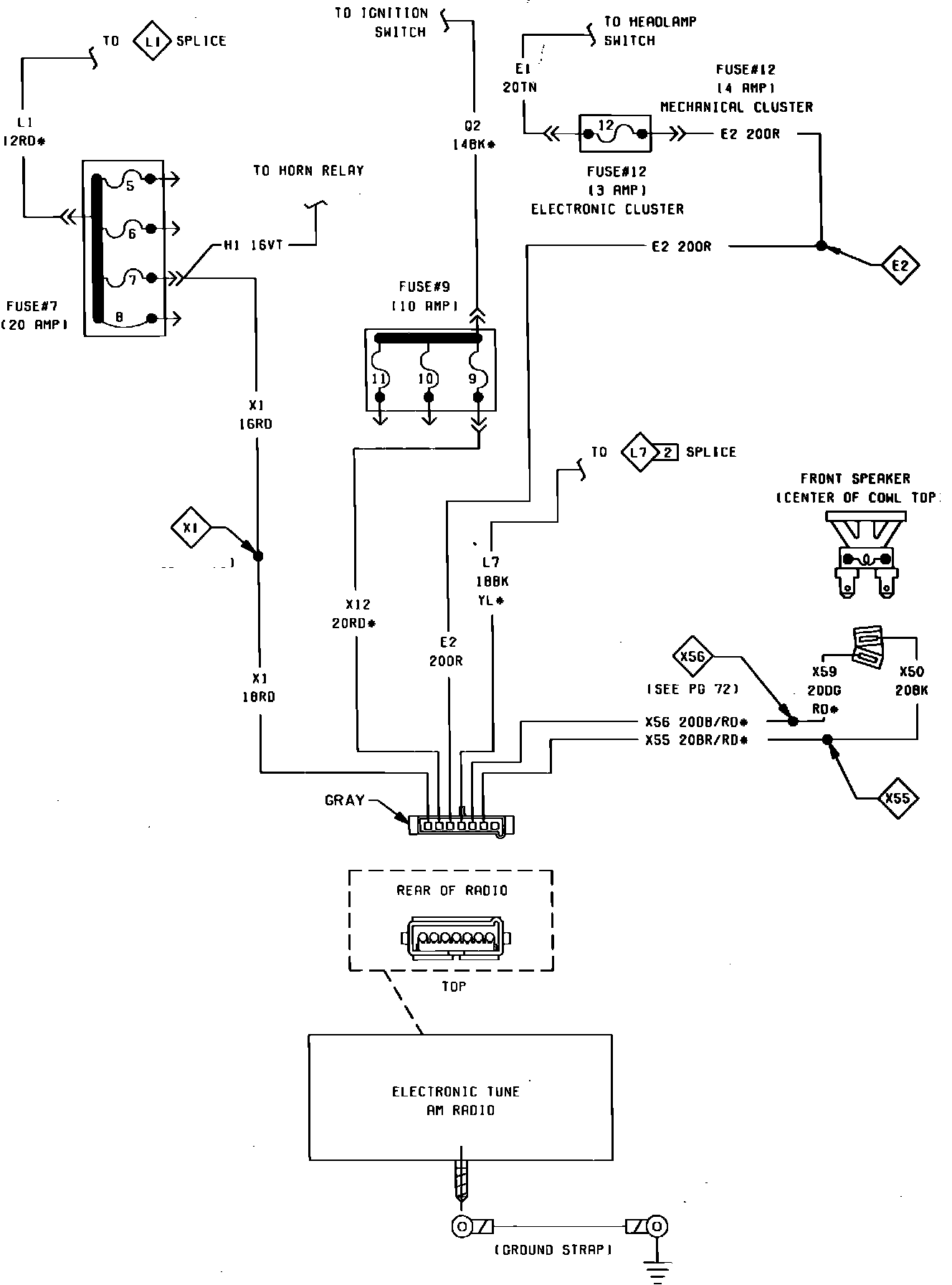

Fig. 62 Radio System Wiring Circuit (Mono):
