Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> System Diagram >> Ignition Switch/System >> Part 1 of 5

Part 1 of 5

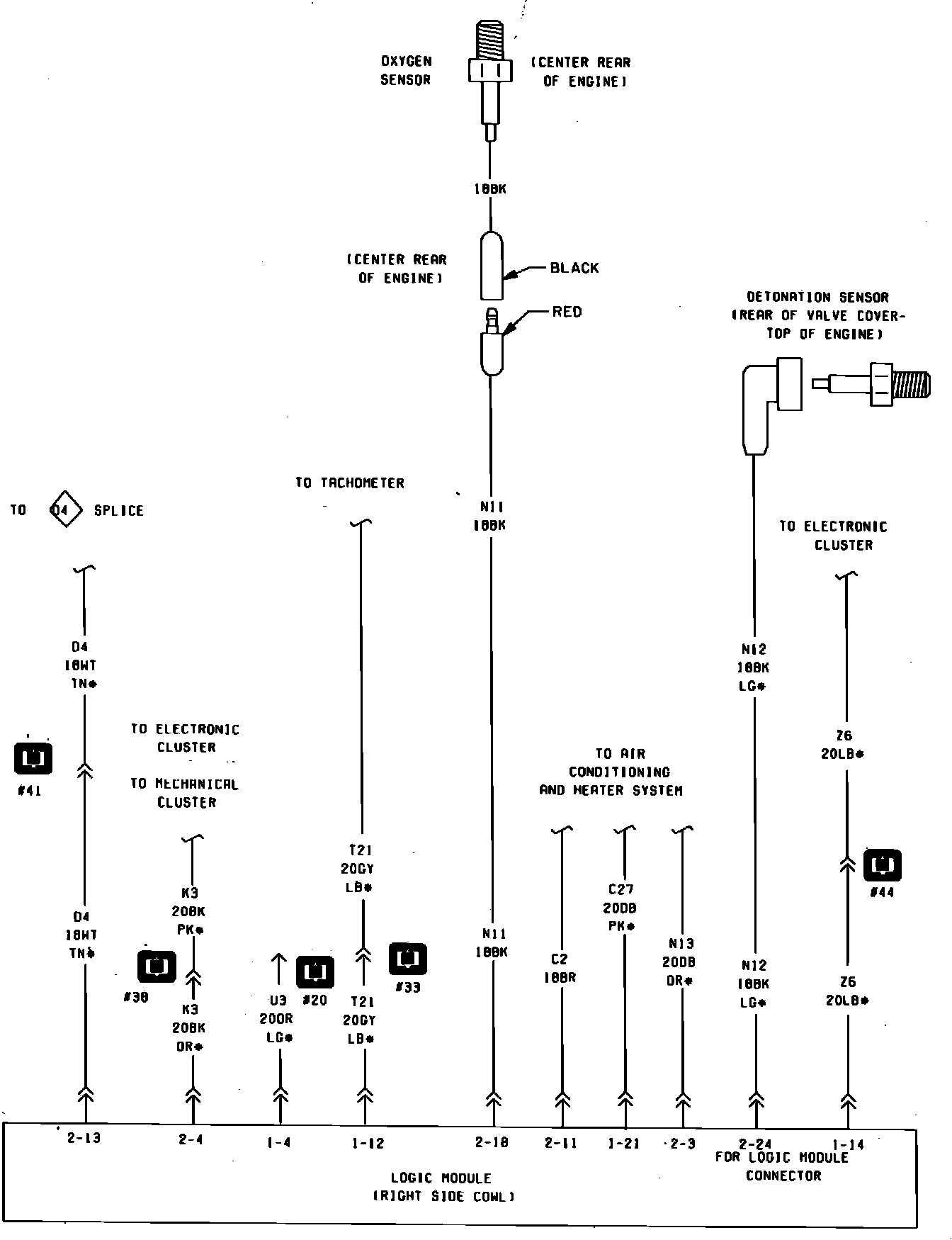

Fig. 41 Ignition System Wiring Circuit (Part 1 of 5). Models W/Turbocharger:
