Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Front End Lighting >> RHD

RHD

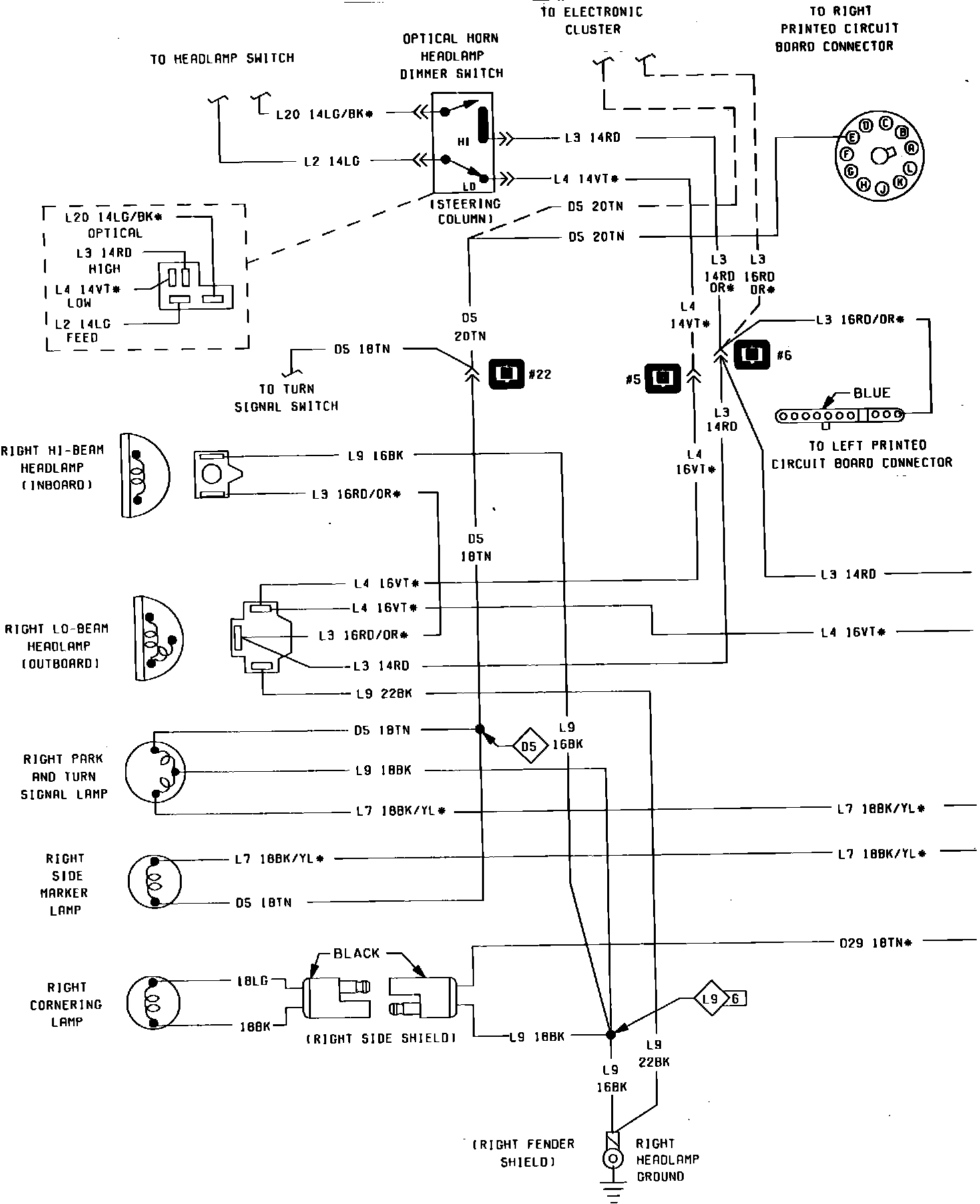

Fig. 31 Front End Lighting Wiring Circuit (Right):
