With Mech Cluster

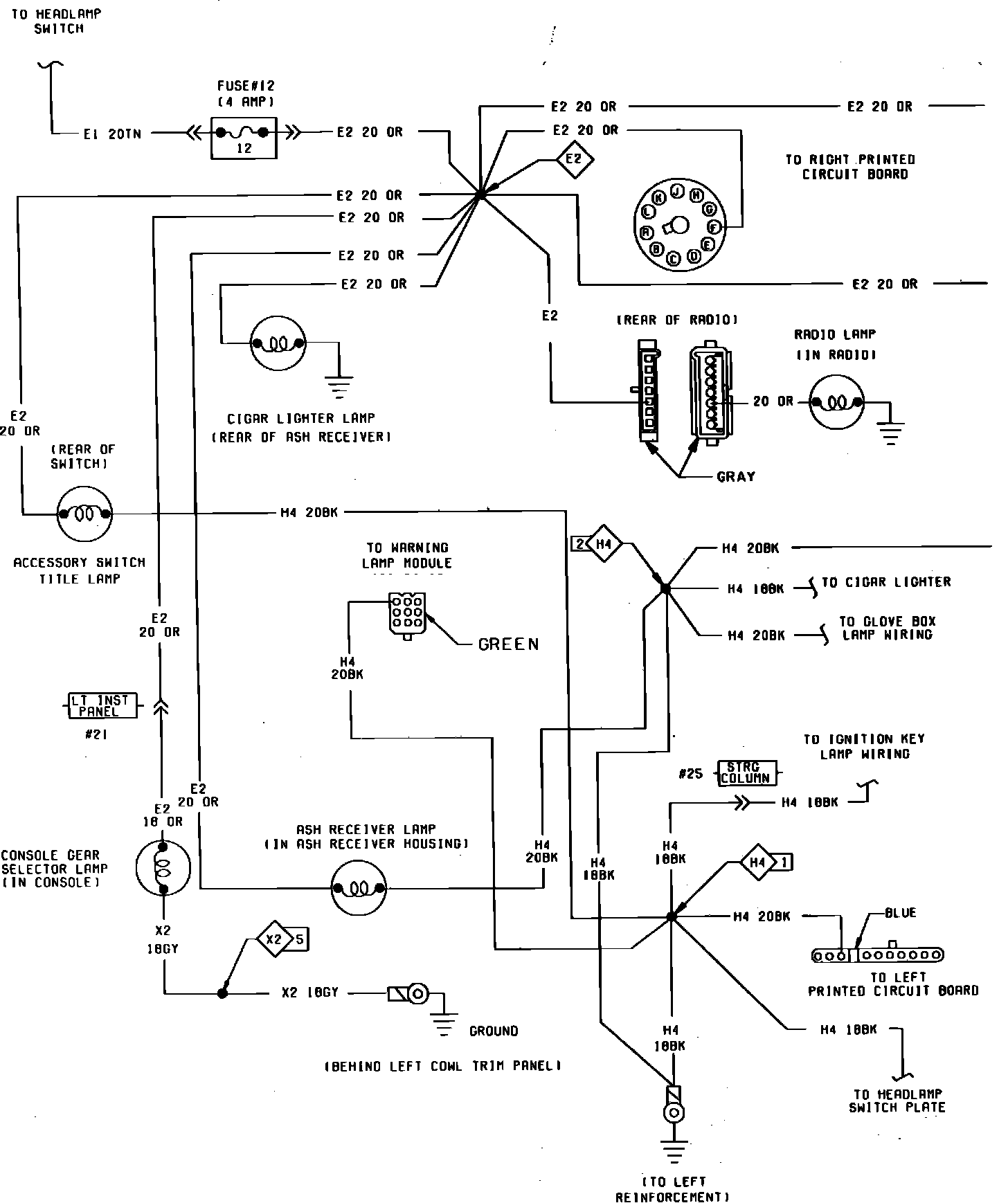

Fig. 36 Headlamp Switch W/Controlled Interior Lighting Wiring Circuit (Mechanical Cluster, Part 1 of 2):

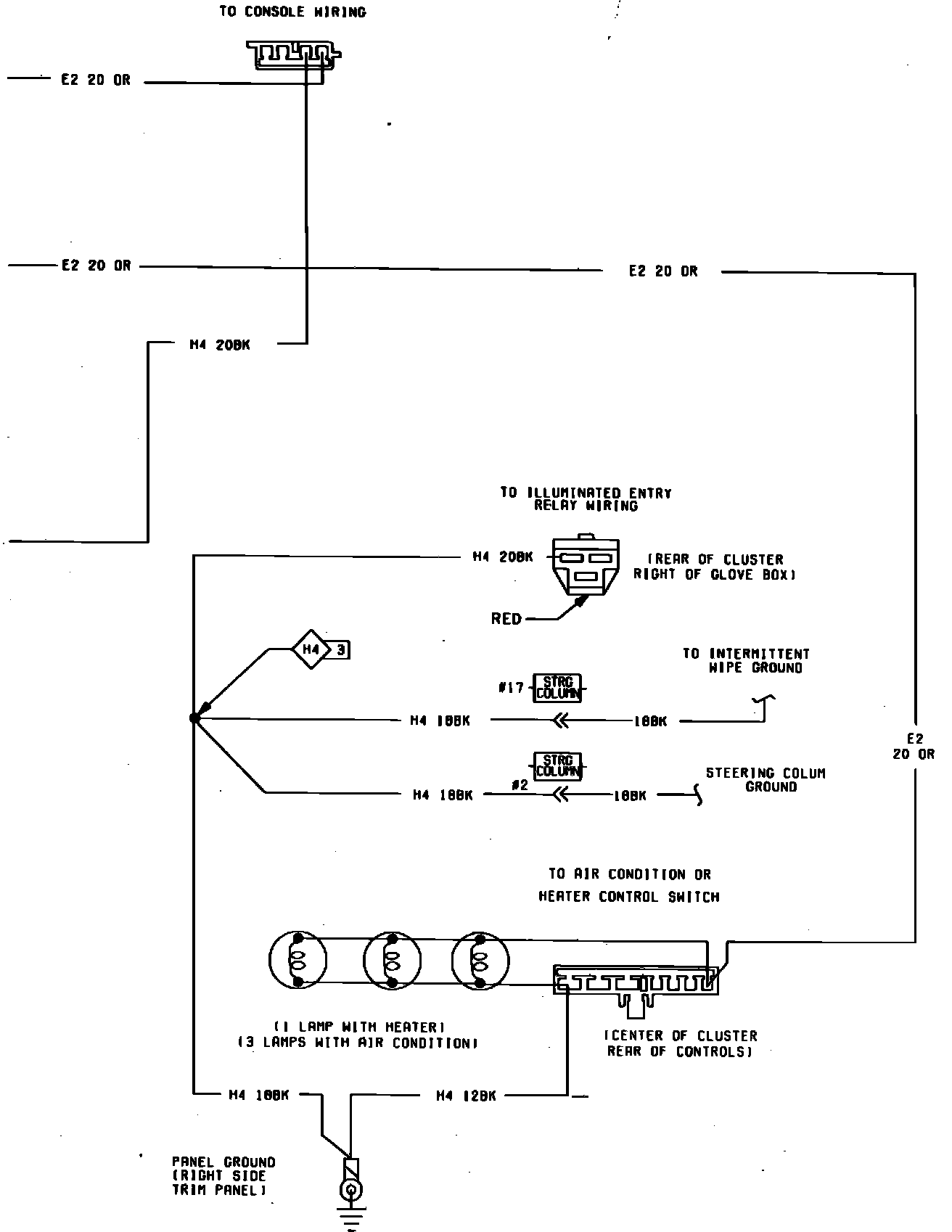

Fig. 36 Headlamp Switch W/Controlled Interior Lighting Wiring Circuit (Mechanical Cluster, Part 2 of 2):
