Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Door/Trunk Ajar Indicator/Lamp >> Liftgate & Door Ajar Warning System Wiring Circuit >> Part 1 of 2

Part 1 of 2

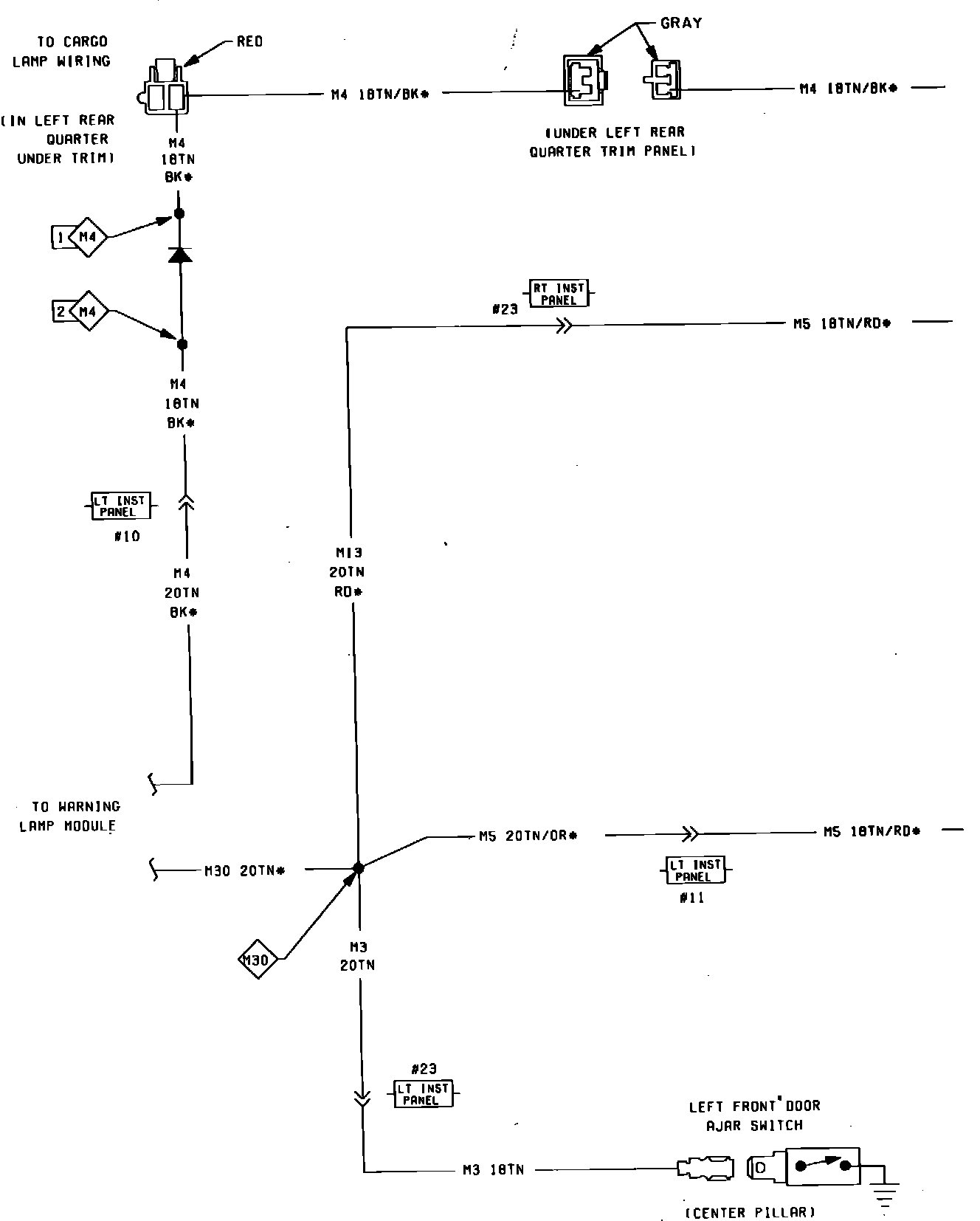

Fig. 46 Liftgate & Door Ajar Warning System Wiring Circuit (Part 1 of 2). Town & Country:
