Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Amplifier, Sound System >> Part 1 of 2

Part 1 of 2

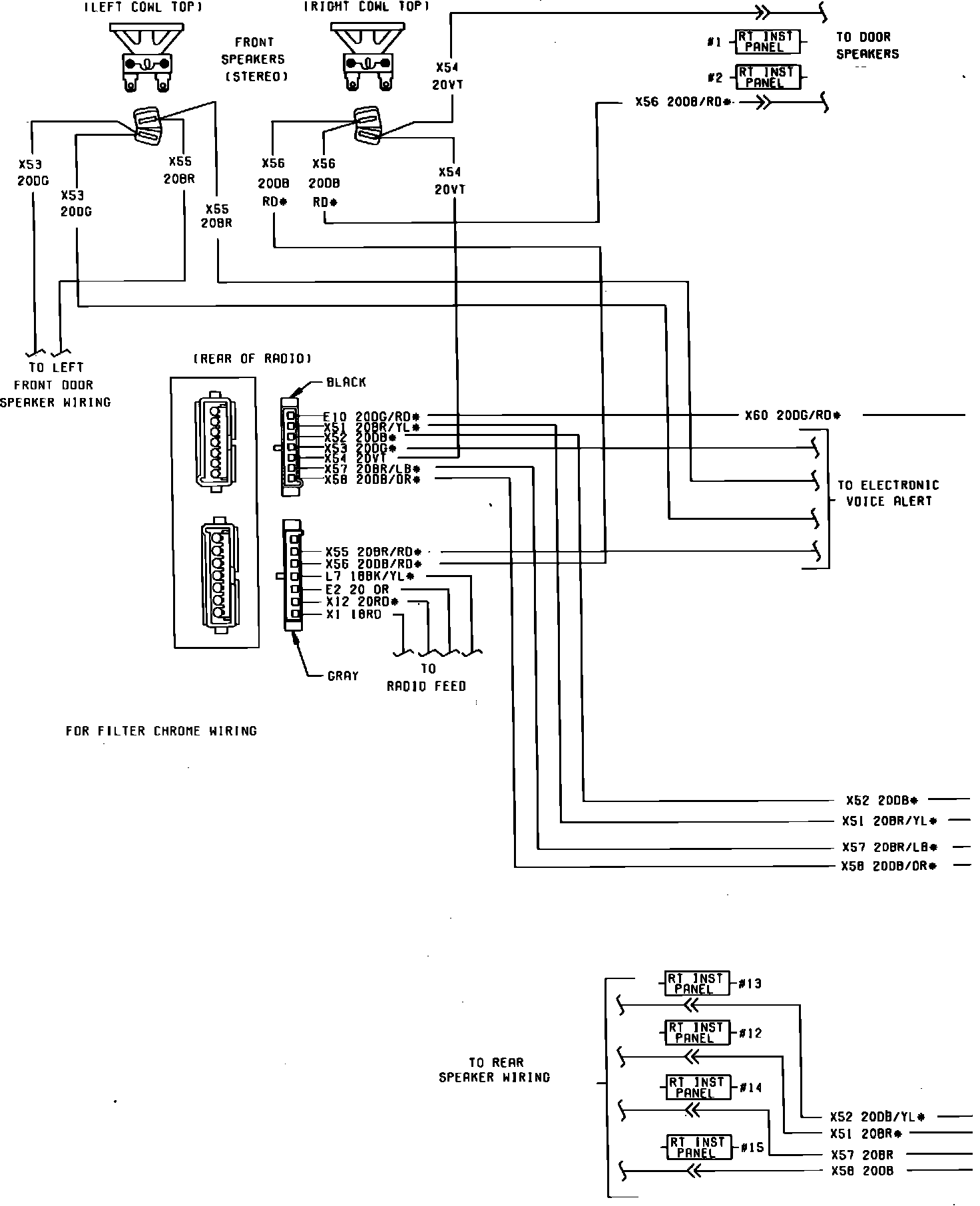

Fig. 64 Radio Amplifier Wiring Circuit (Stereo, Part 1 of 2):
