Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
>>
Electronic Cluster
>>
Right Side
Right Side

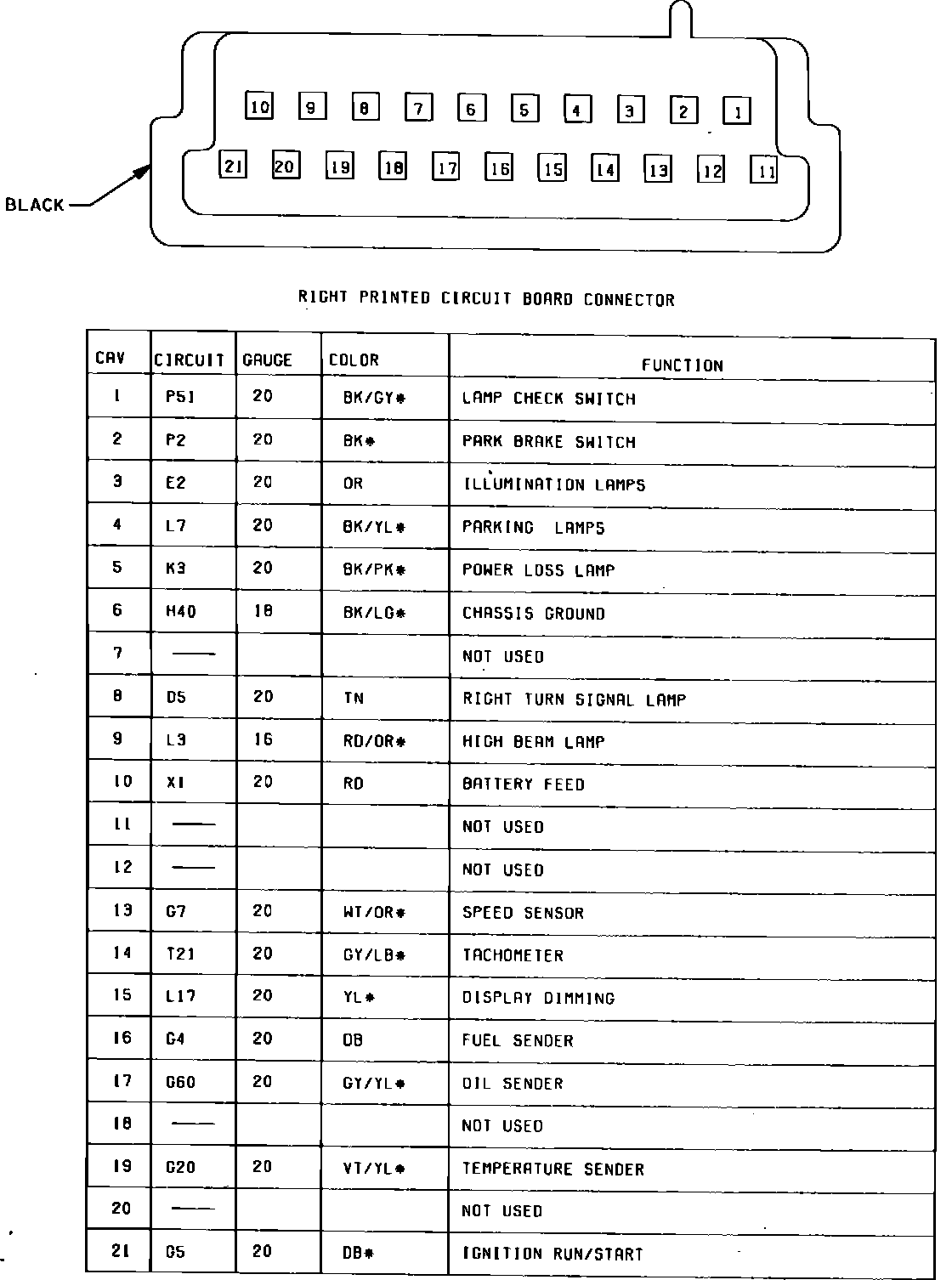

Fig. 4 Printed Circuit Board Connectors (Electronic Cluster, Part 2 of 2):
