Power Seat Motor: Locations

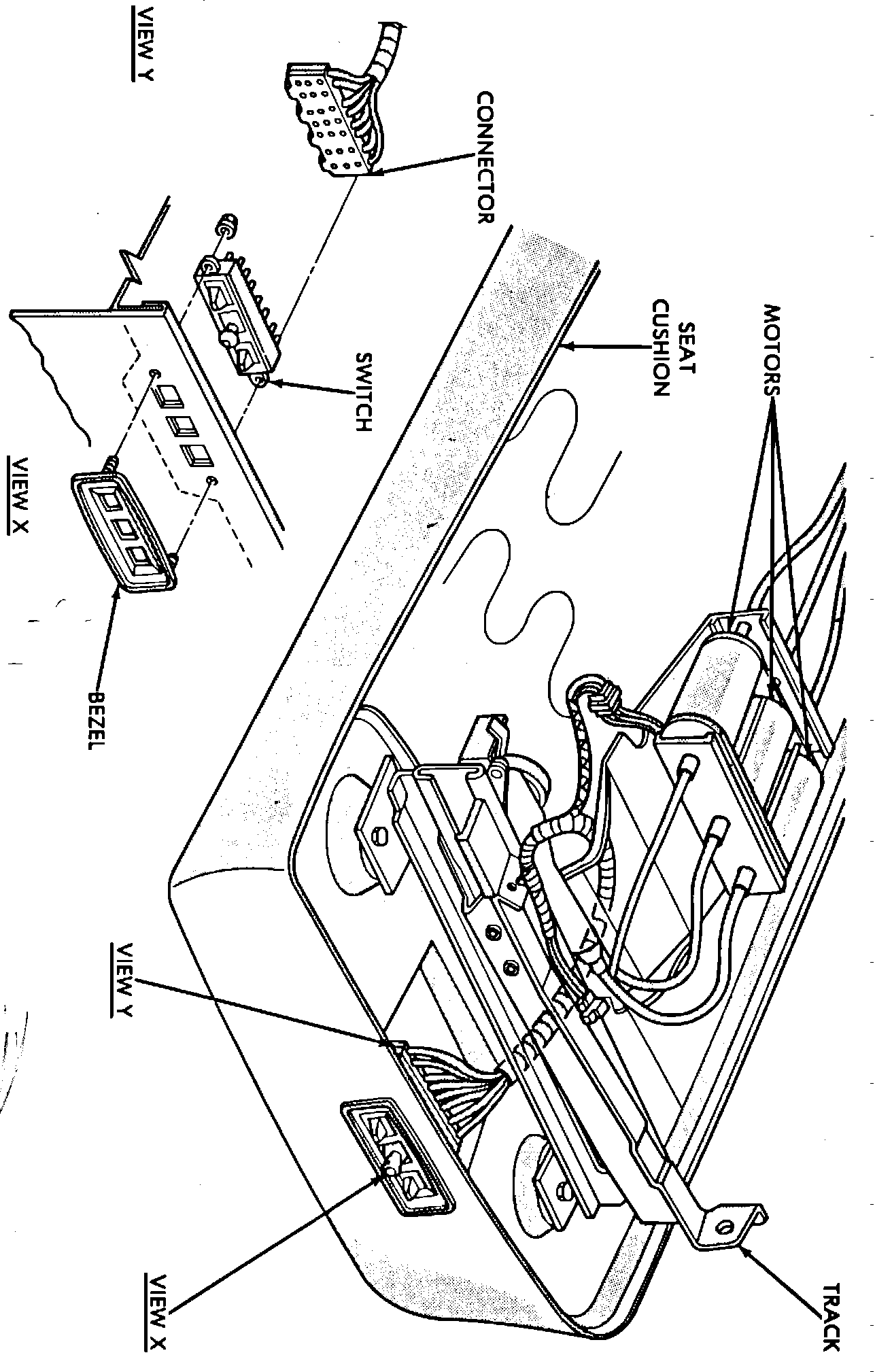

Seat electrical components.:

Under Seat

Applicable to: 1986-87 Caravelle, LeBaron Sedan, LeBaron Convertible (1986), New Yorker, Town & Country & 600
