Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Split Bench Seat >> Part 1 of 2

Part 1 of 2

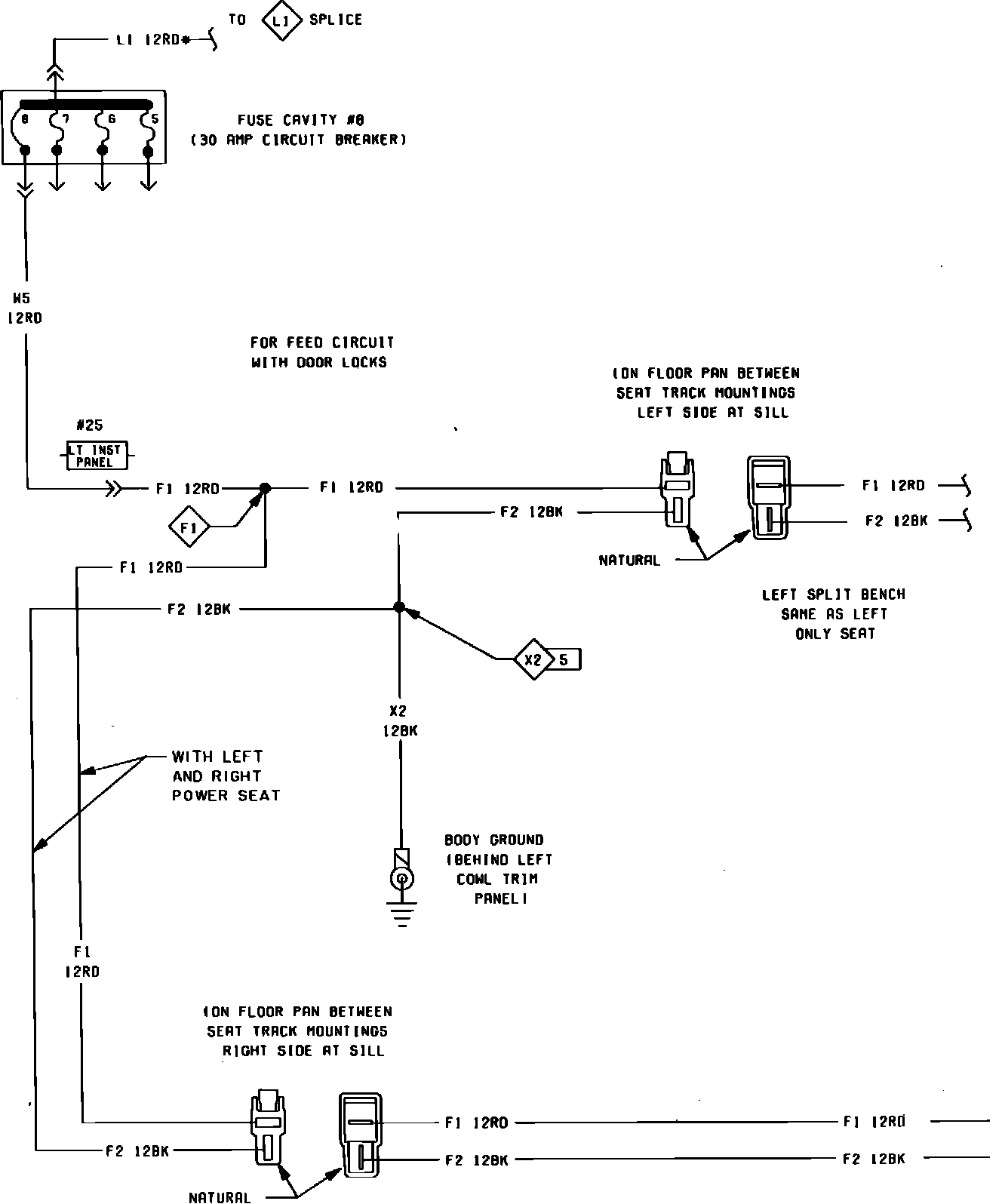

Fig. 56 Power Seat System Wiring Circuit (Split Bench, Part 1 of 2):
