Deck Lid/Liftgate Release Wiring Circuit

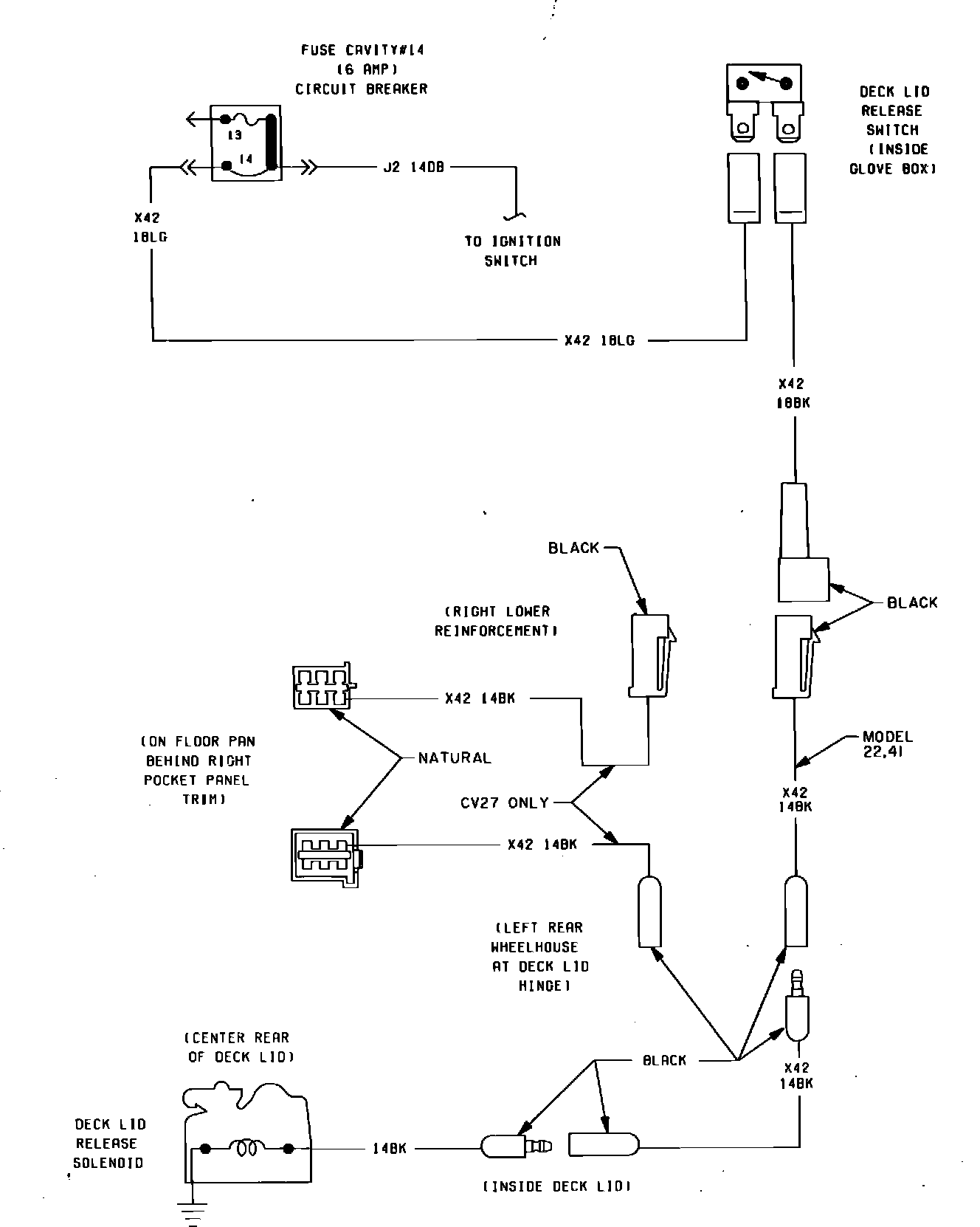

Fig. 27 Deck Lid Release Wiring Circuit. LeBaron, Town & Country & 600:

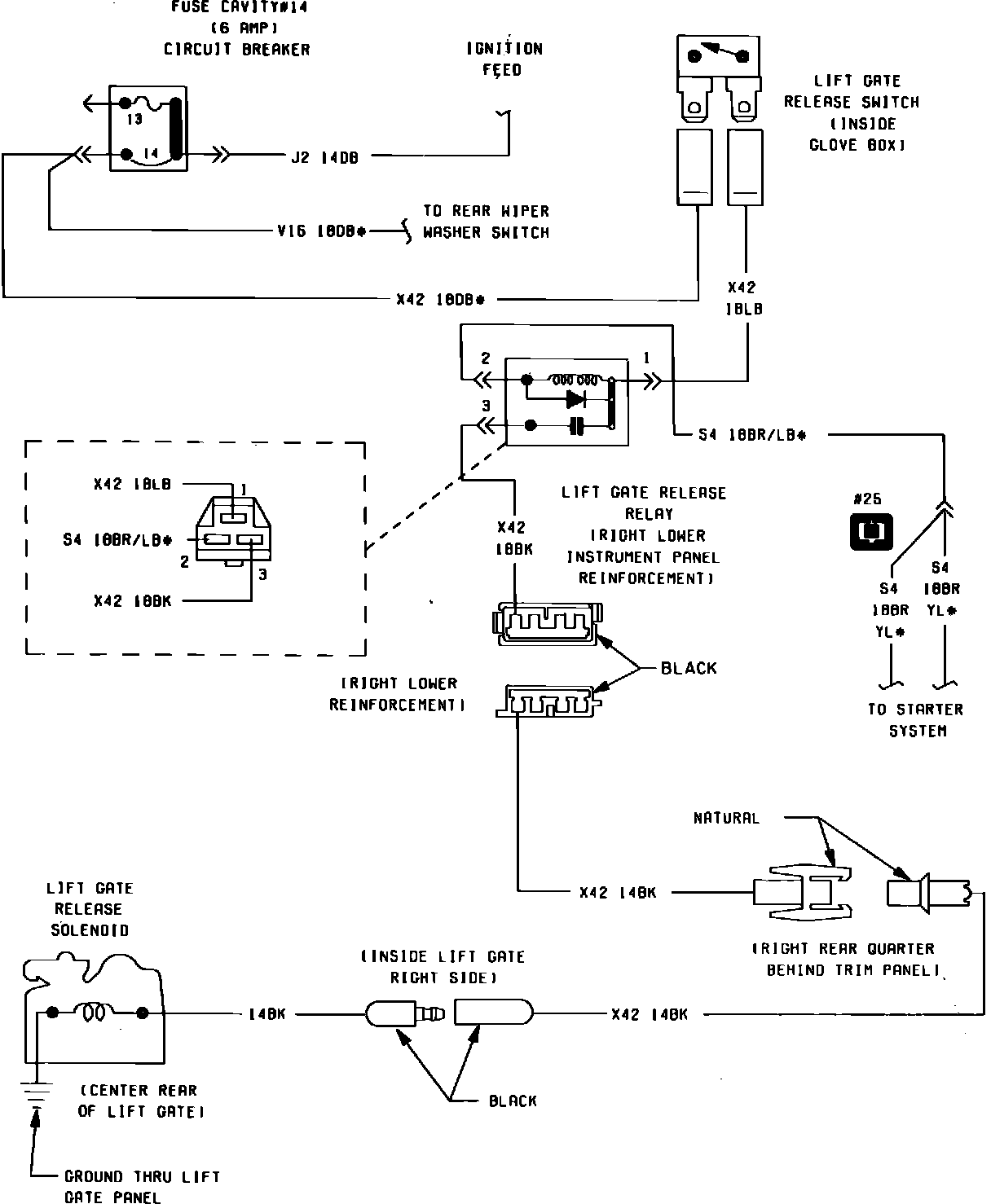

Fig. 45 Liftgate Release Wiring Circuit:
