9A Checking Resistance of Distributor Pickup Coil
9A Checking Resistance of Distributor Pickup Coil

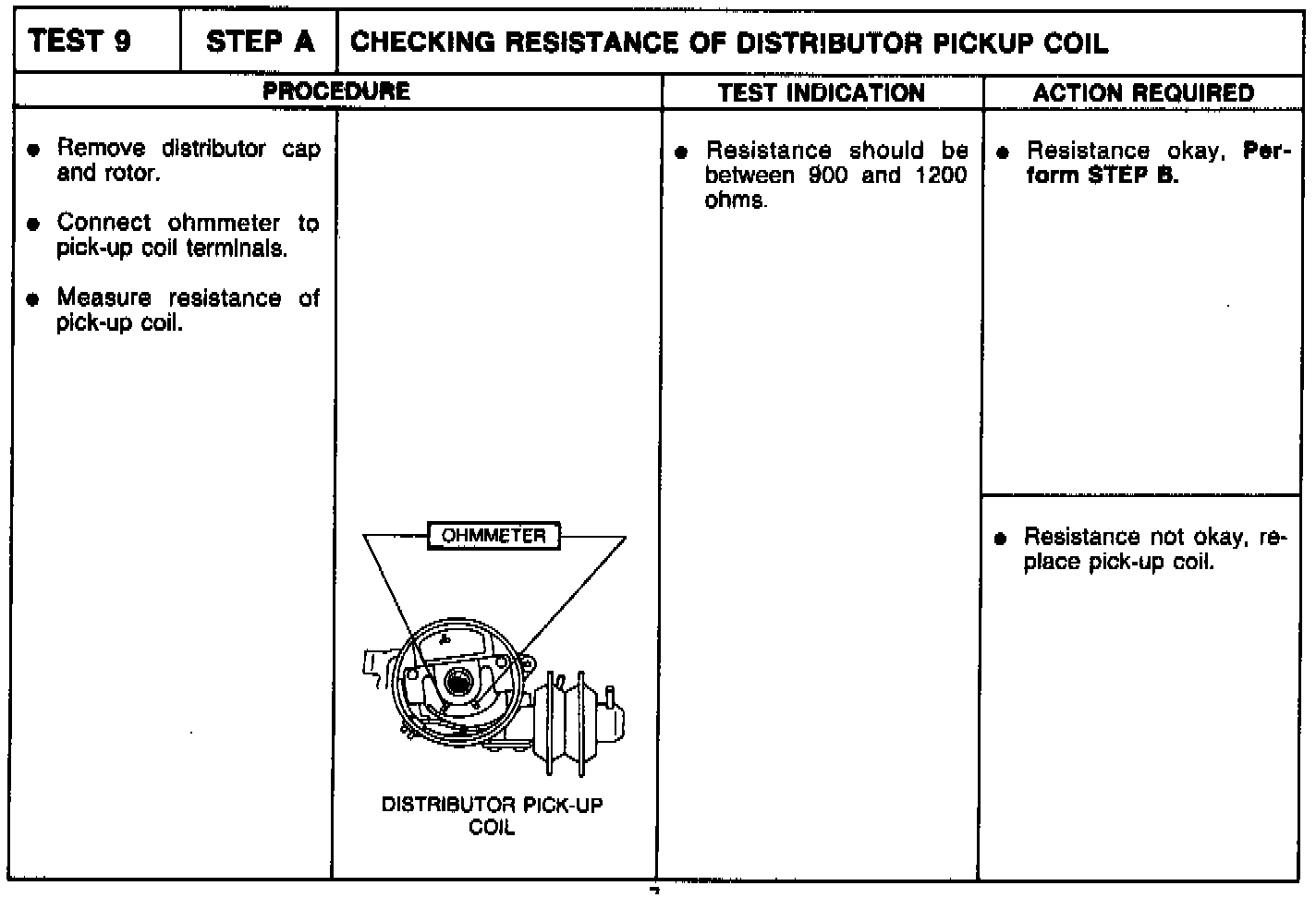

Diagnostic Chart:
