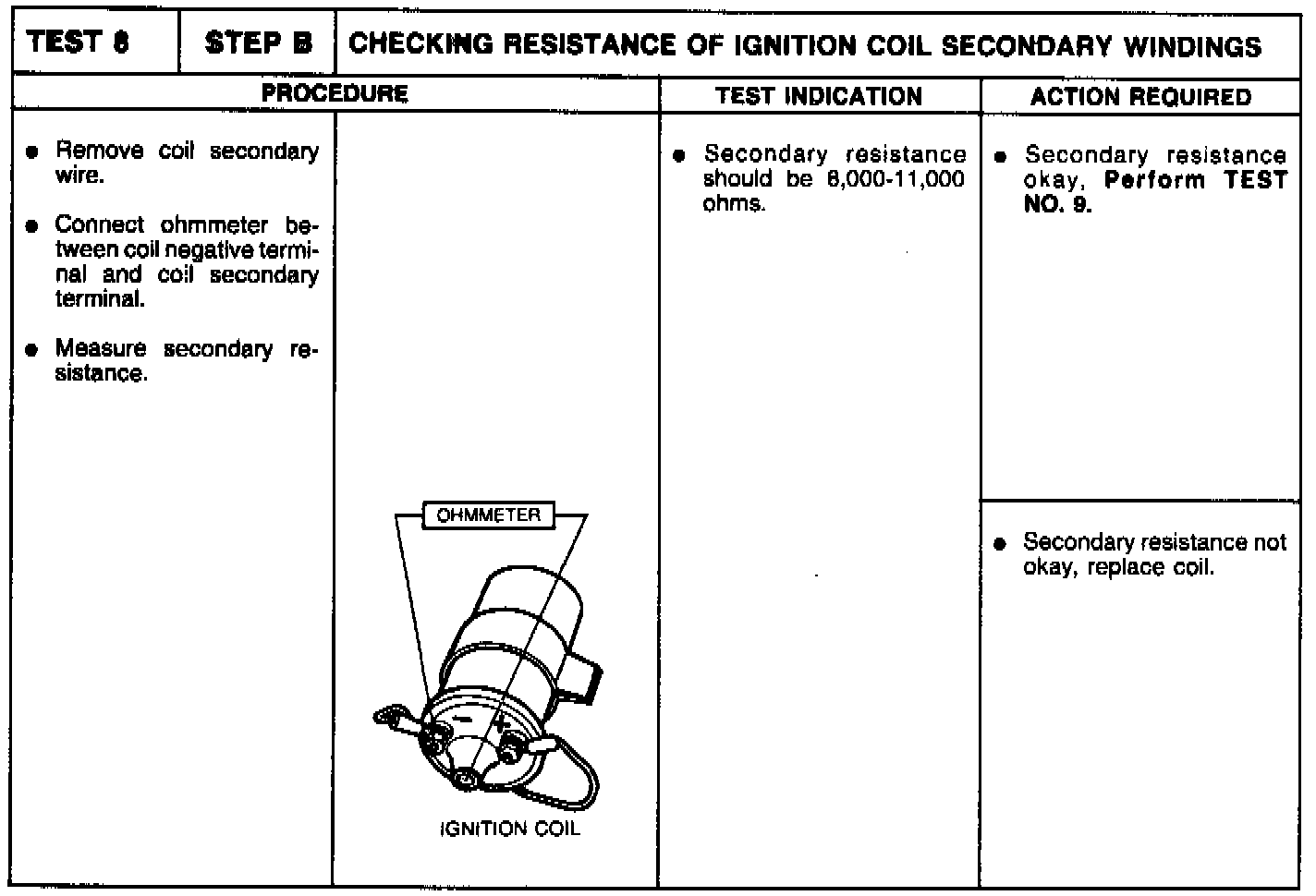

8B Checking Resistance of Ignition Coil Secondary Windings
8B Checking Resistance of Ignition Coil Secondary Windings
Diagnostic Chart:
