Home >> Chrysler >> 1985 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram >> With Feedback Carburetor >> Part 1 of 2

Part 1 of 2

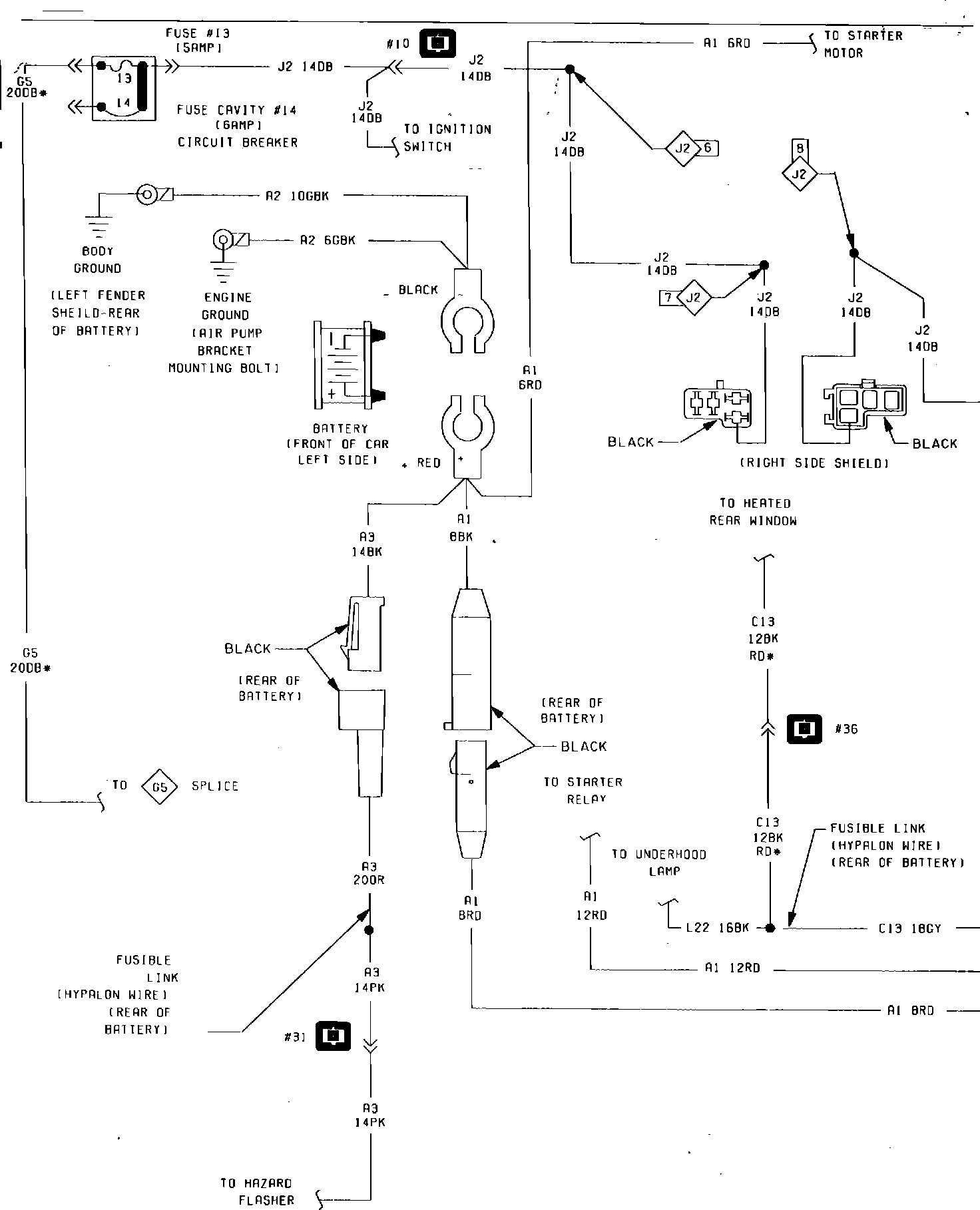

Fig. 23 Charging System Wiring Circuit (Part 1 of 2). 1985 W/2.6 Litre Engine W/Feedback Carburetor:
