Home >> Chrysler >> 1985 >> Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Front End Lighting >> With Feedback Carburetor

With Feedback Carburetor

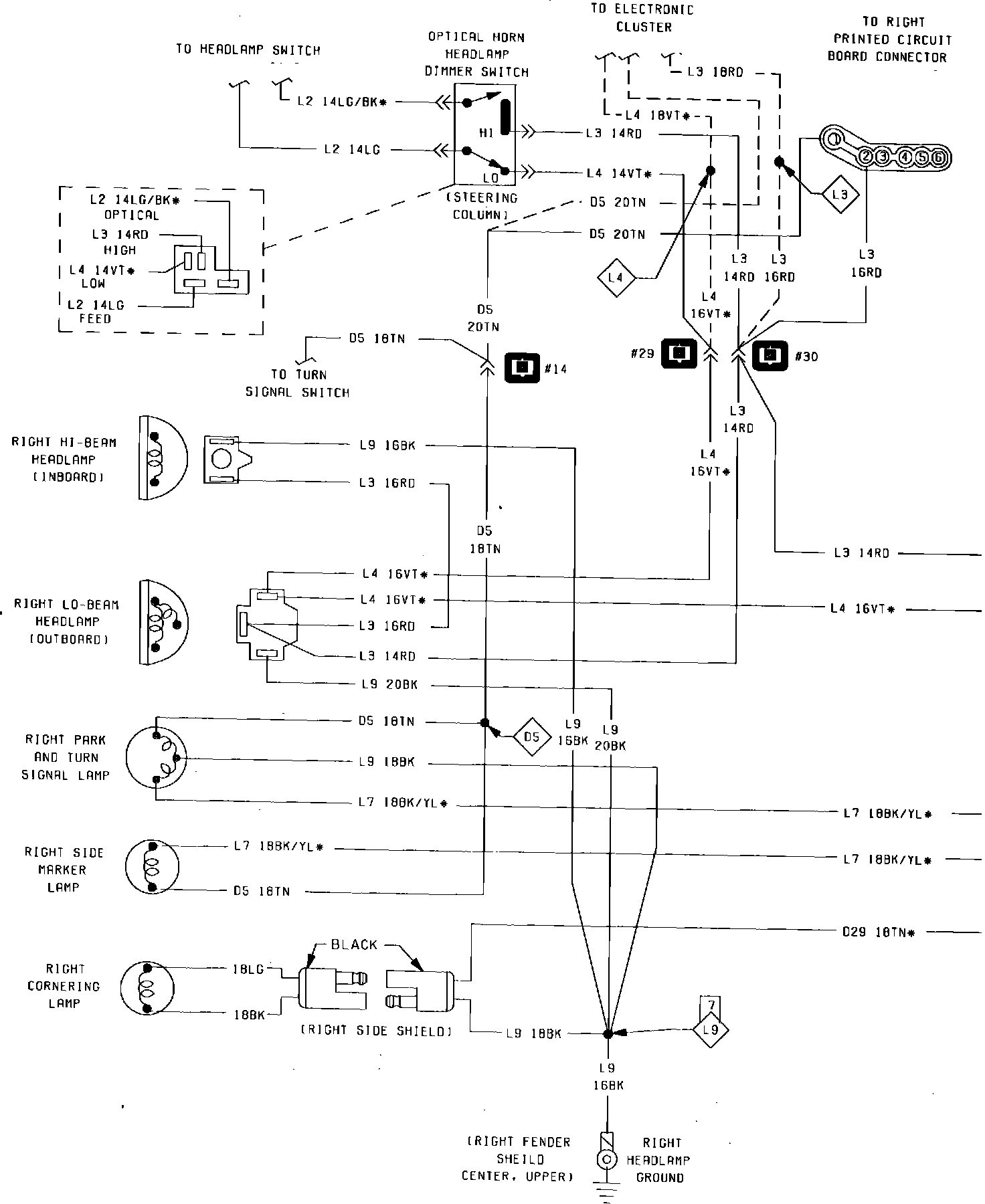

Fig. 44 Front End Wiring Circuit (Part 1 of 2). 1985 W/2.6 Litre Engine W/Feedback:

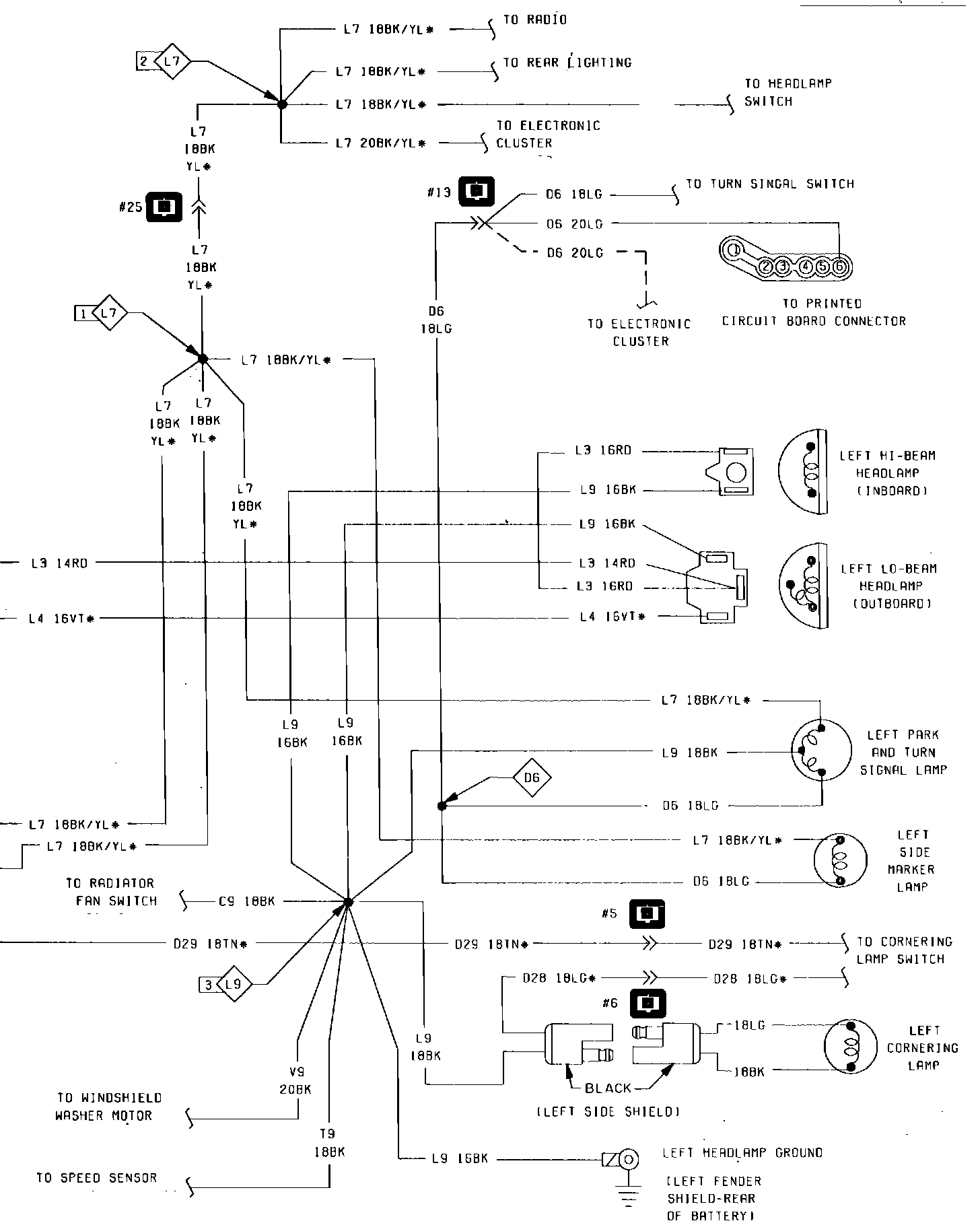

Fig. 44 Front End Wiring Circuit (Part 2 of 2). 1985 W/2.6 Litre Engine W/Feedback:
