Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Fuel Distance/Mileage Module
>>
ESA Fuel Flow & Speed Sensor System Wiring Circuit
ESA Fuel Flow & Speed Sensor System Wiring Circuit

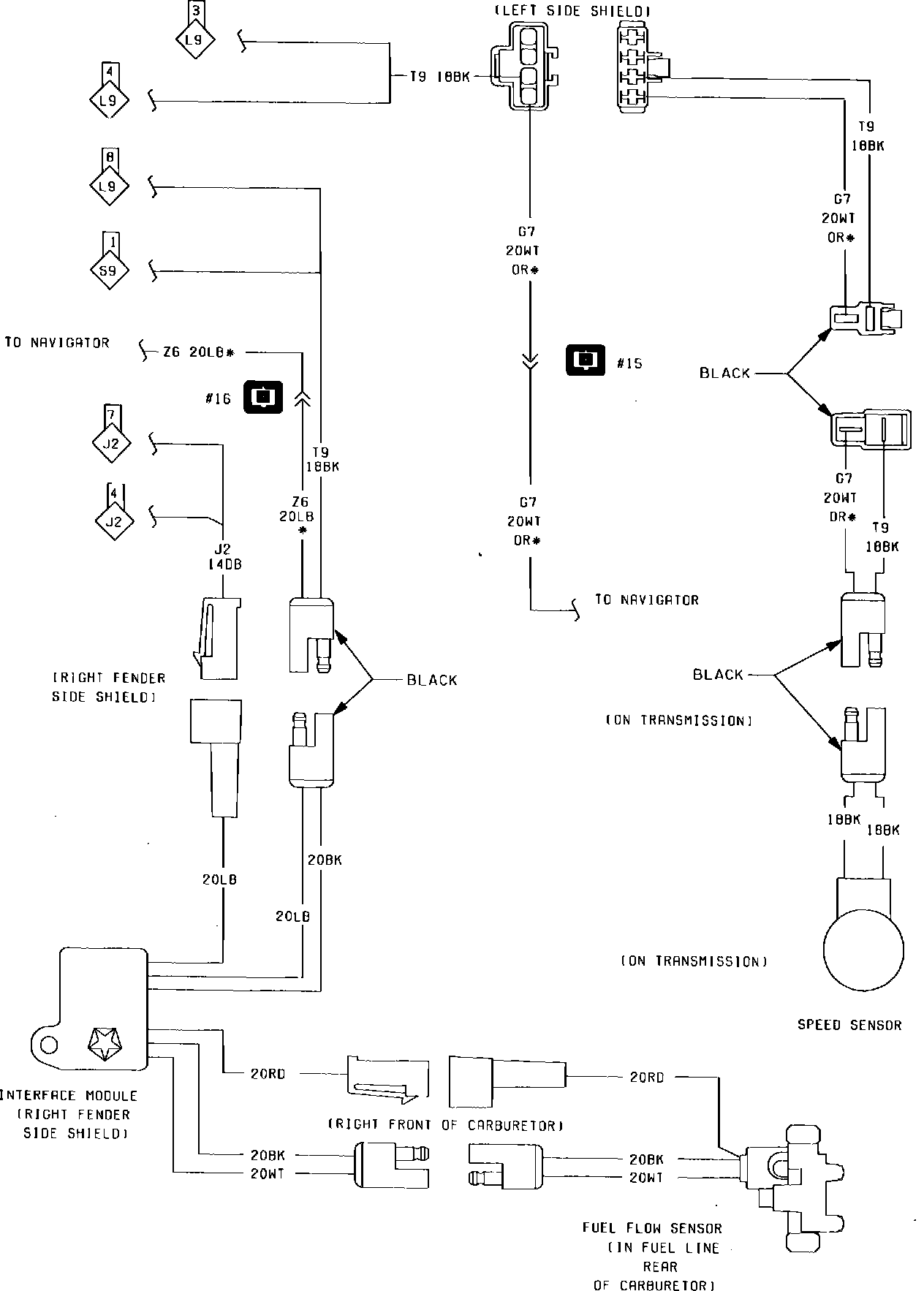

Fig. 41 ESA Fuel Flow & Speed Sensor System Wiring Circuit. 1985 W/2.6 Litre Engine:
