Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
W/Non-Feedback Carburetor
W/Non-Feedback Carburetor

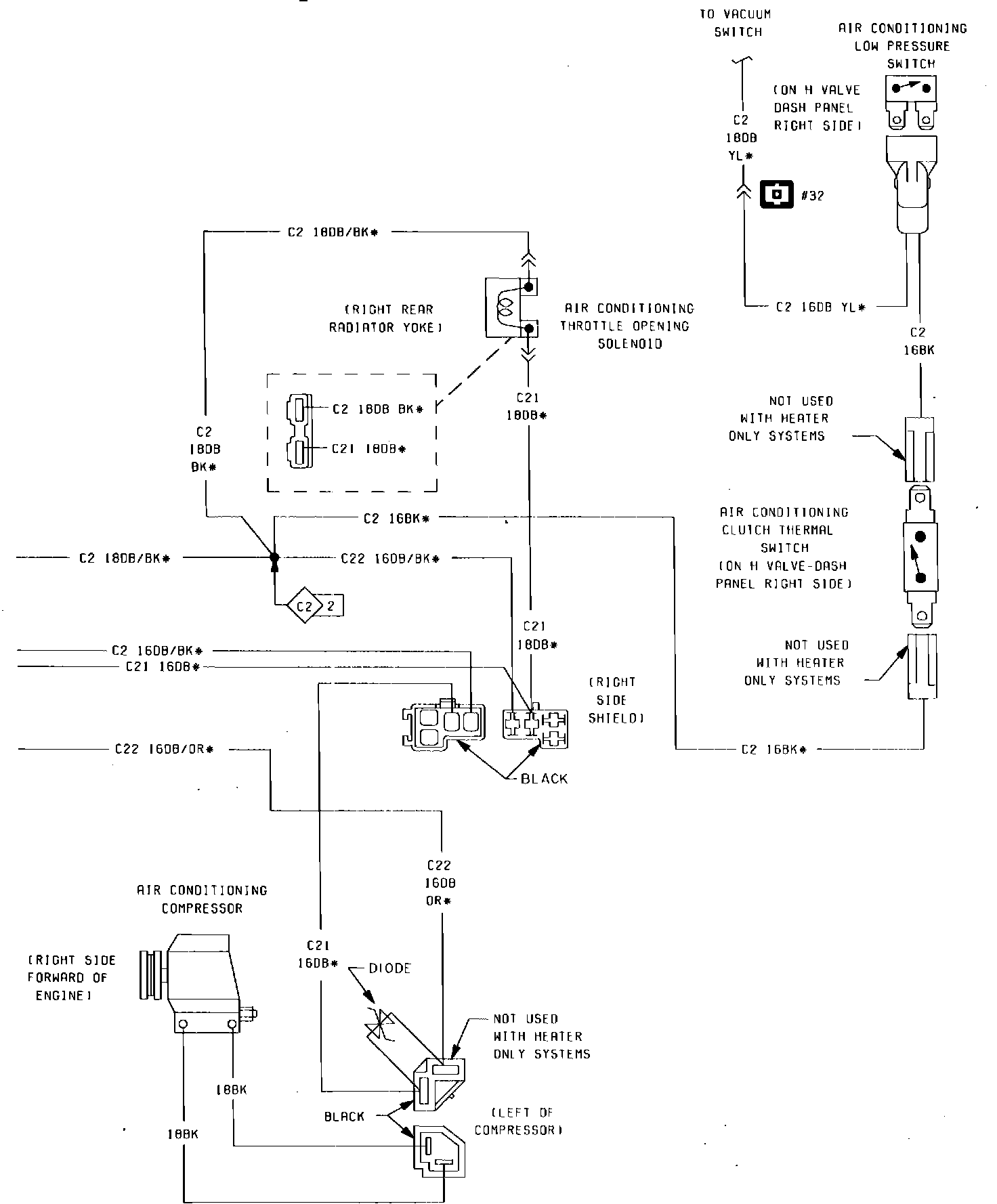

Air Conditioning & Heater Circuit With Non-Feedback Carb (Part 1 of 2):

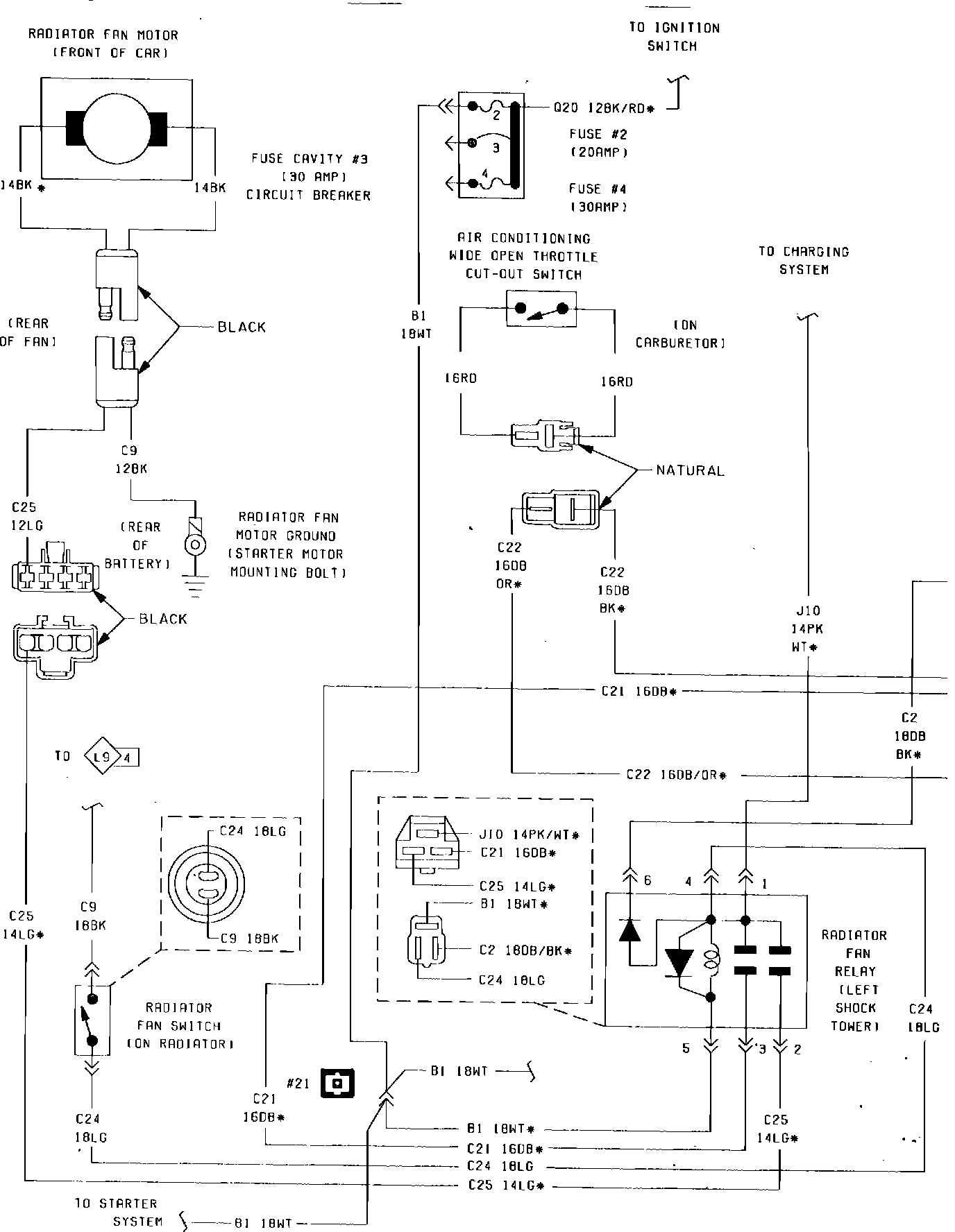

Air Conditioning & Heater Circuit With Non-Feedback Carb (Part 2 of 2):
