Convertible With Power Rear Windows Only

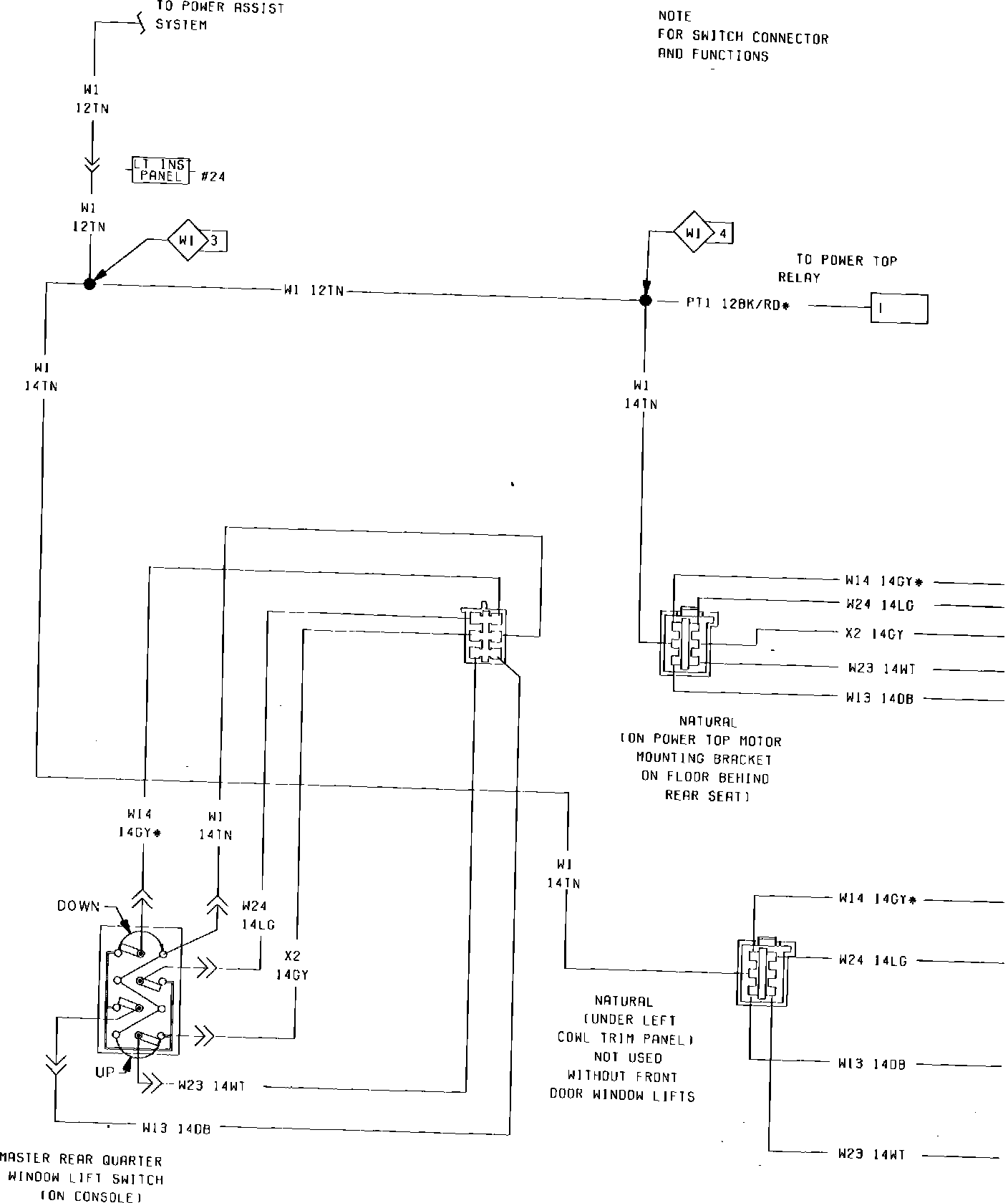

Fig. 71 Power Quarter Window Wiring Circuit (Part 1 of 2). 1985 Convertible Quarter Window:

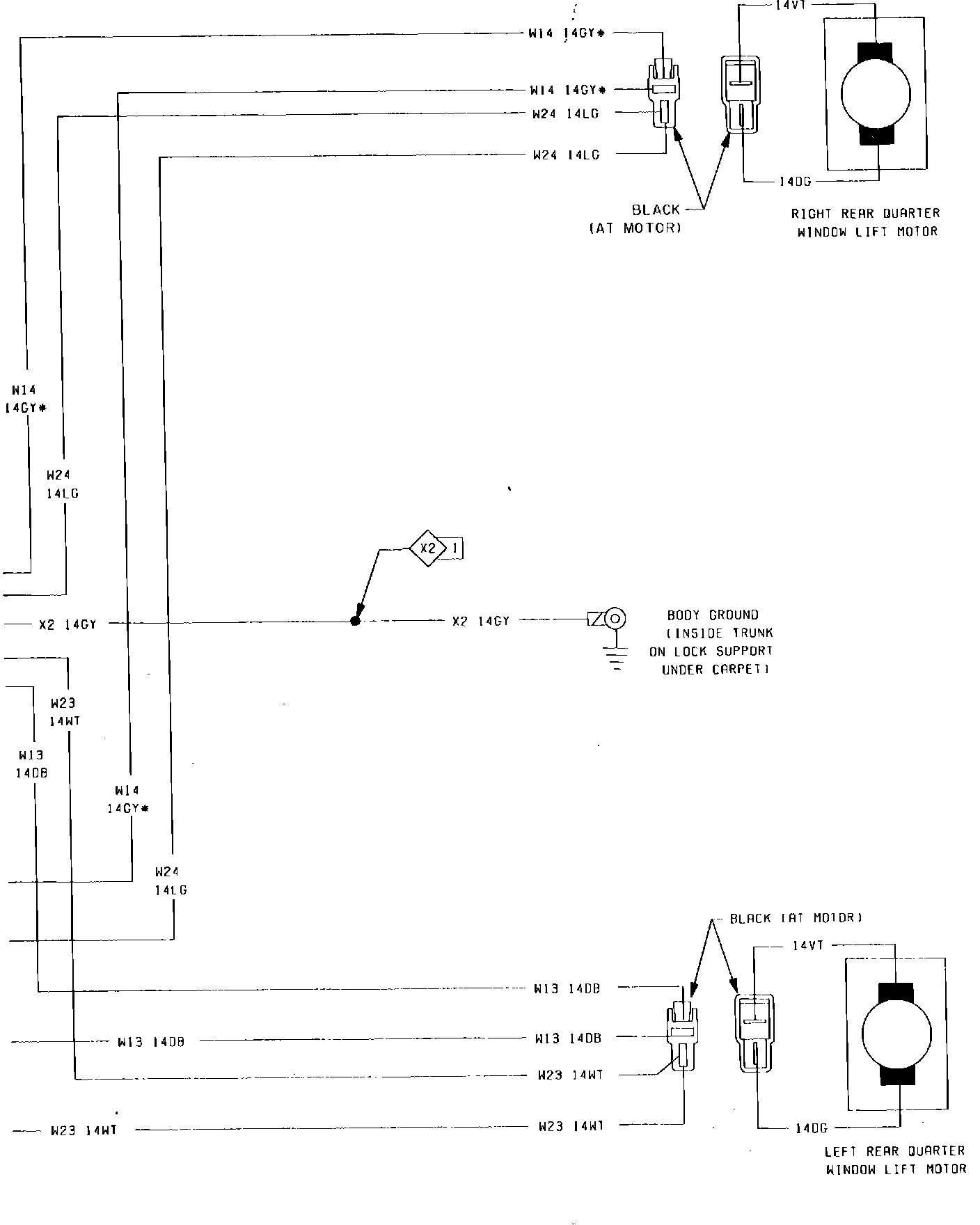

Fig. 71 Power Quarter Window Wiring Circuit (Part 2 of 2). 1985 Convertible Quarter Window:
