Home >> Chrysler >> 1985 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Power Window Circuit Diagrams >> 4 Door

4 Door

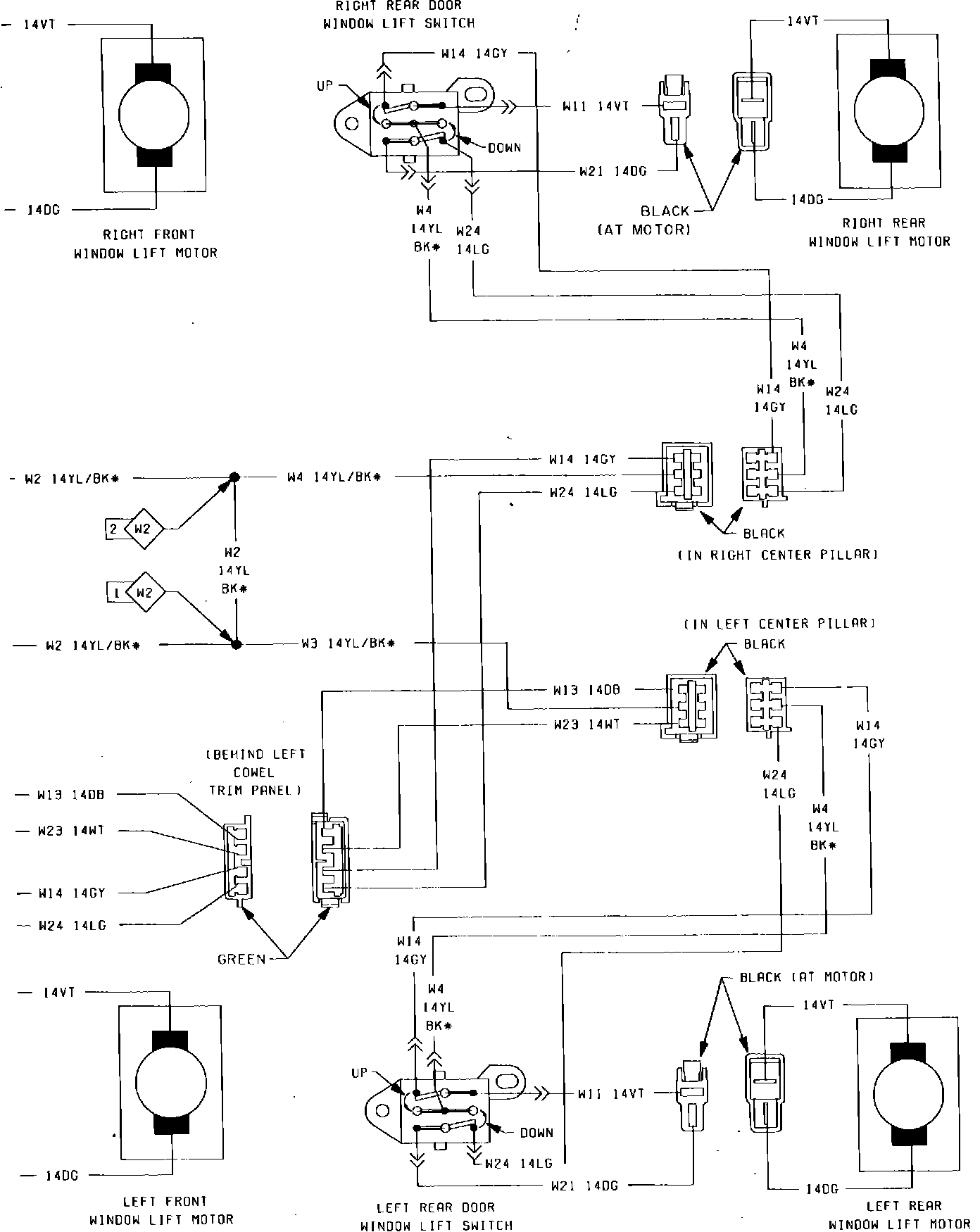

Fig. 74 Power Quarter Window Wiring Circuit (Part 1 of 2). 1985 4 Door:

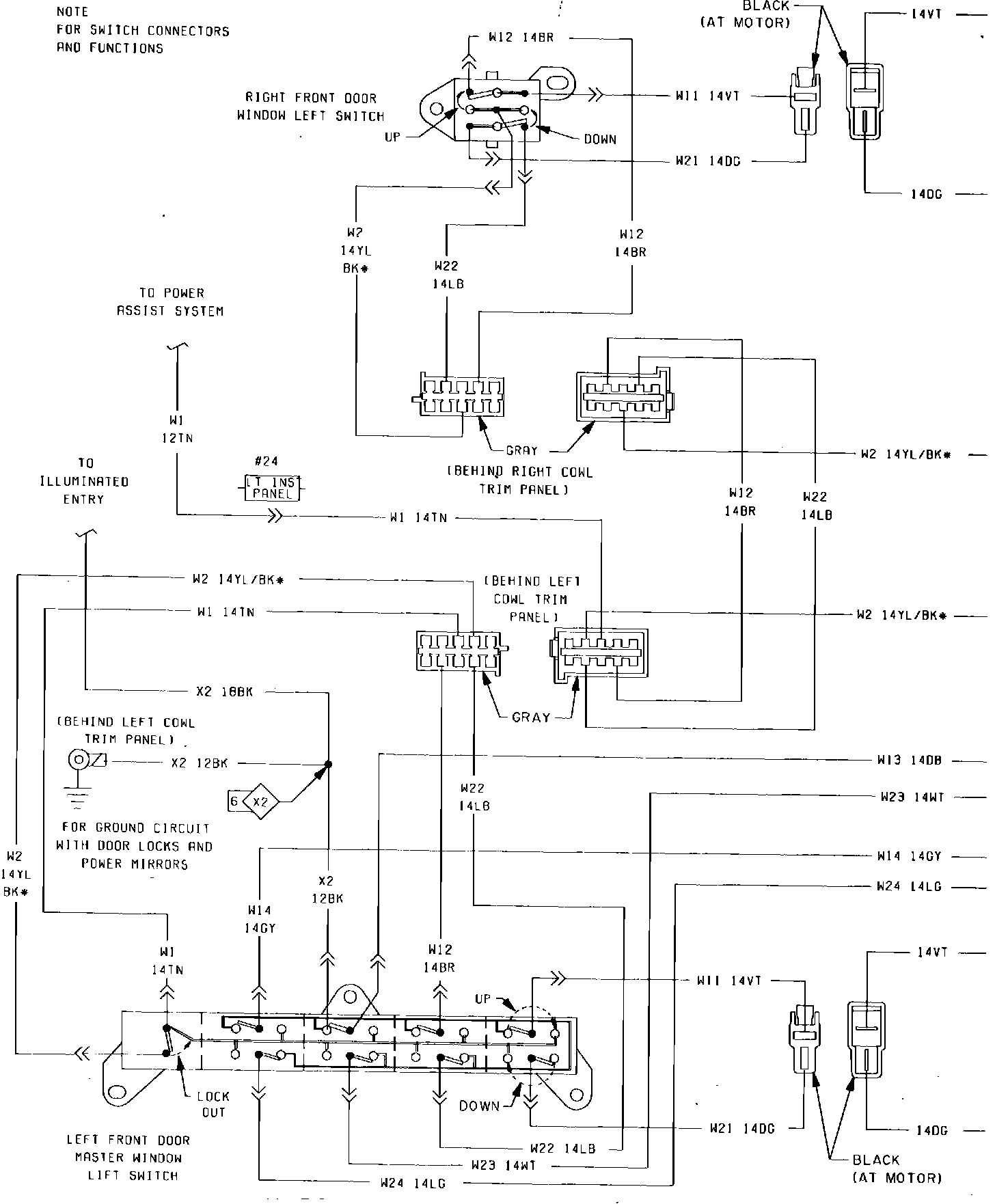

Fig. 74 Power Quarter Window Wiring Circuit (Part 2 of 2). 1985 4 Door:
