Heated Rear Window Wiring Circuit

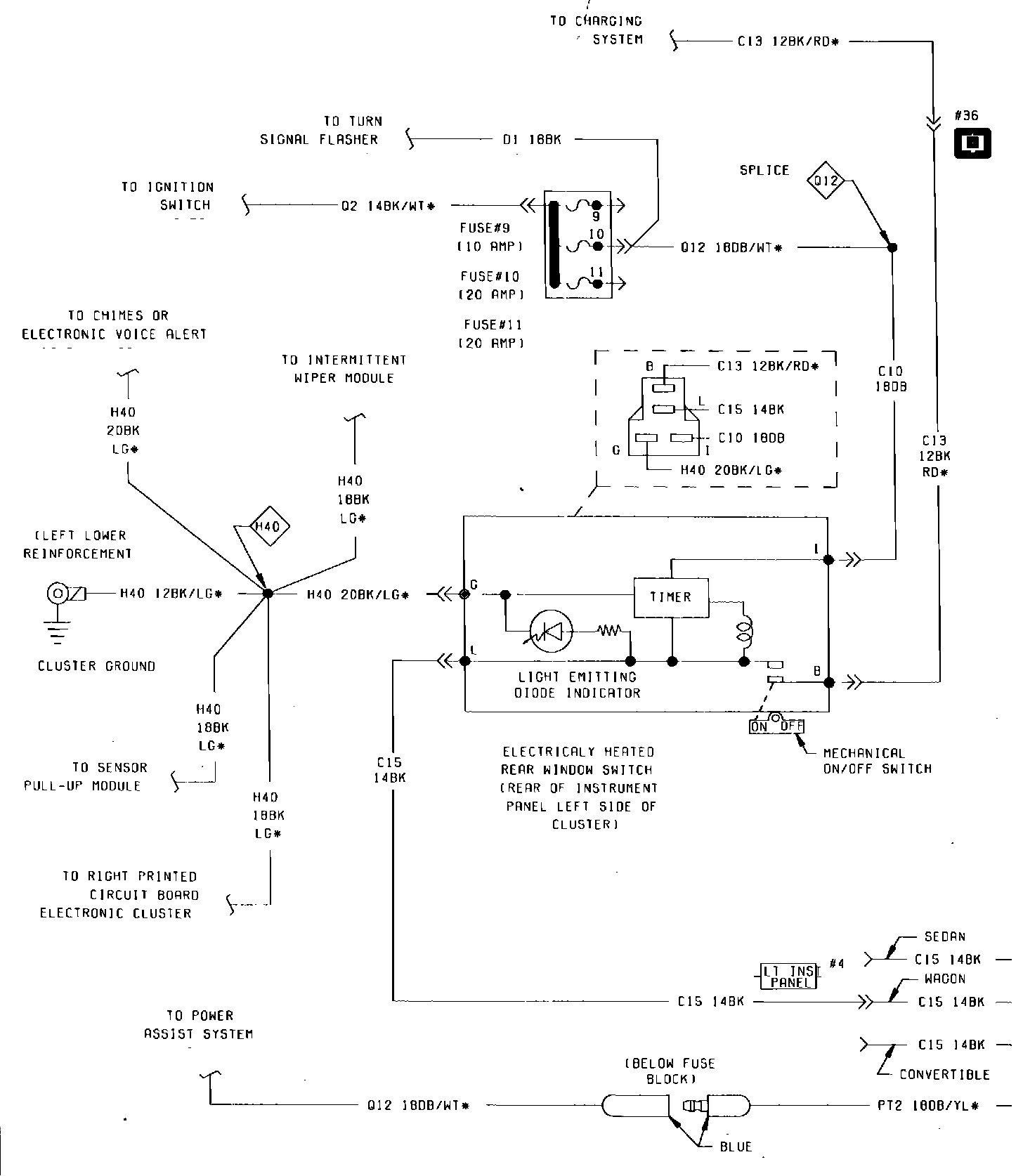

Fig. 51 Heated Rear Window Wiring Circuit (Part 1 of 2). 1985:

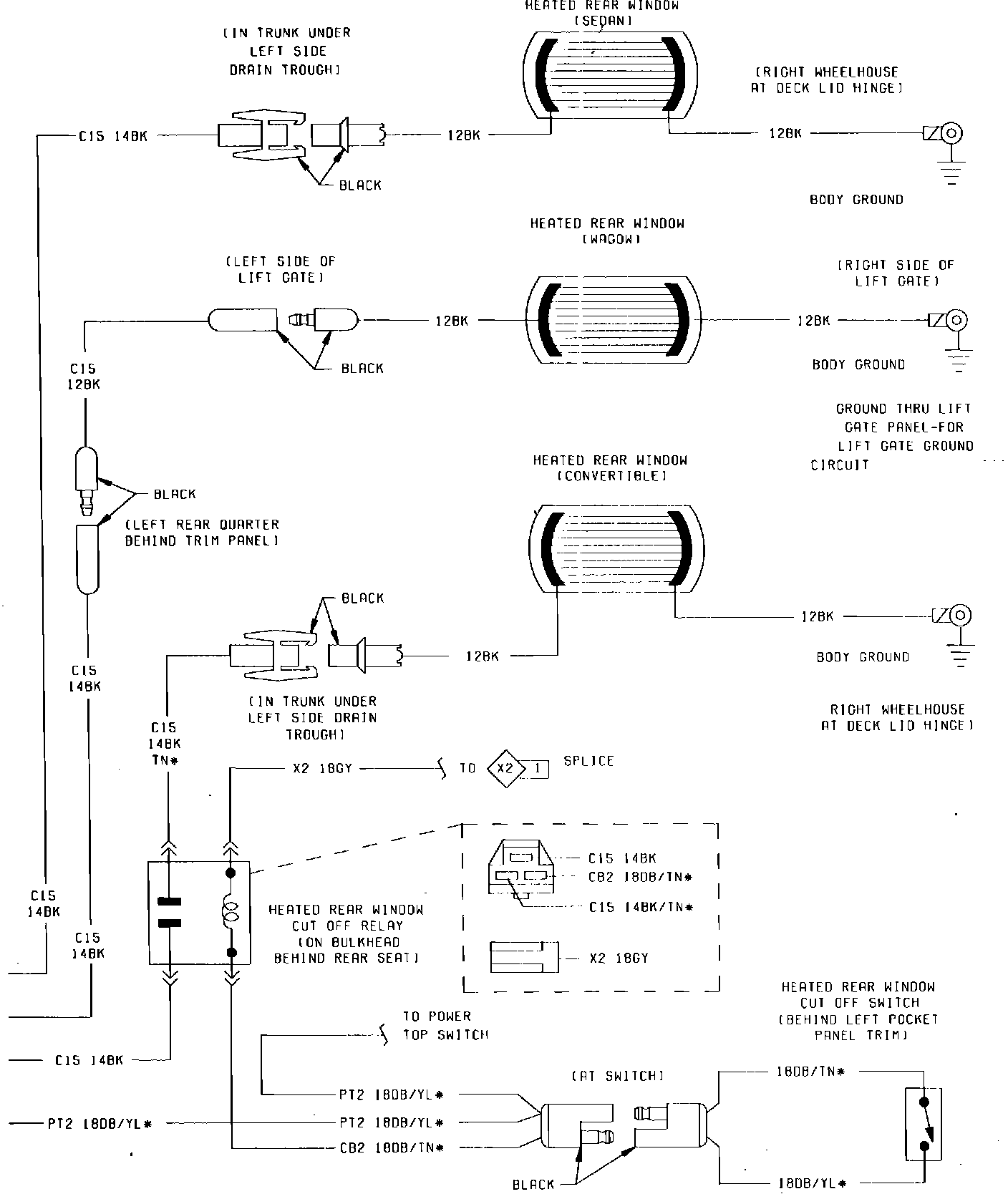

Fig. 51 Heated Rear Window Wiring Circuit (Part 2 of 2). 1985:
