Wiring Diagrams - Manual Revisions

Models:
All 1985 Front
Wheel Drive
Passenger Cars


Subject:
Front Wheel Drive
Service Manual
Revision

Index:
ELECTRICAL

Date:
April 10, 1985

No.:
08-11-85

Included are several revised pages of the Front Wheel Drive Wiring Diagram Service Manual, publication # 81-270-5004.


Glue, staple, or tape these pages in your service manual for future reference.





8-1-WIRING SPLICE LOCATIONS-ELECTRICAL

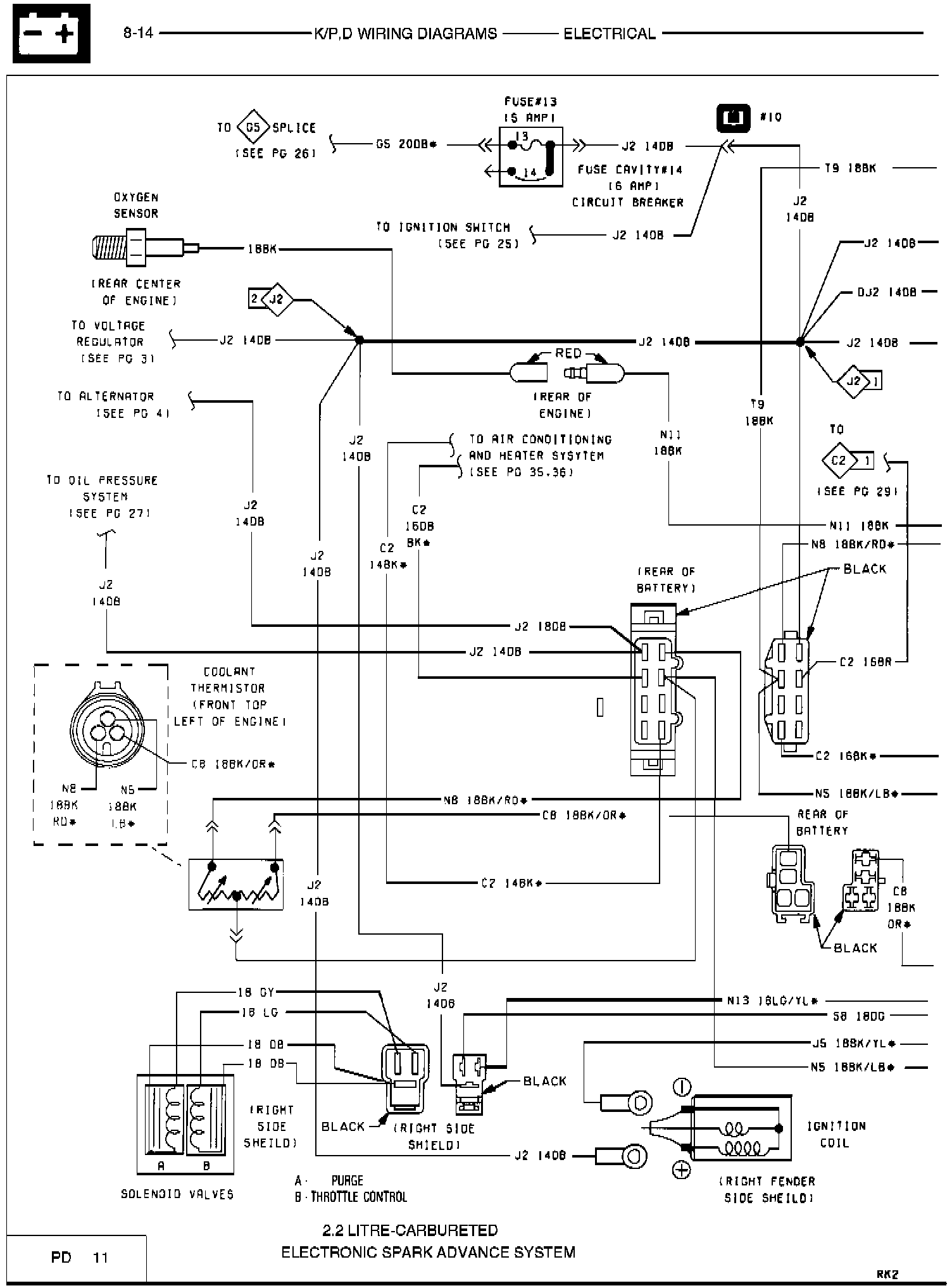

8-14-K/P,D WIRING DIAGRAMS-ELECTRICAL

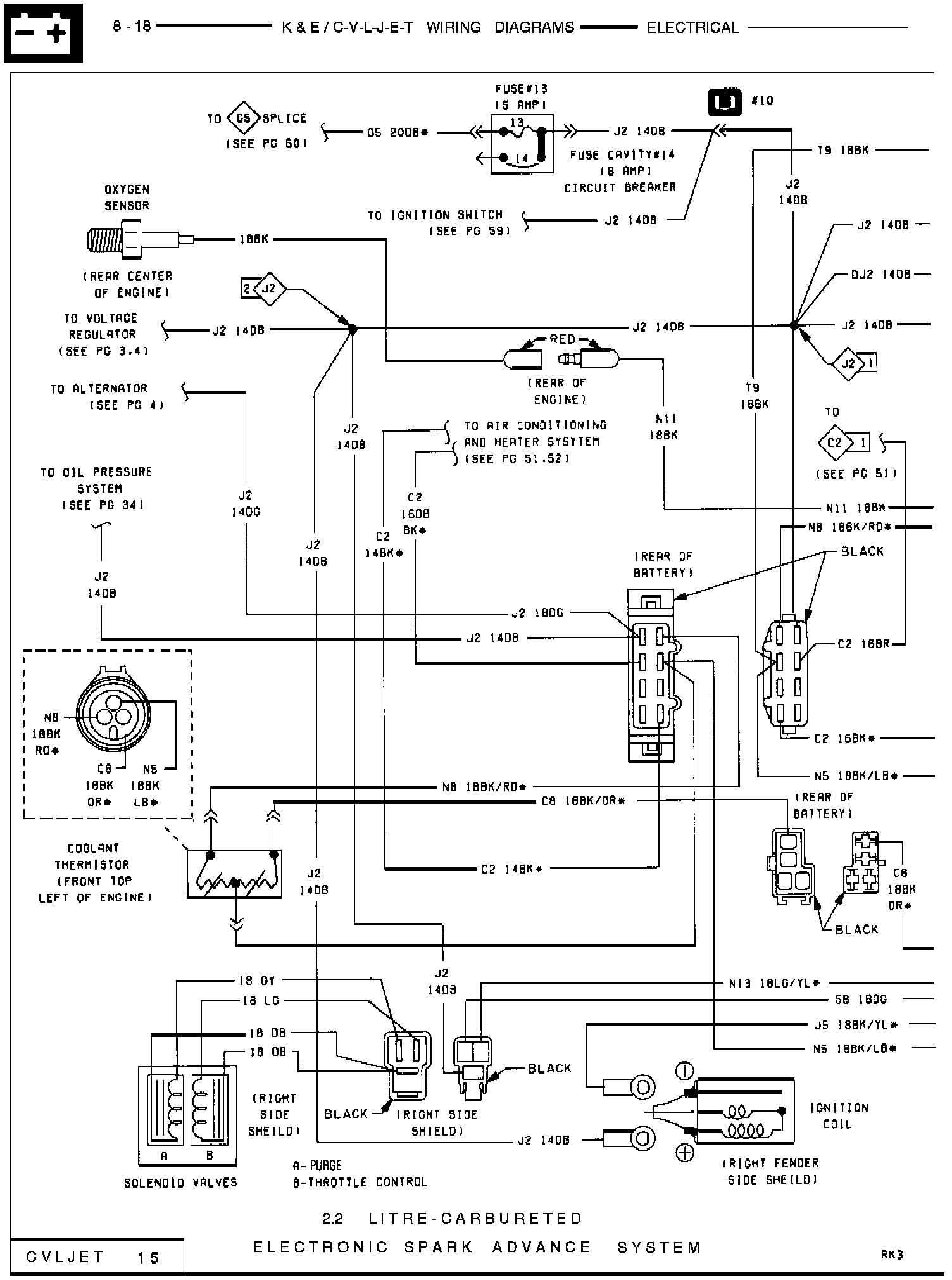

8-18-K & E/C-V-L-J-E-T WIRING DIAGRAMS-ELECTRICAL





8-20-L/M,Z WIRING DIAGRAMS-ELECTRICAL

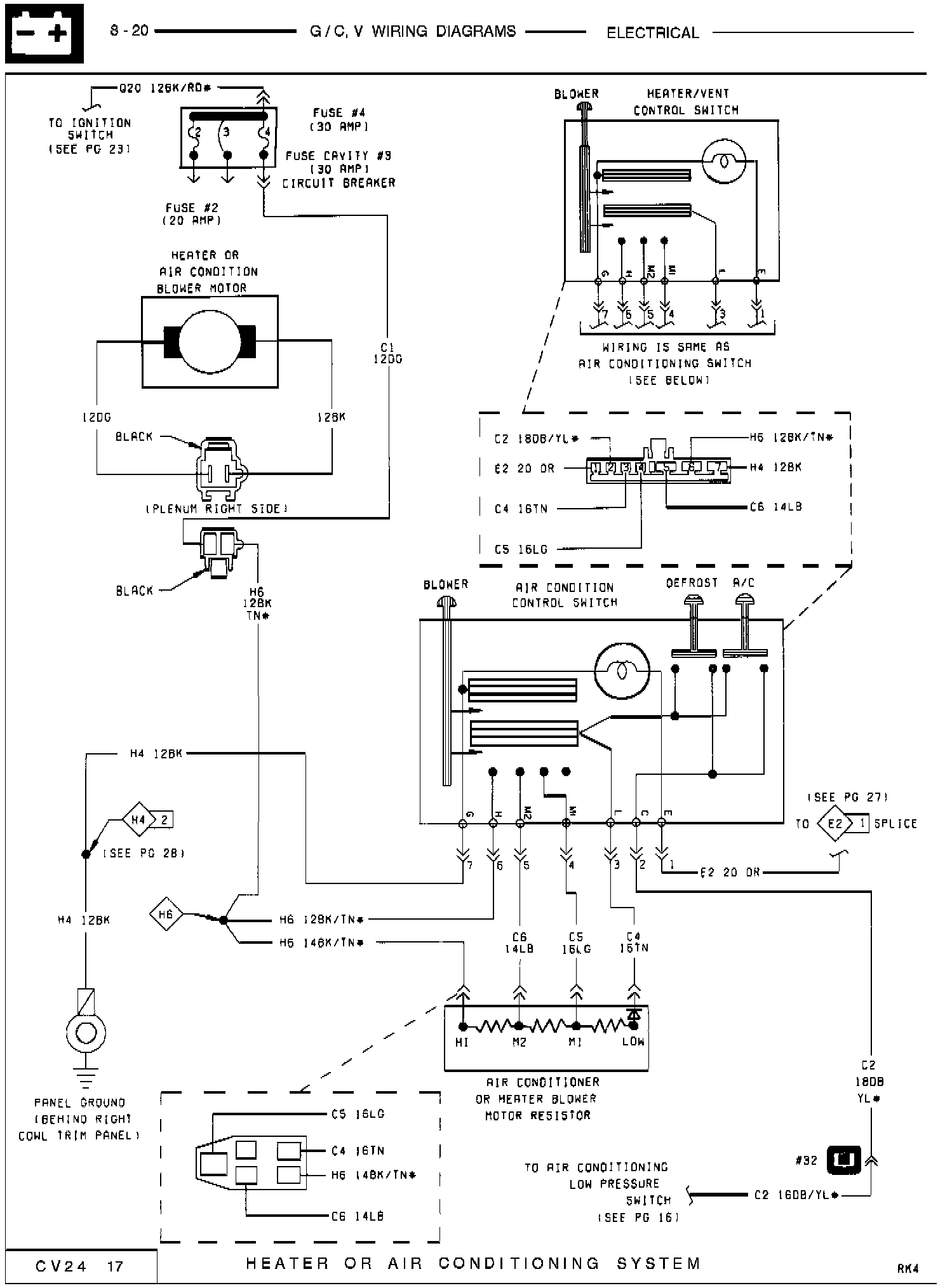

8-20-G/C,V WIRING DIAGRAMS-ELECTRICAL

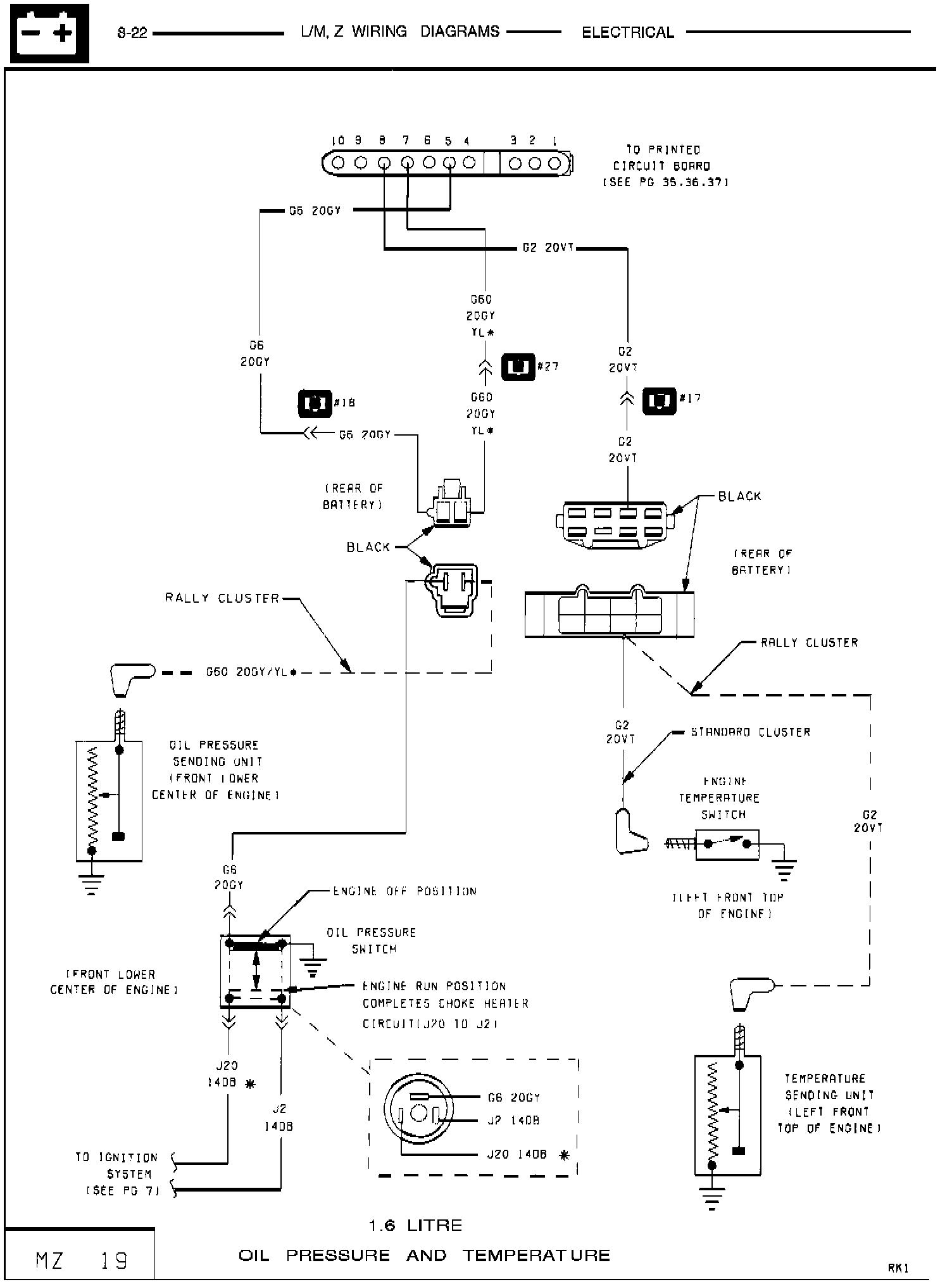

8-22-L/M,Z WIRING DIAGRAMS-ELECTRICAL

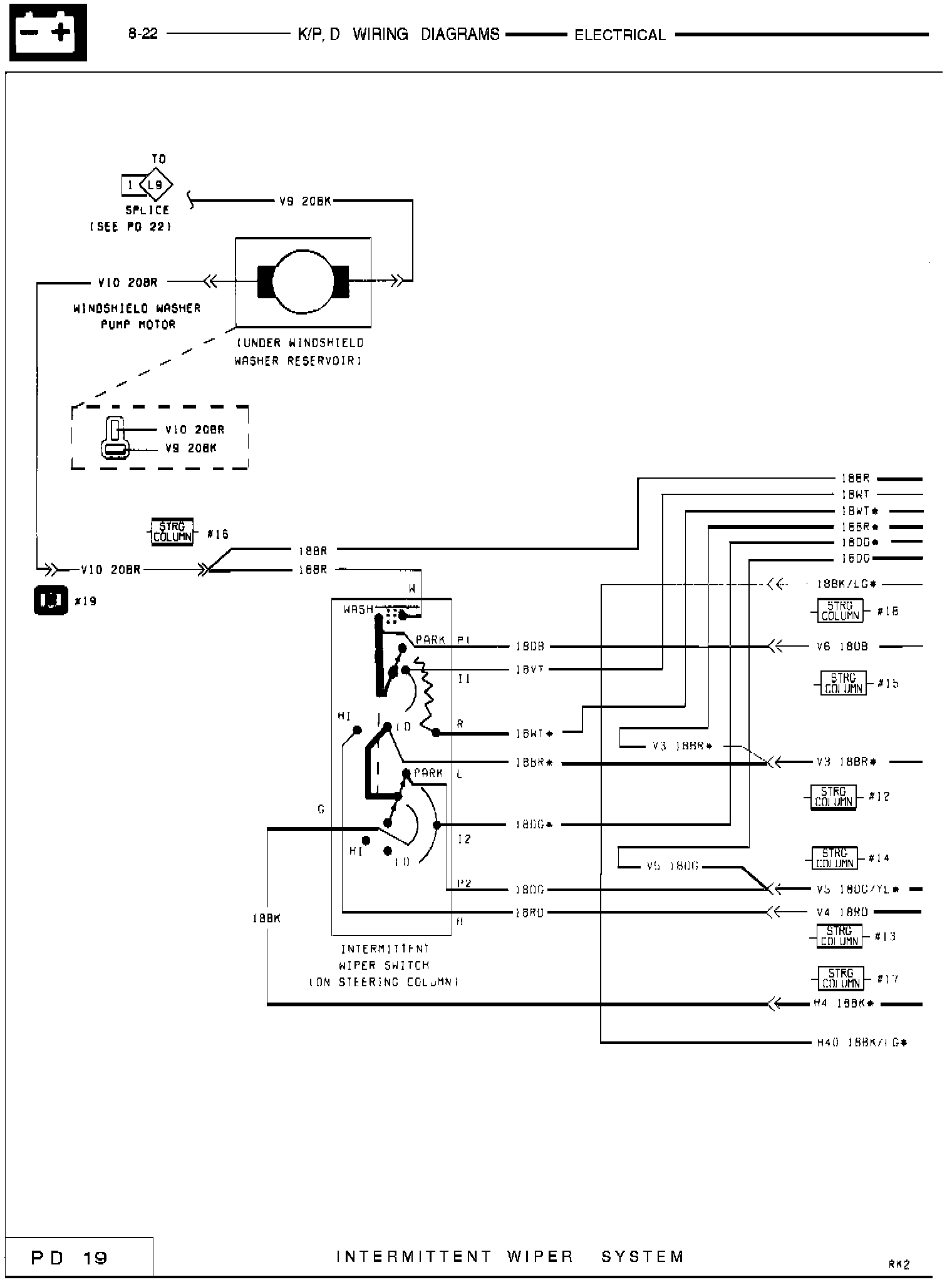

8-22-K/P,D WIRING DIAGRAMS-ELECTRICAL

�0>:

8-22-G/C,V WIRING DIAGRAMS-ELECTRICAL

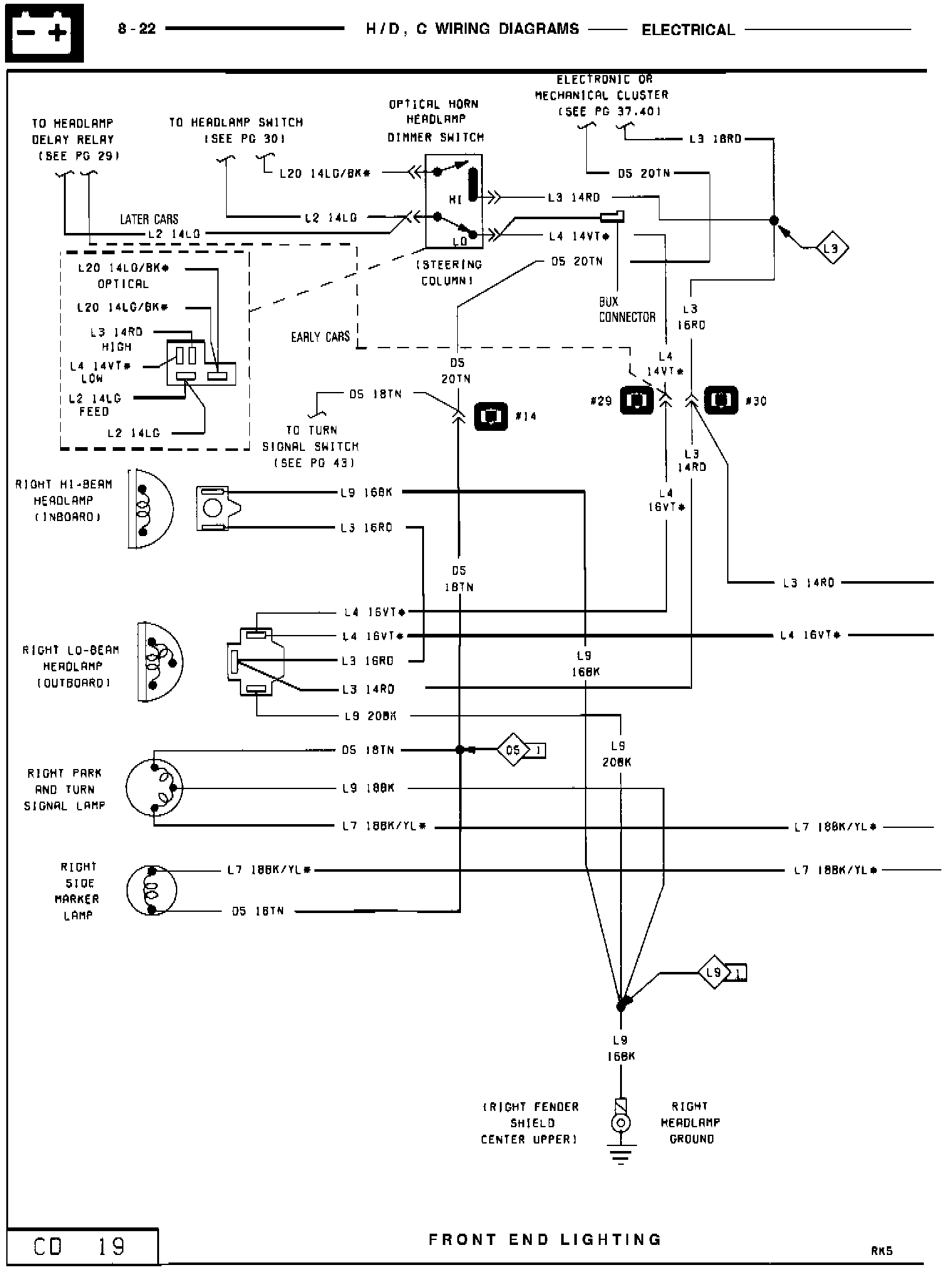

8-22-H/D,C WIRING DIAGRAMS ELECTRICAL

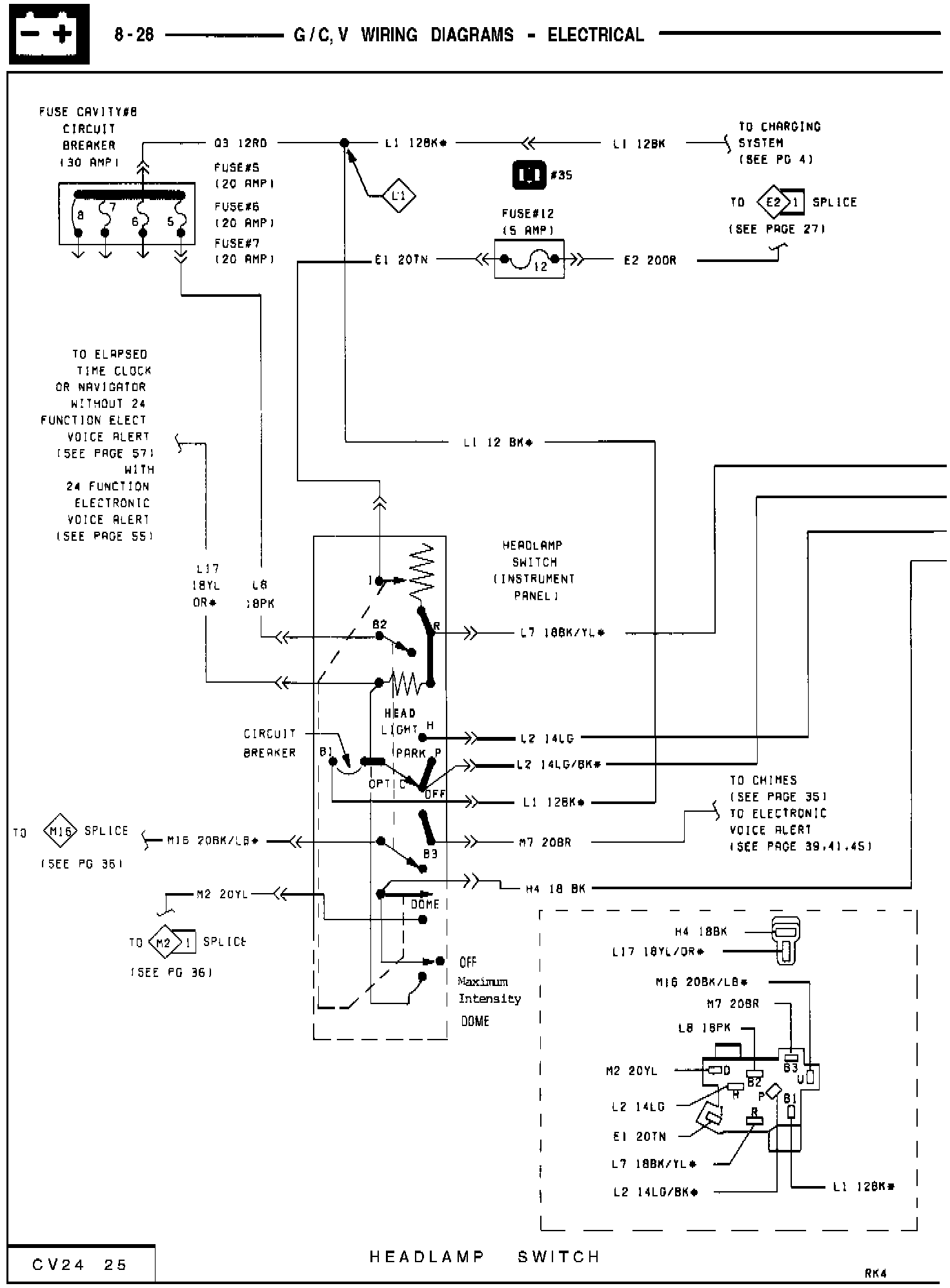

8-28-G/C,V WIRING DIAGRAMS-ELECTRICAL





8-32-K & E/C-V-L-J-E-T WIRING DIAGRAMS-ELECTRICAL

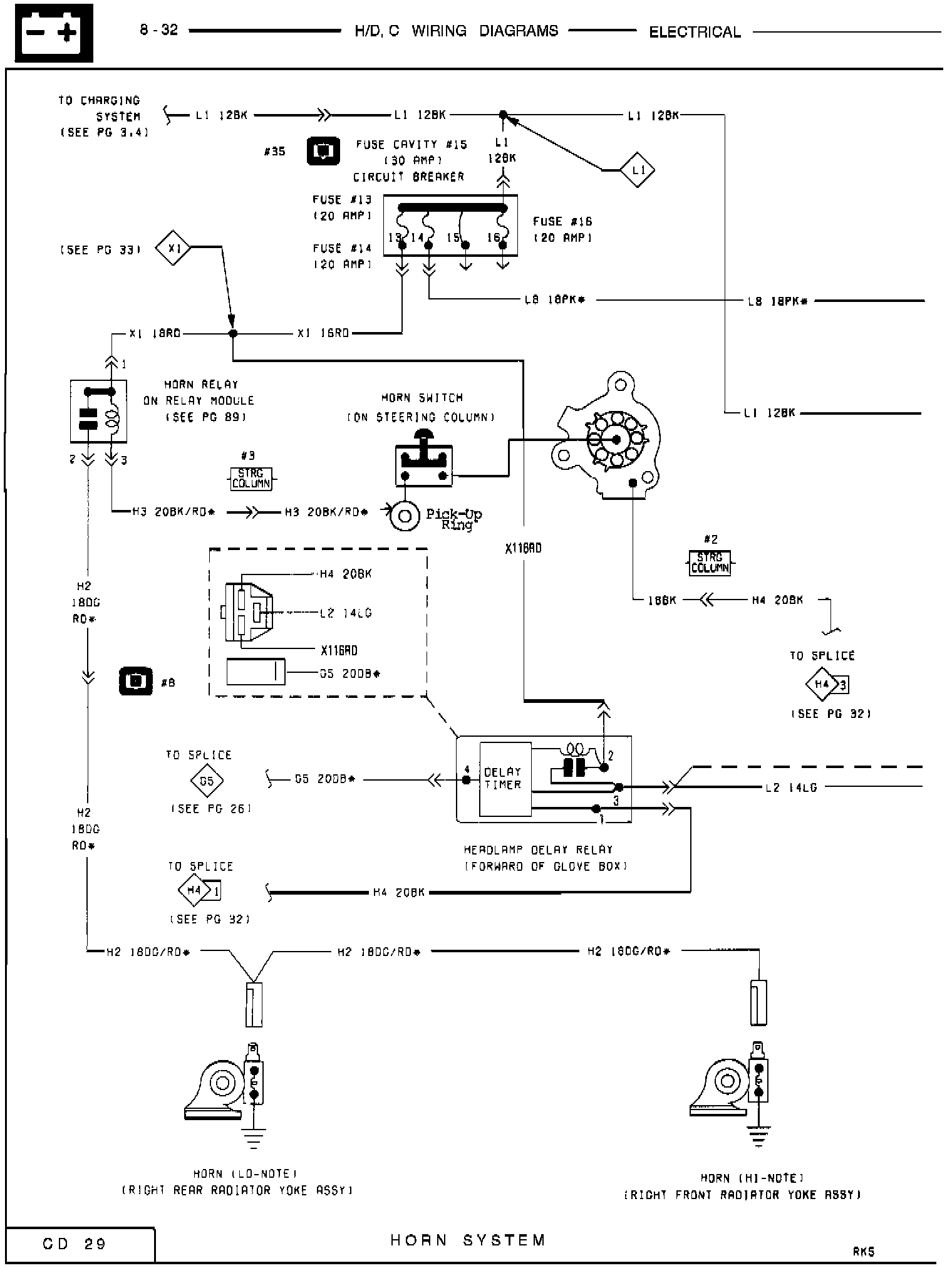

8-32-H/D,C WIRING DIAGRAMS-ELECTRICAL





8-33-H/D,C WIRING DIAGRAMS-ELECTRICAL

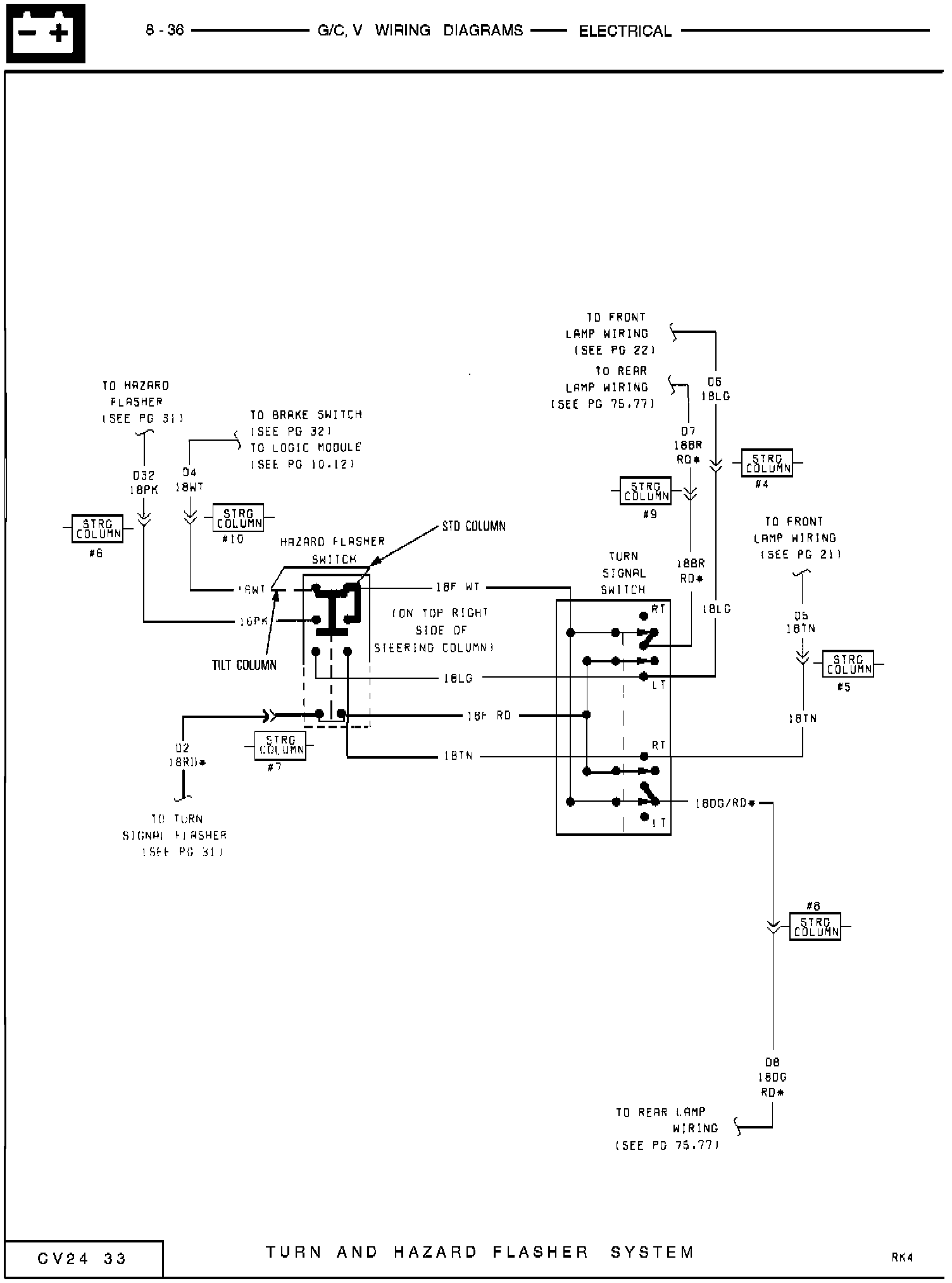

8-36-G/C,V WIRING DIAGRAMS-ELECTRICAL

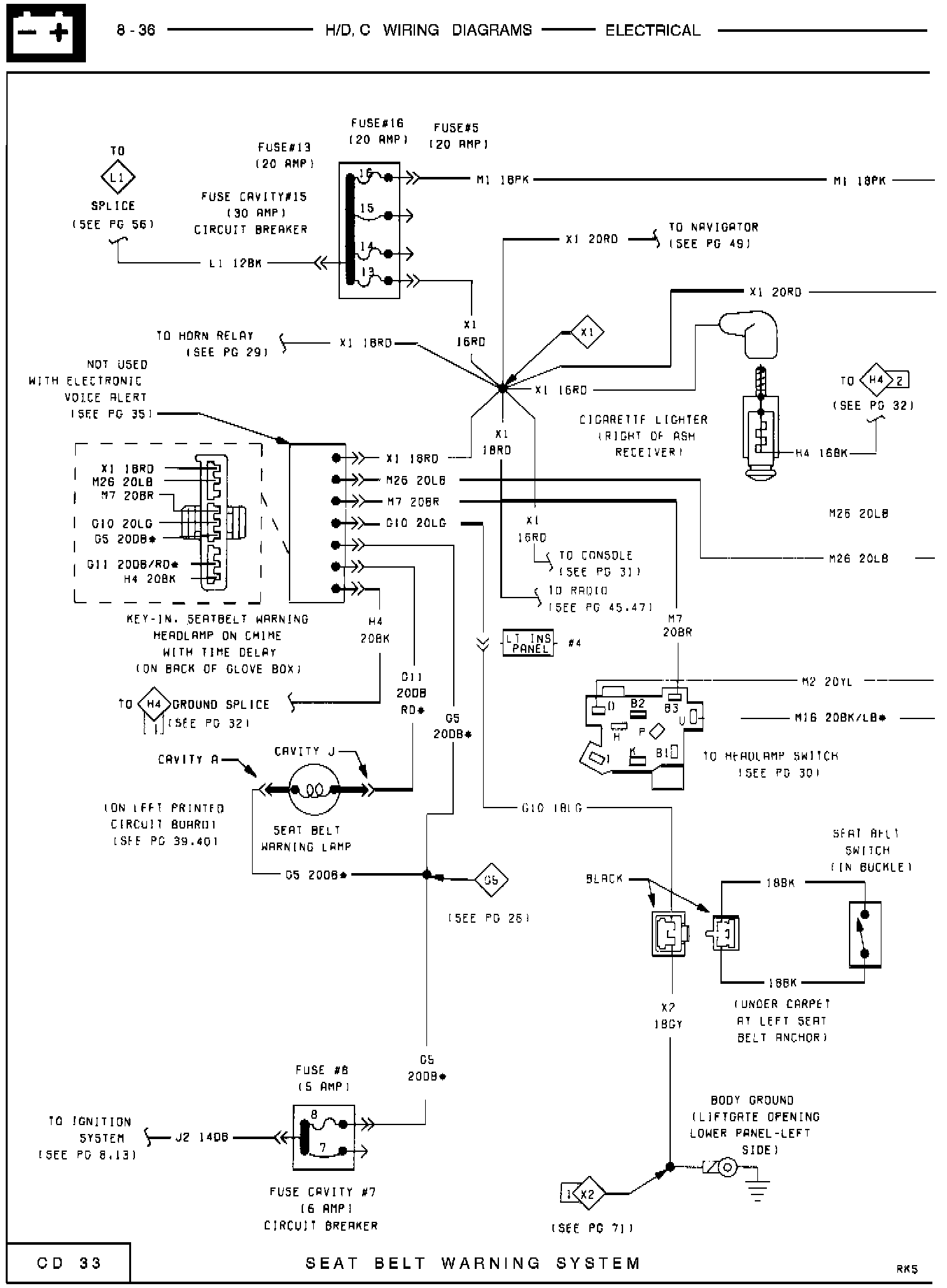

8-36-H/D,C WIRING DIAGRAMS-ELECTRICAL





8-39-K/P,D WIRING DIAGRAMS-ELECTRICAL

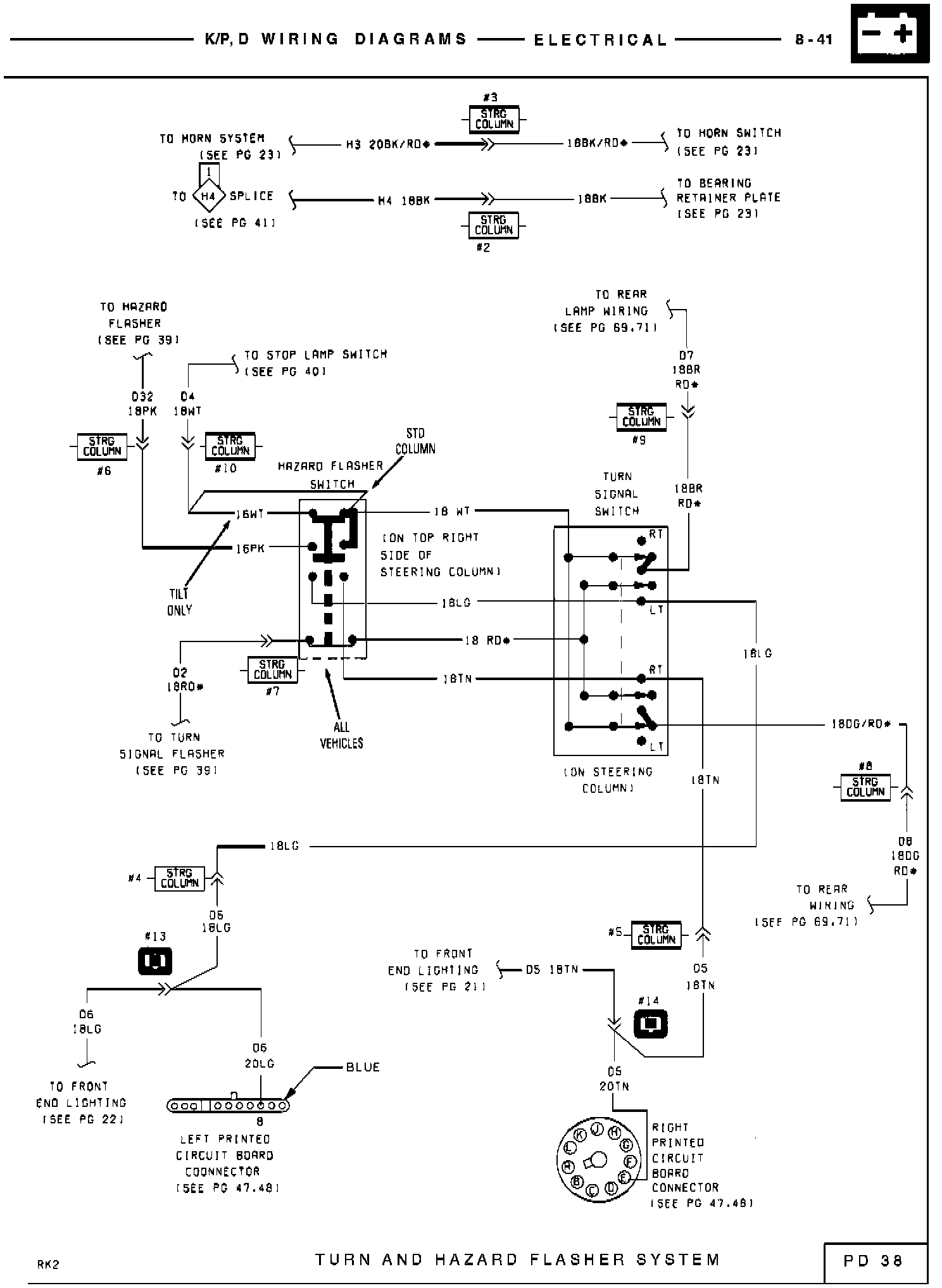

8-41-K/P,D WIRING DIAGRAMS-ELECTRICAL

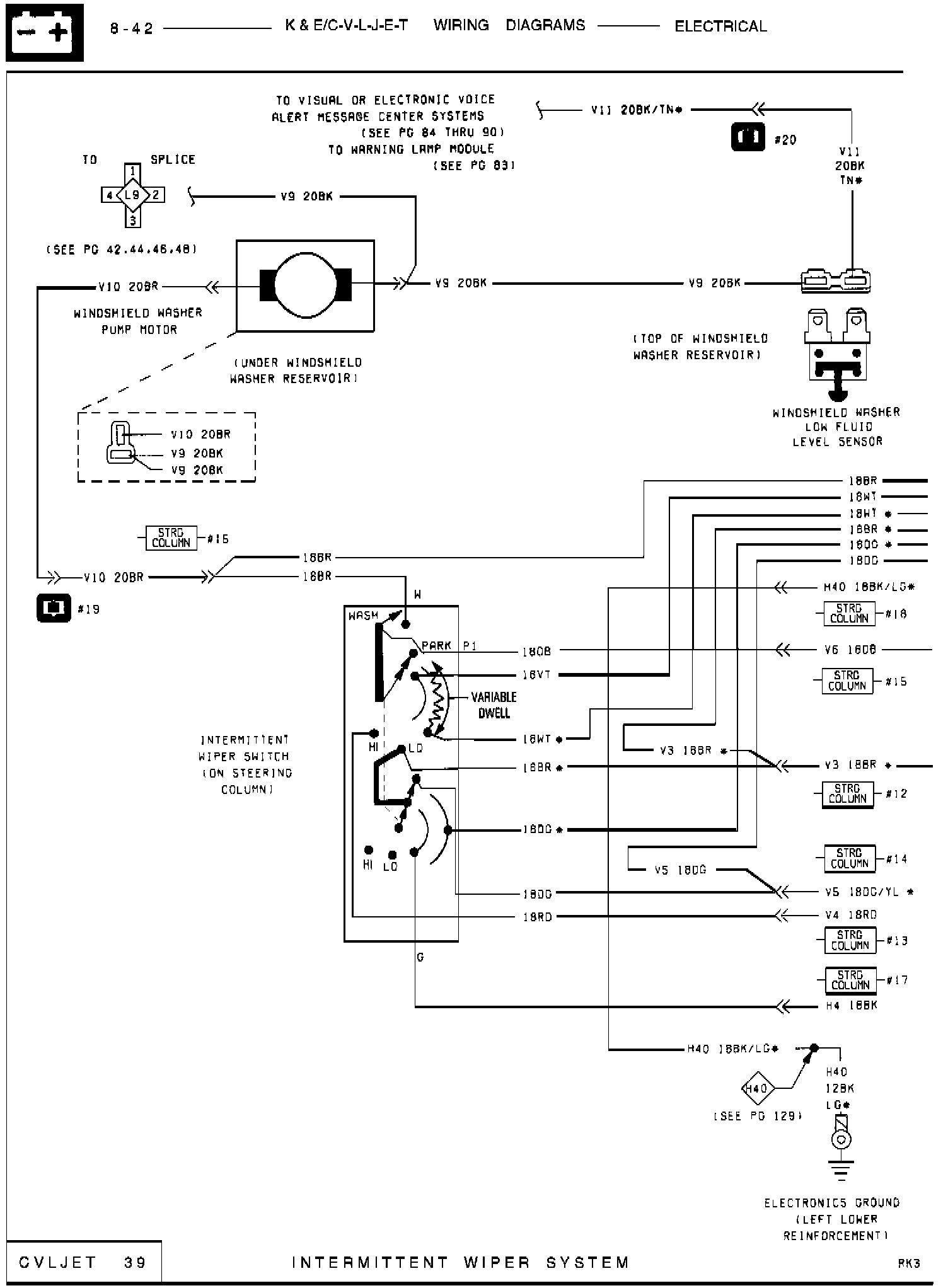

8-42-K & E/C-V-L-J-E-T WIRING DIAGRAMS-ELECTRICAL





8-43-H/D,C WIRING DIAGRAMS-ELECTRICAL

�>:

8-43-WIRING SPLICE LOCATIONS-ELECTRICAL

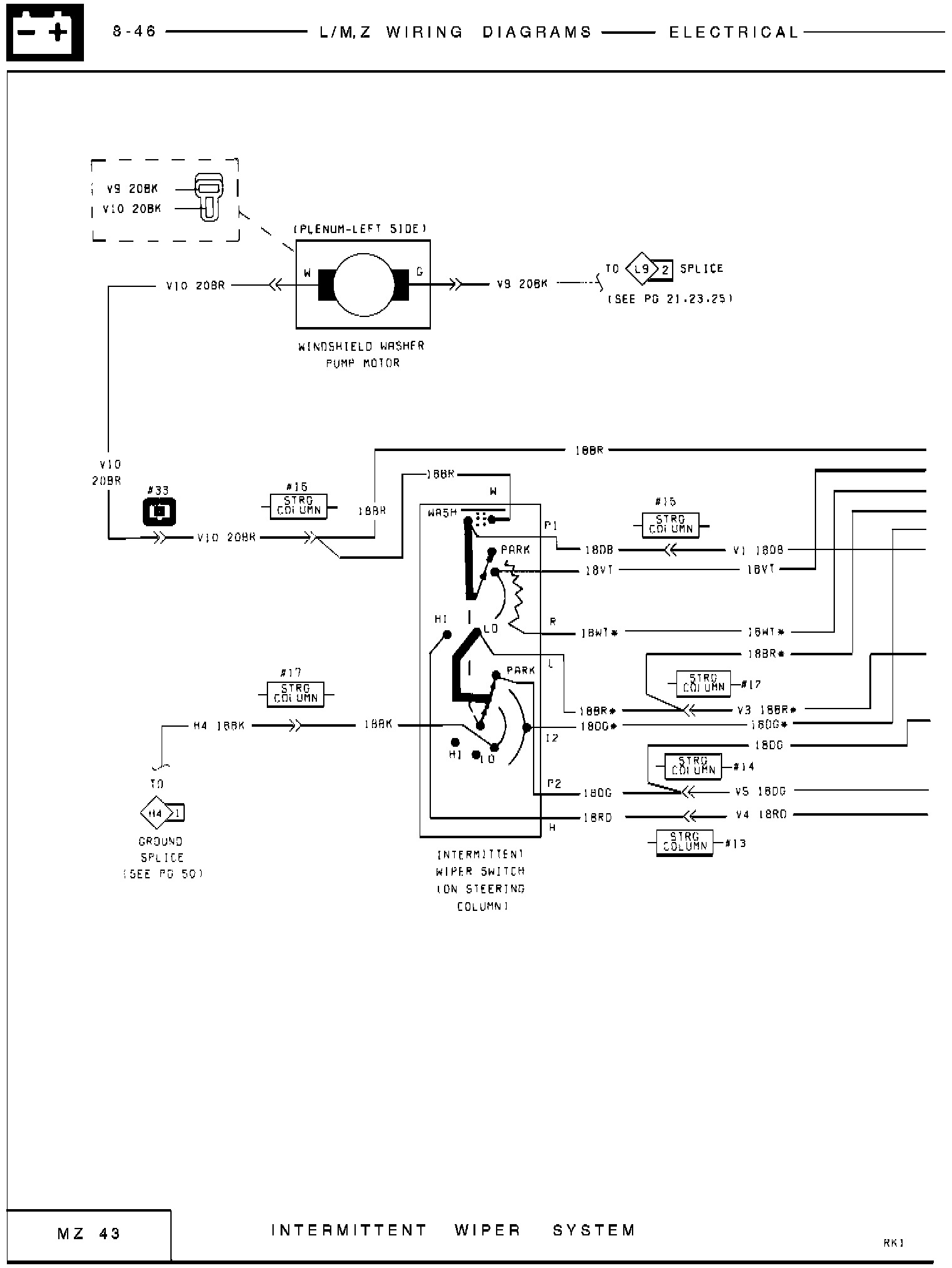

8-46-L/M,Z WIRING DIAGRAMS-ELECTRICAL

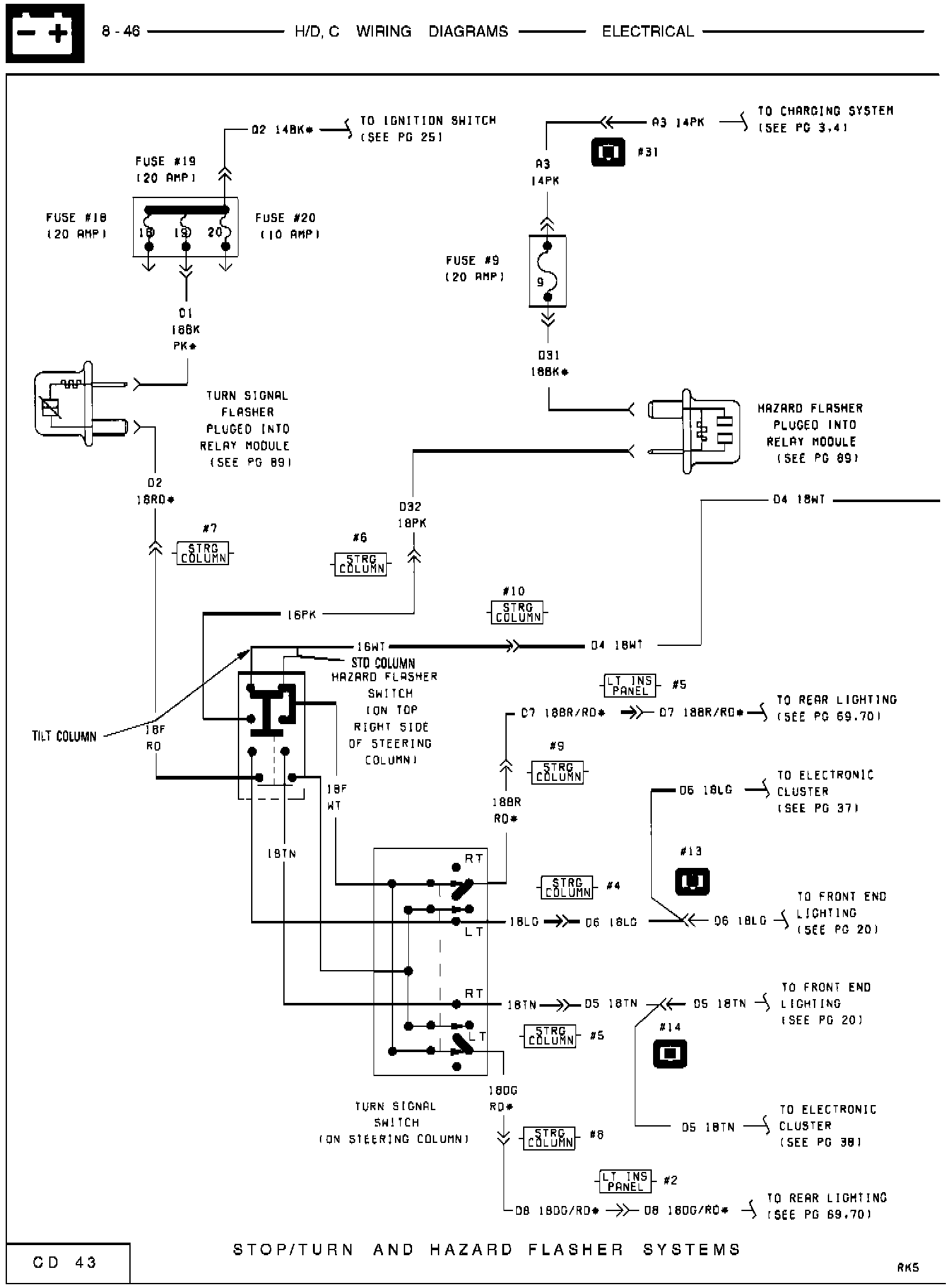

8-46-H/D,C WIRING DIAGRAMS-ELECTRICAL





8-52-K/P,D WIRING DIAGRAMS-ELECTRICAL





8-53-K & E/C-V-L-J-E-T WIRING DIAGRAMS-ELECTRICAL

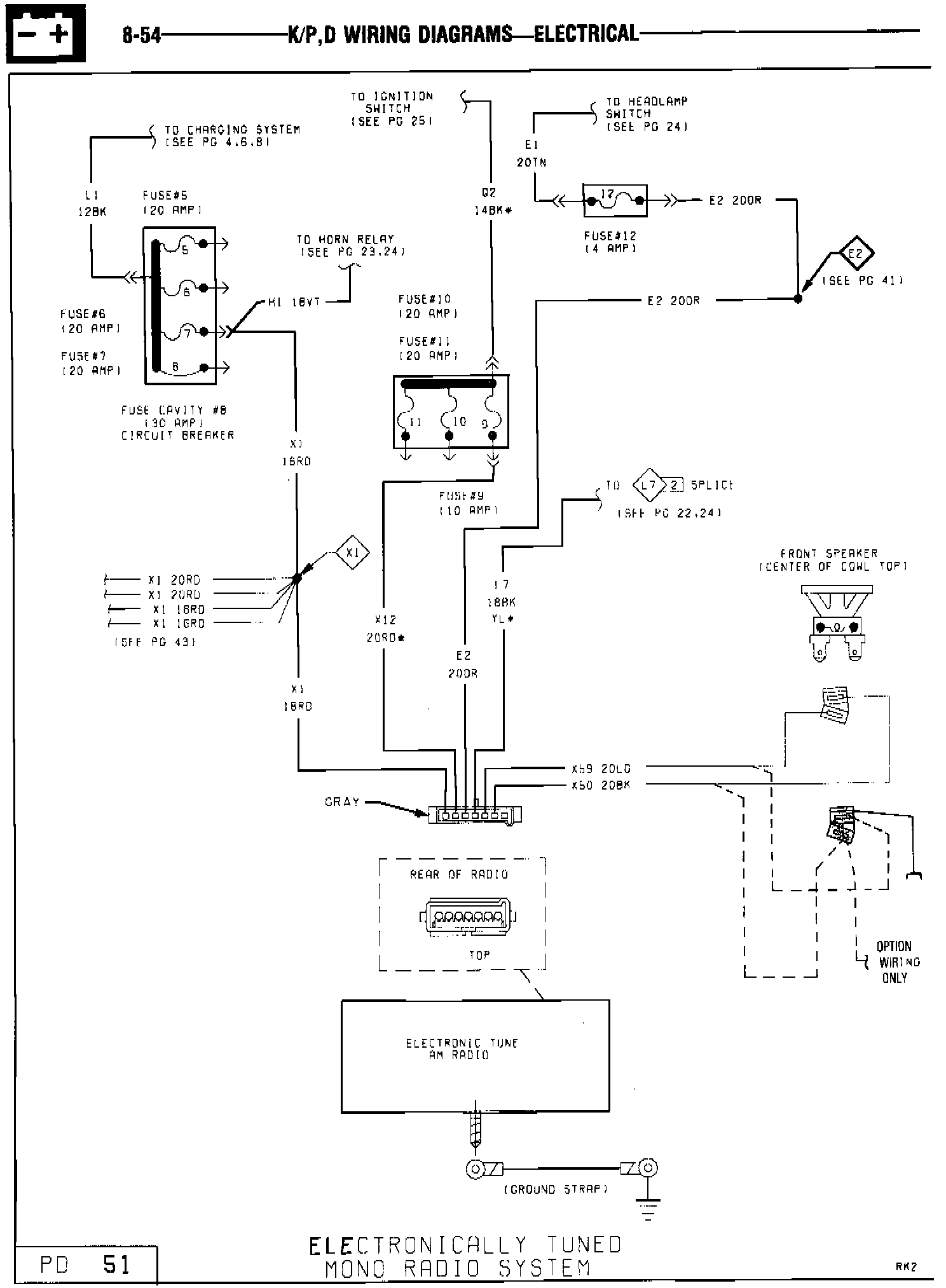

8-54-K/P,D WIRING DIAGRAMS-ELECTRICAL

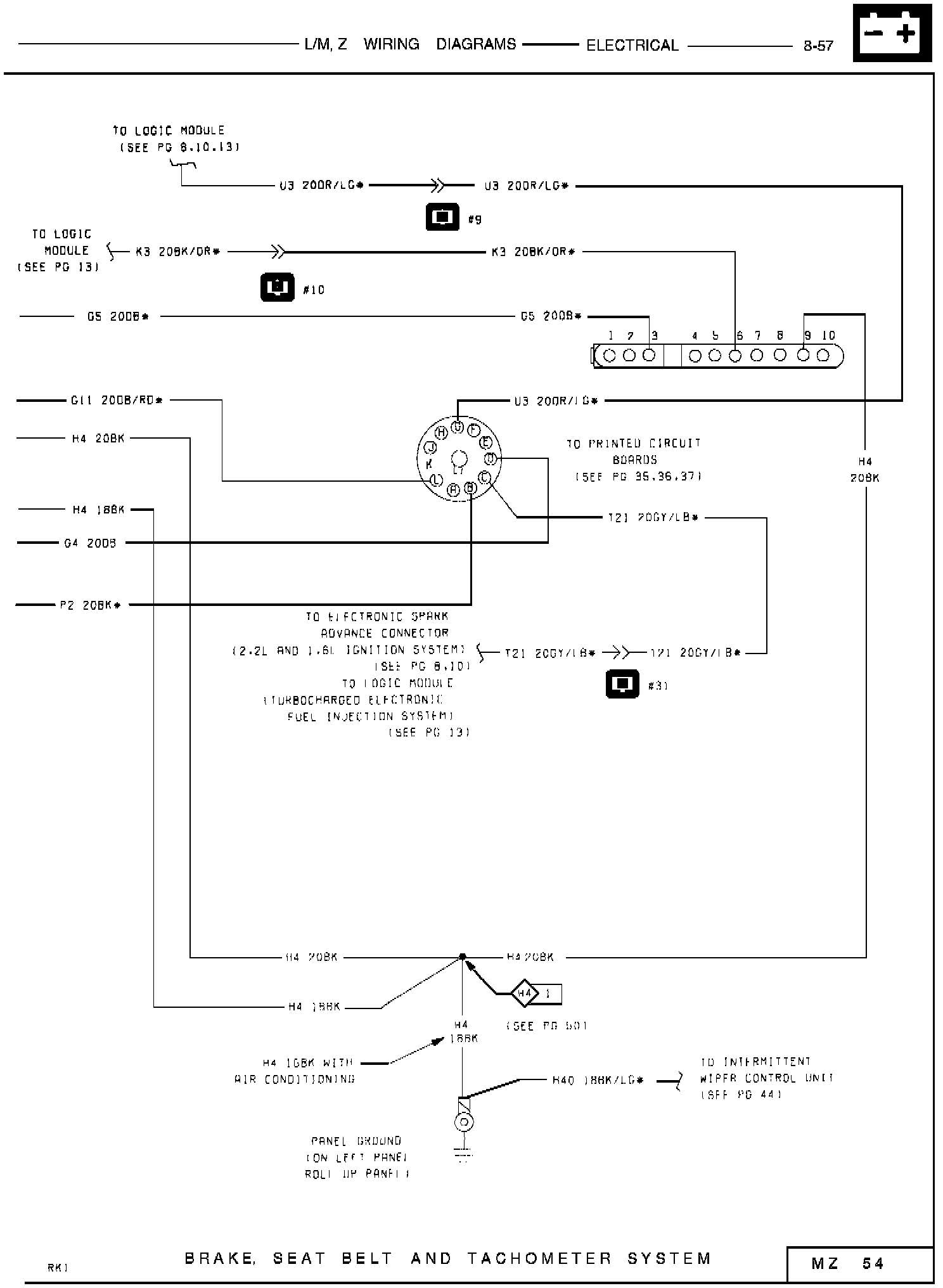

8-57-L/M,Z WIRING DIAGRAMS-ELECTRICAL

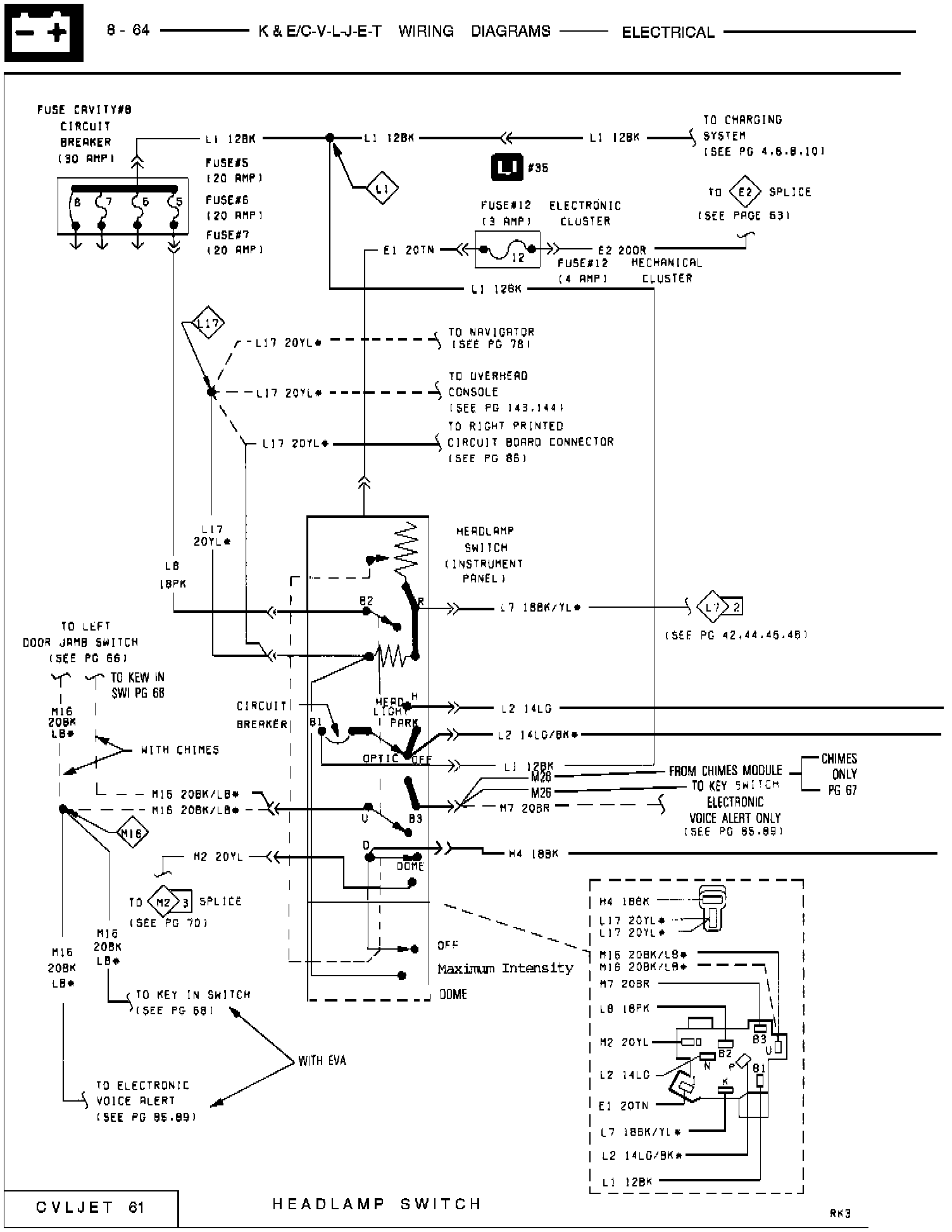

8-64-K & E/C-V-L-J-E-T WIRING DIAGRAMS-ELECTRICAL





8-70-K & E/C-V-L-J-E-T WIRING DIAGRAMS-ELECTRICAL





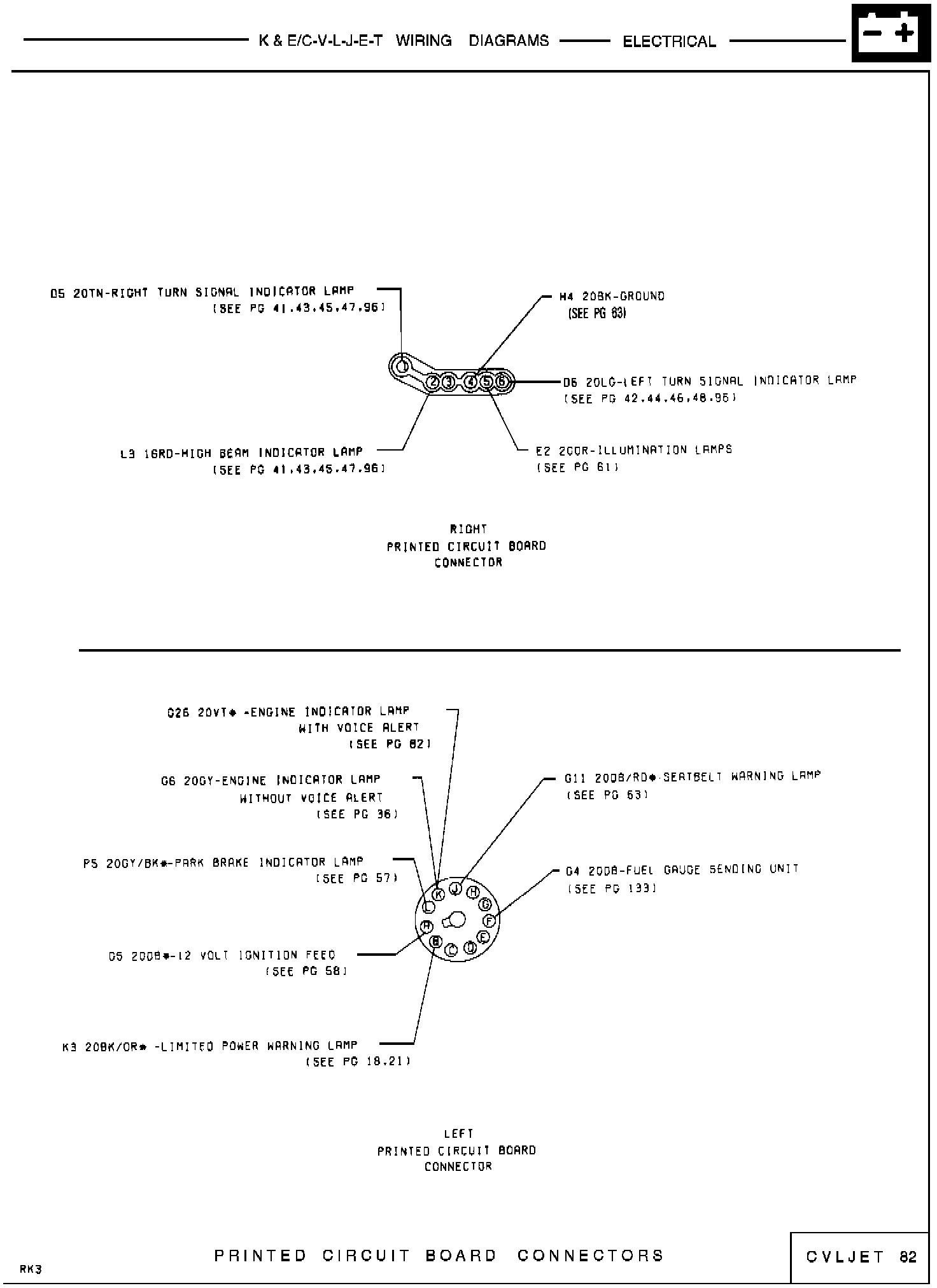

8-85-K & E/C-V-L-J-E-T WIRING DIAGRAMS



POLICY: Information only
