Clearance and Design Specifications

Specifications

A-460 & A-525 Transaxle Models

DIFFERENTIAL BEARING SHIM CHART

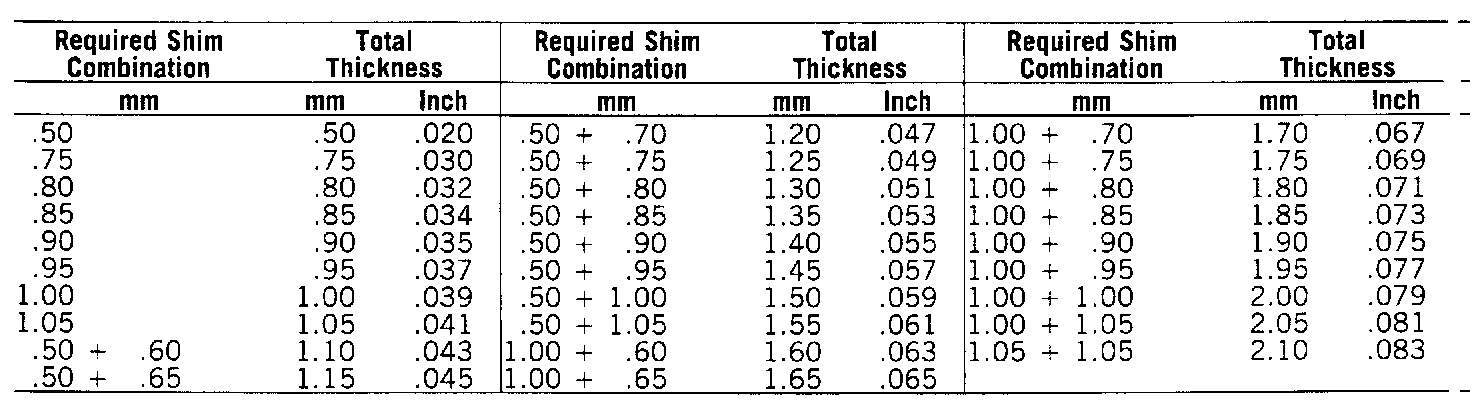

INPUT SHAFT SHIM CHART
