Home >> Chrysler >> 1985 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive Axles, Bearings and Joints

Drive Axles, Bearings and Joints

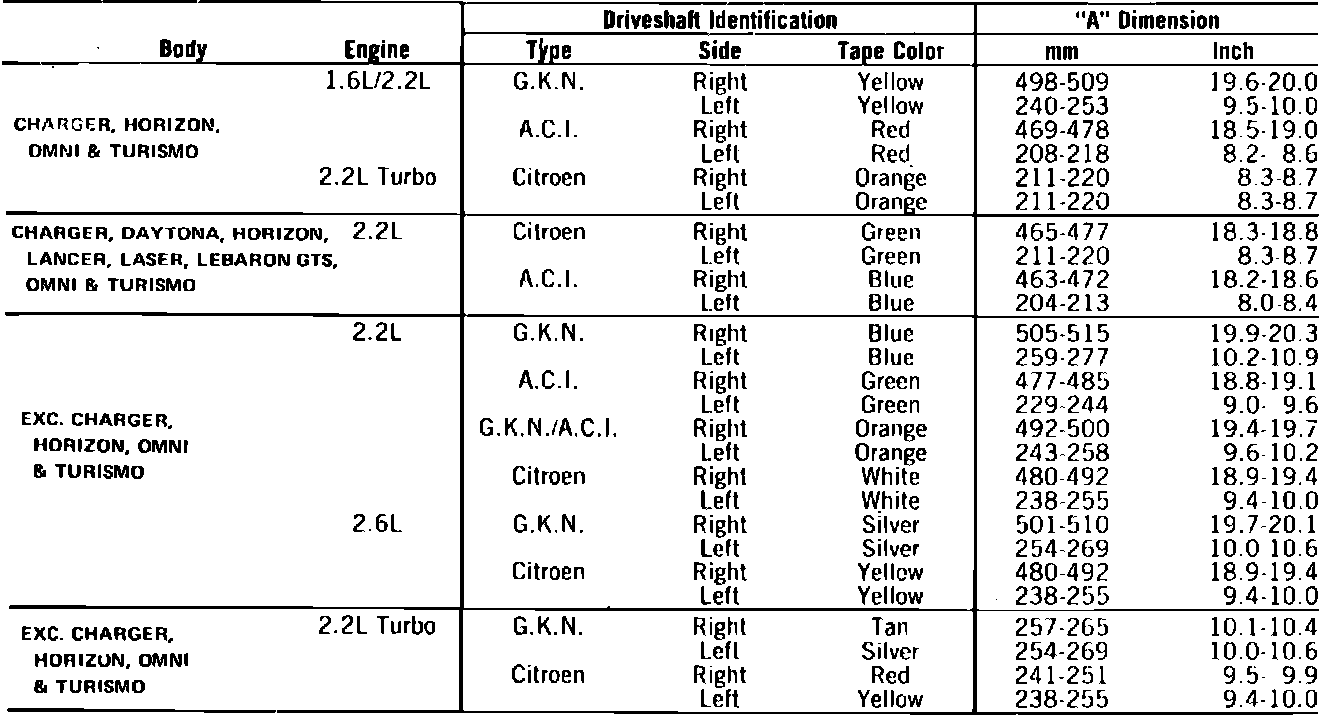

Fig. 12 Driveshaft length specifications. 1985:
