Headlamp Switch

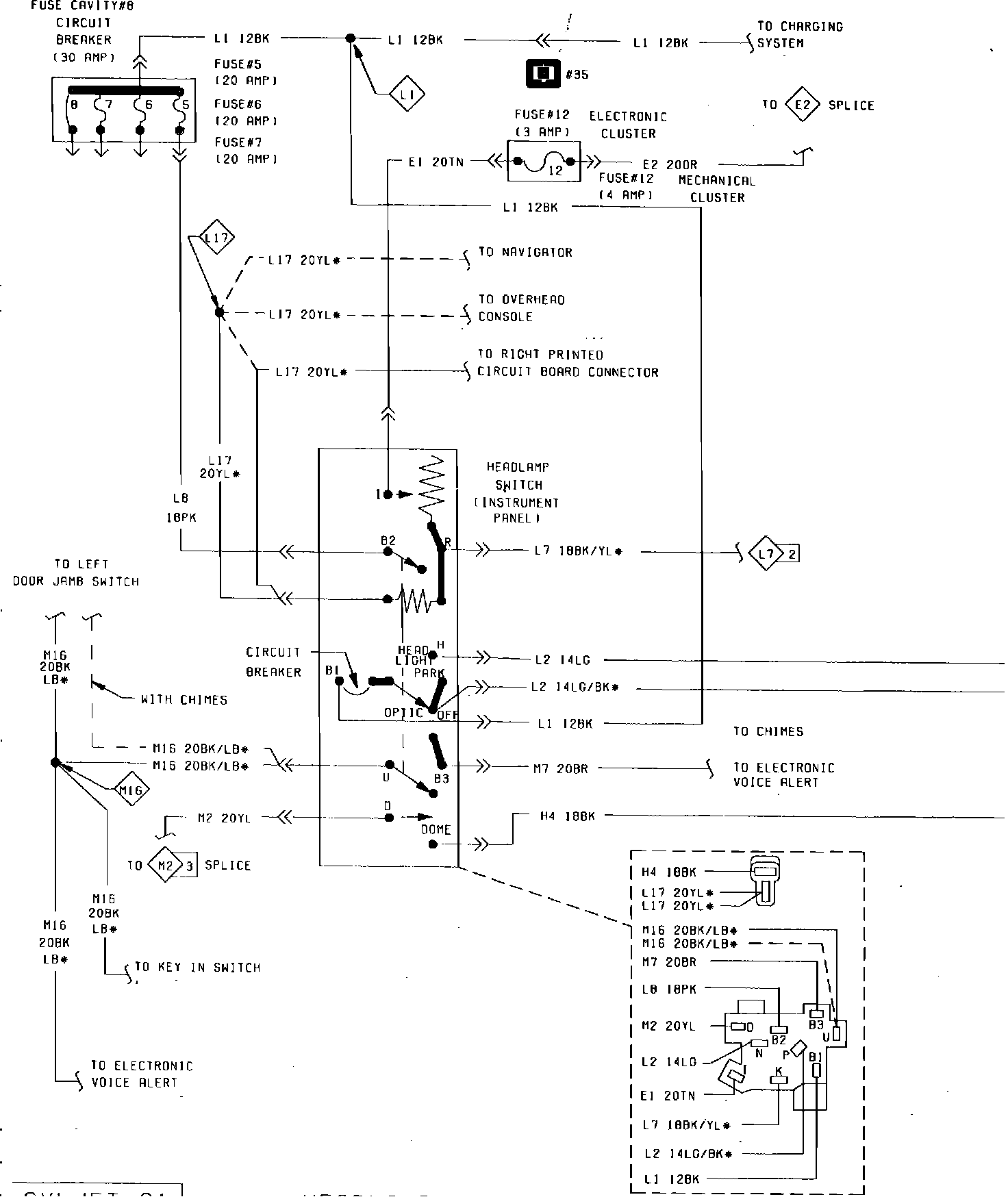

Fig. 48 Headlamp Switch Wiring Circuit (Part 1). 1985:

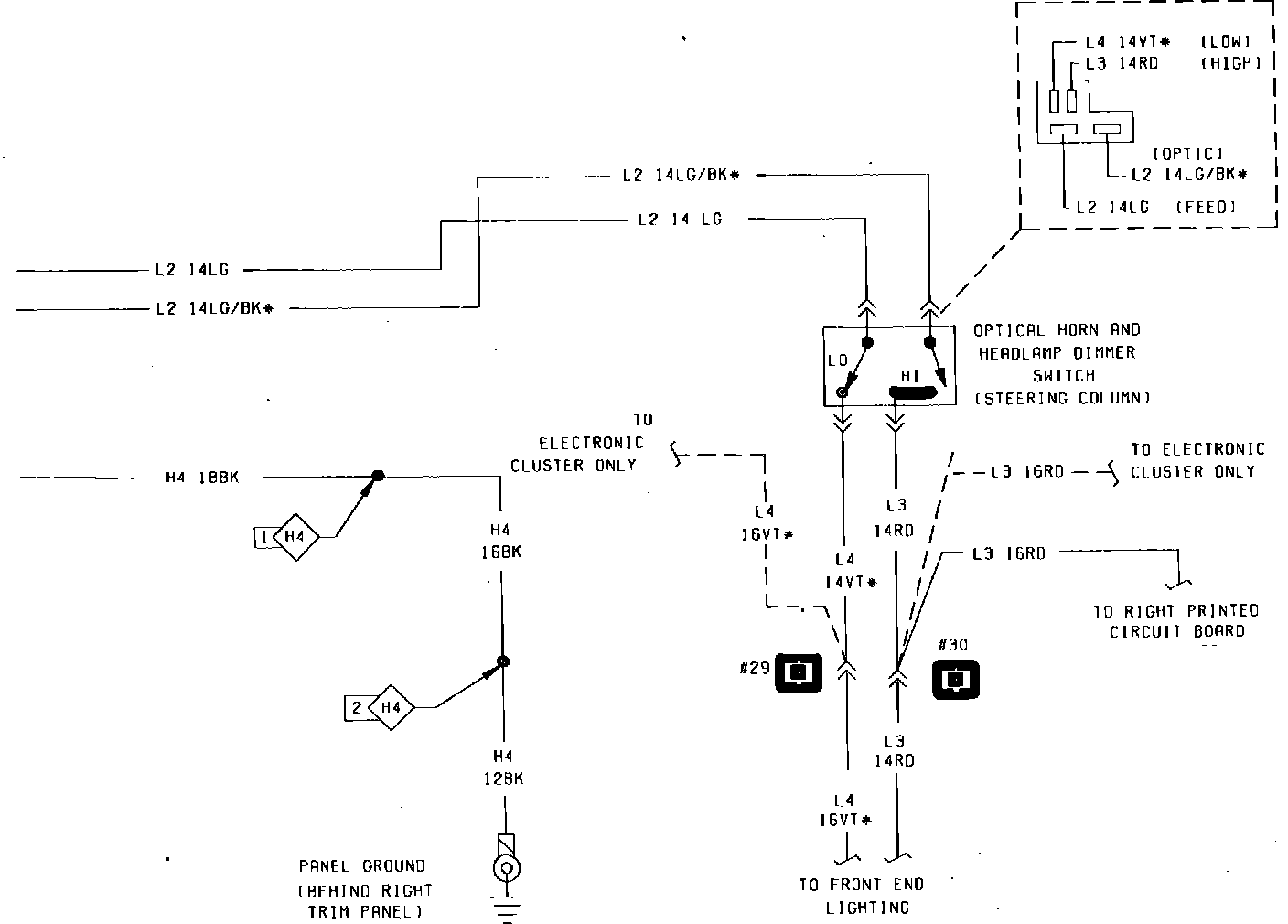

Fig. 48 Headlamp Switch Wiring Circuit (Part 2). 1985:
