3C Checking Injectors 3 and 4 Driver Circuit
3C Checking Injectors 3 and 4 Driver Circuit

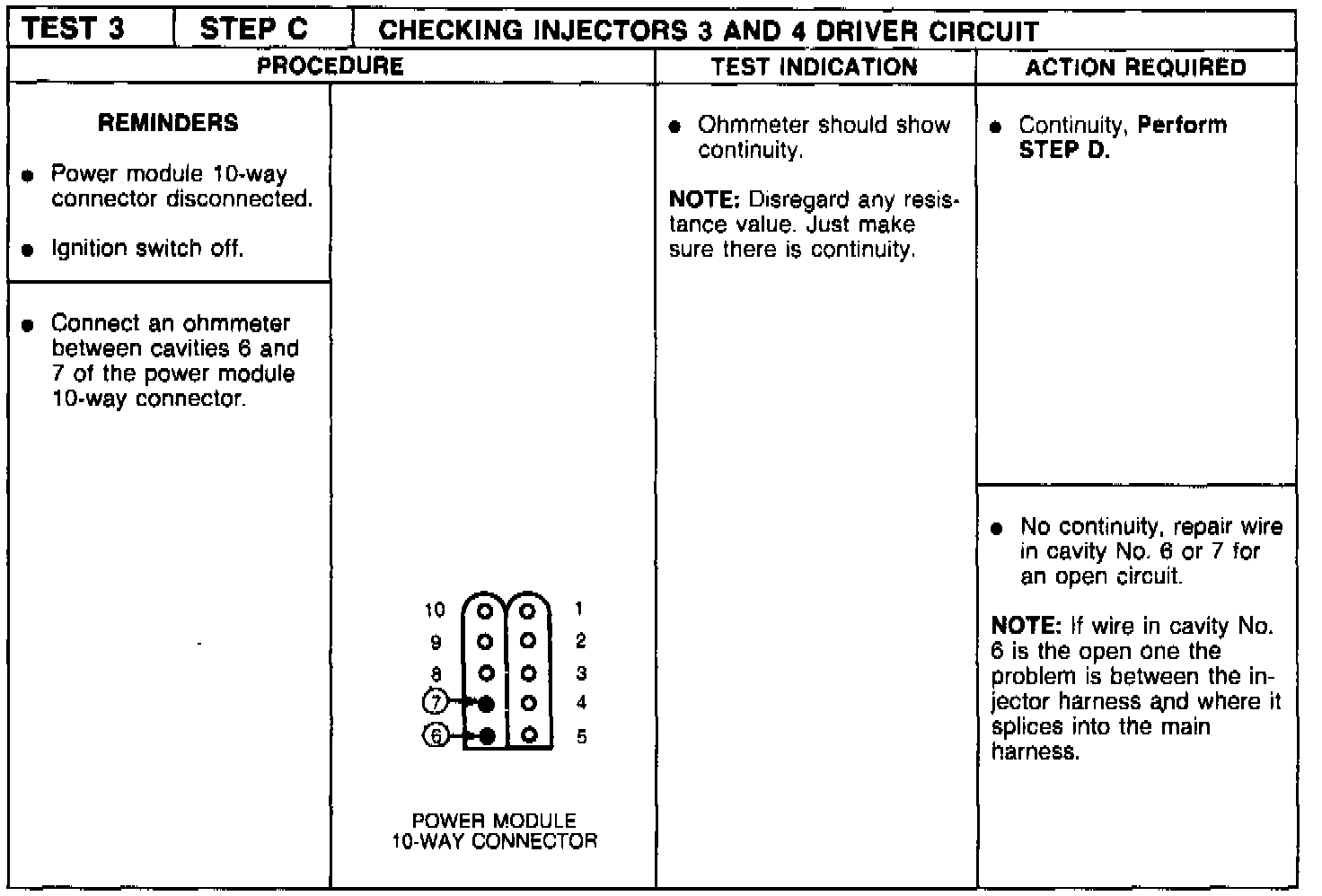

Diagnostic Chart:
