2B Checking Injectors 1 and 2 Control Wire
2B Checking Injectors 1 and 2 Control Wire

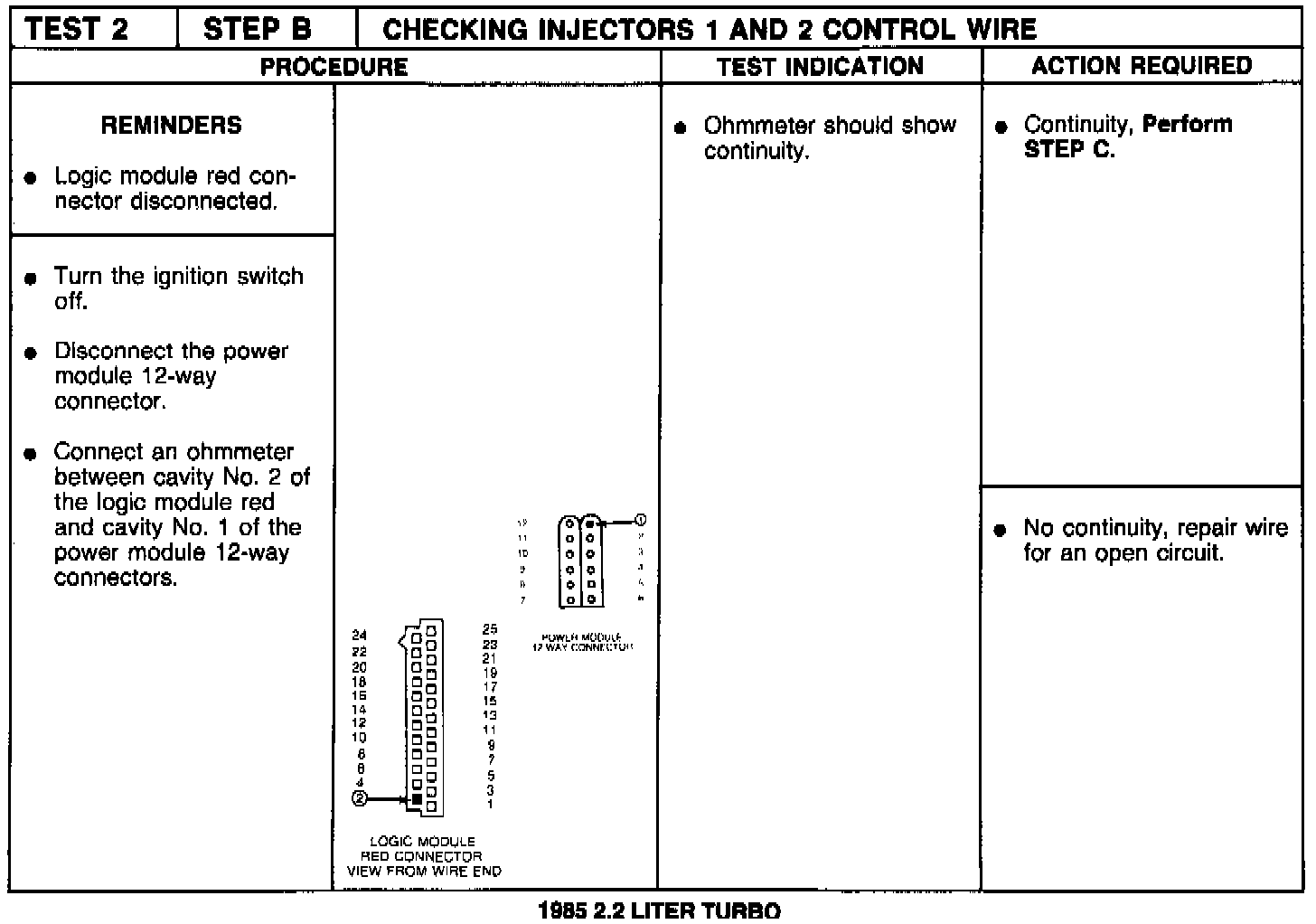

Diagnostic Chart:
