Home >> Chrysler >> 1985 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start (NS) Tests >> No Start Injectors >> 2A Checking Injectors 1 and 2 (Code 26)

2A Checking Injectors 1 and 2 (Code 26)

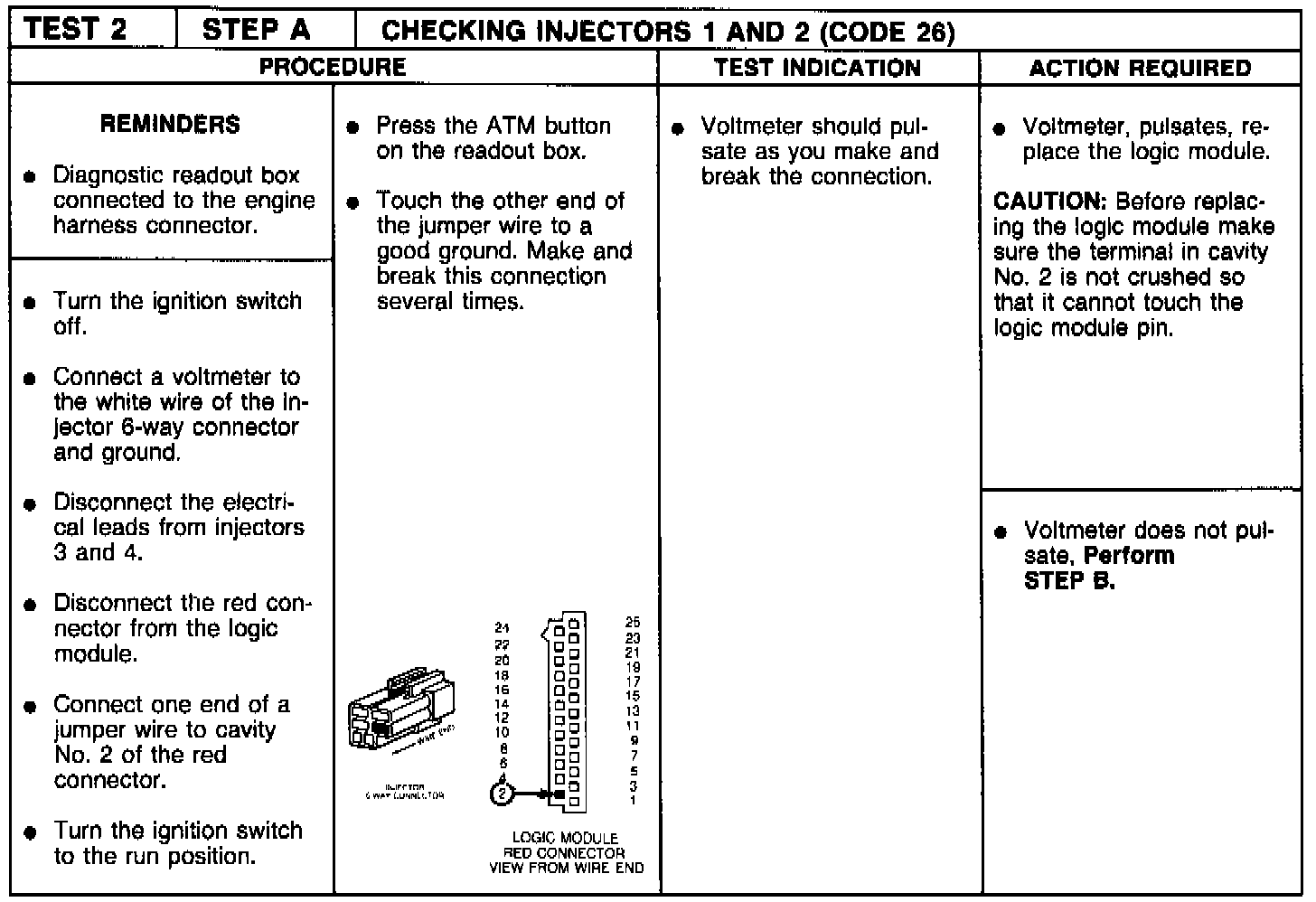

Diagnostic Chart:
