3A Checking Spark Control Circuit (Code 43)
3A Checking Spark Control Circuit (Code 43)

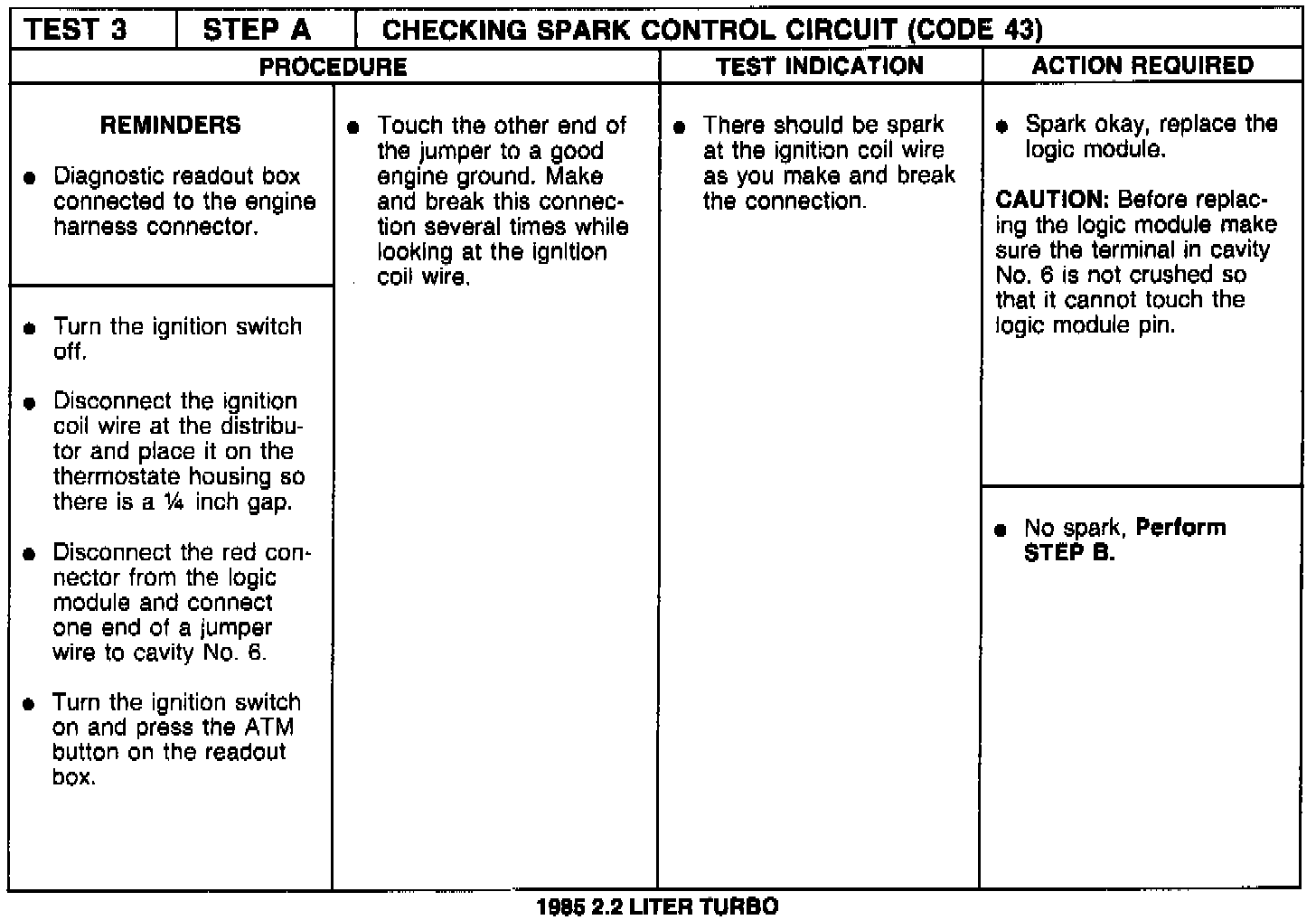

Diagnostic Chart:
