Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start (NS) Tests
>>
No Start Ignition
>>
2D Checking Ignition Coil Control Wire For Short
2D Checking Ignition Coil Control Wire For Short

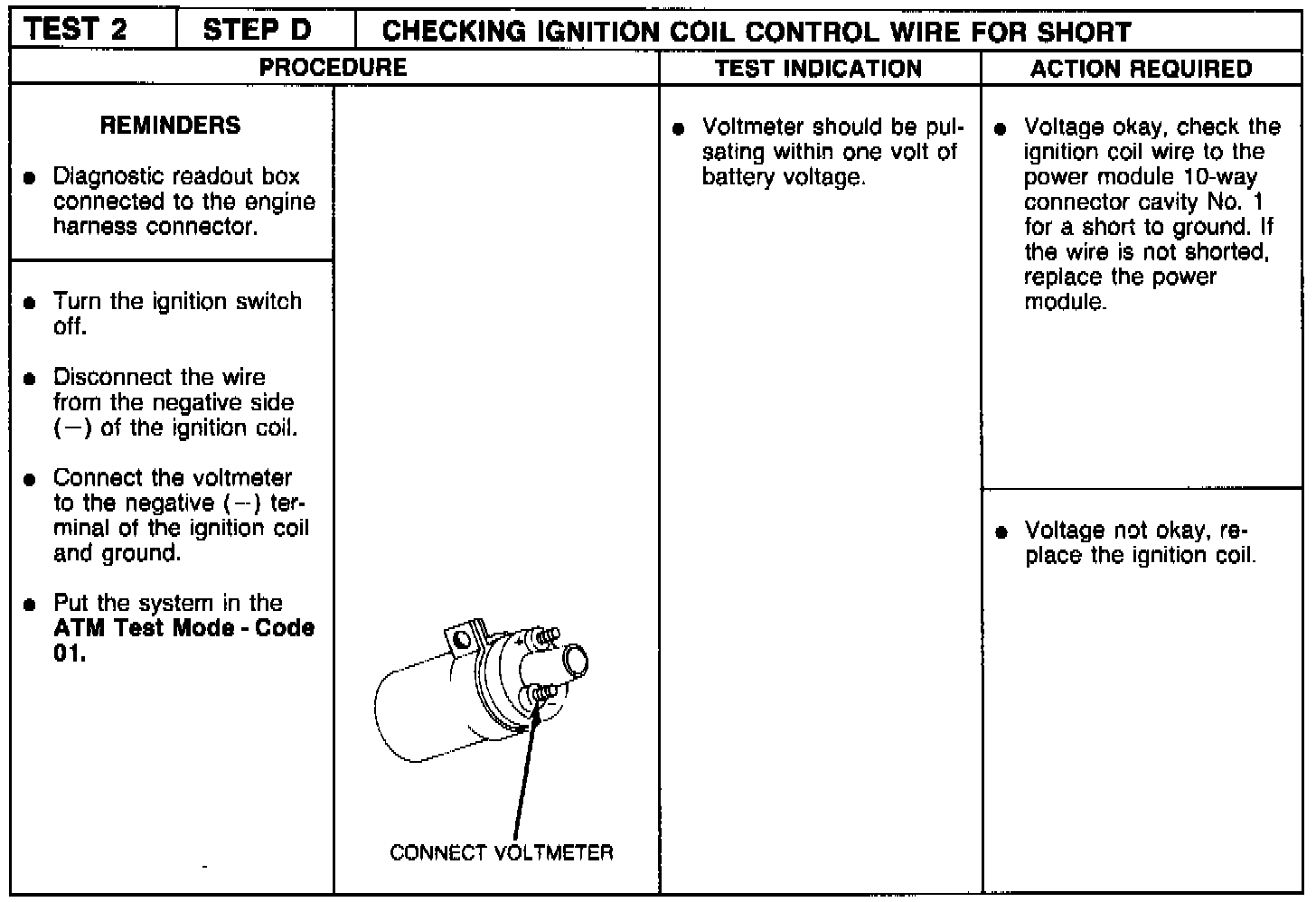

Diagnostic Chart:
