Home >> Chrysler >> 1985 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start (NS) Tests >> No Start Ignition/Injectors >> 4A Checking ASD Relay Ground Circuit (Codes 26-42)

4A Checking ASD Relay Ground Circuit (Codes 26-42)

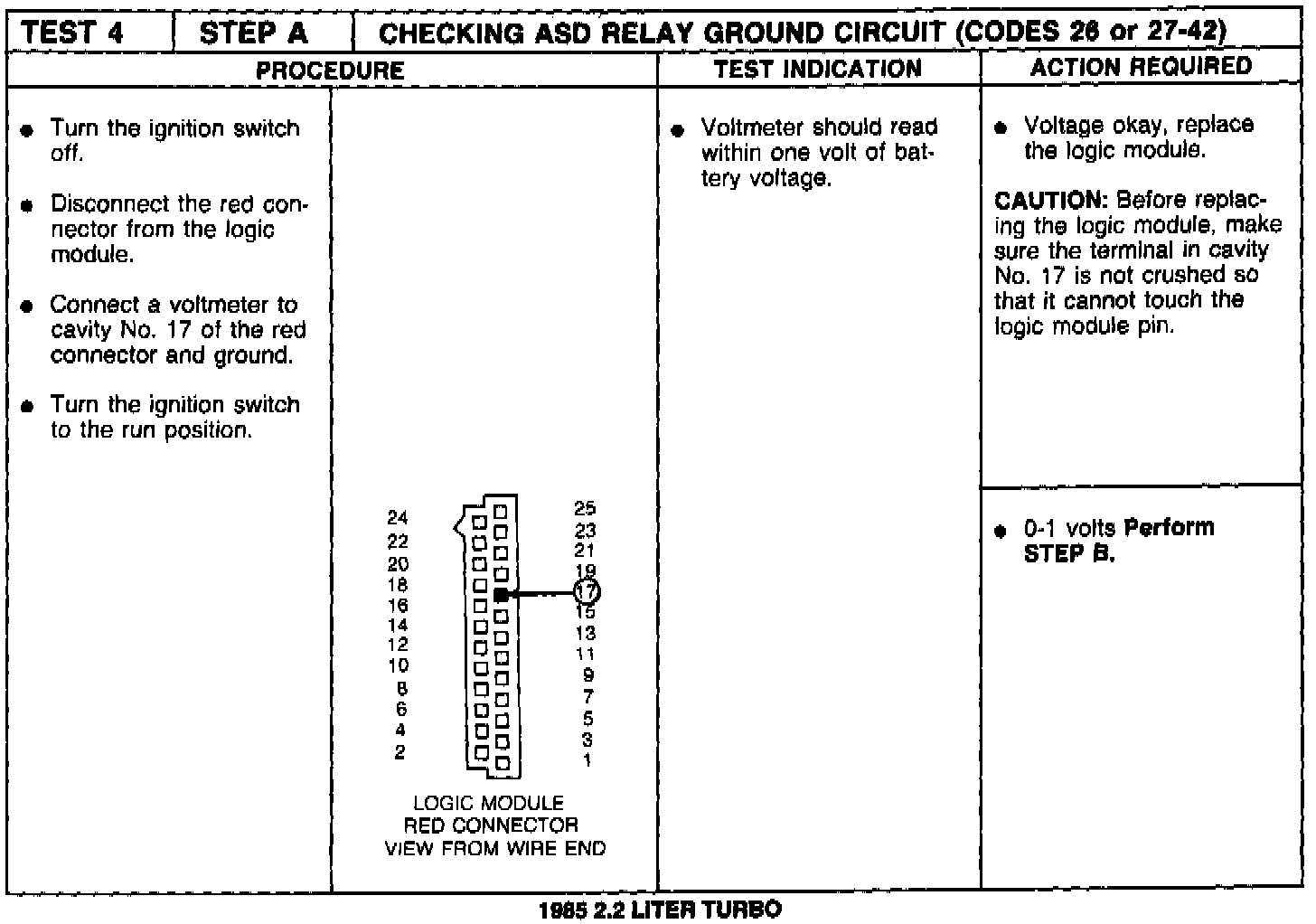

Diagnostic Chart:
