2A Checking System Power Supply (No Code 88)
2A Checking System Power Supply (No Code 88)

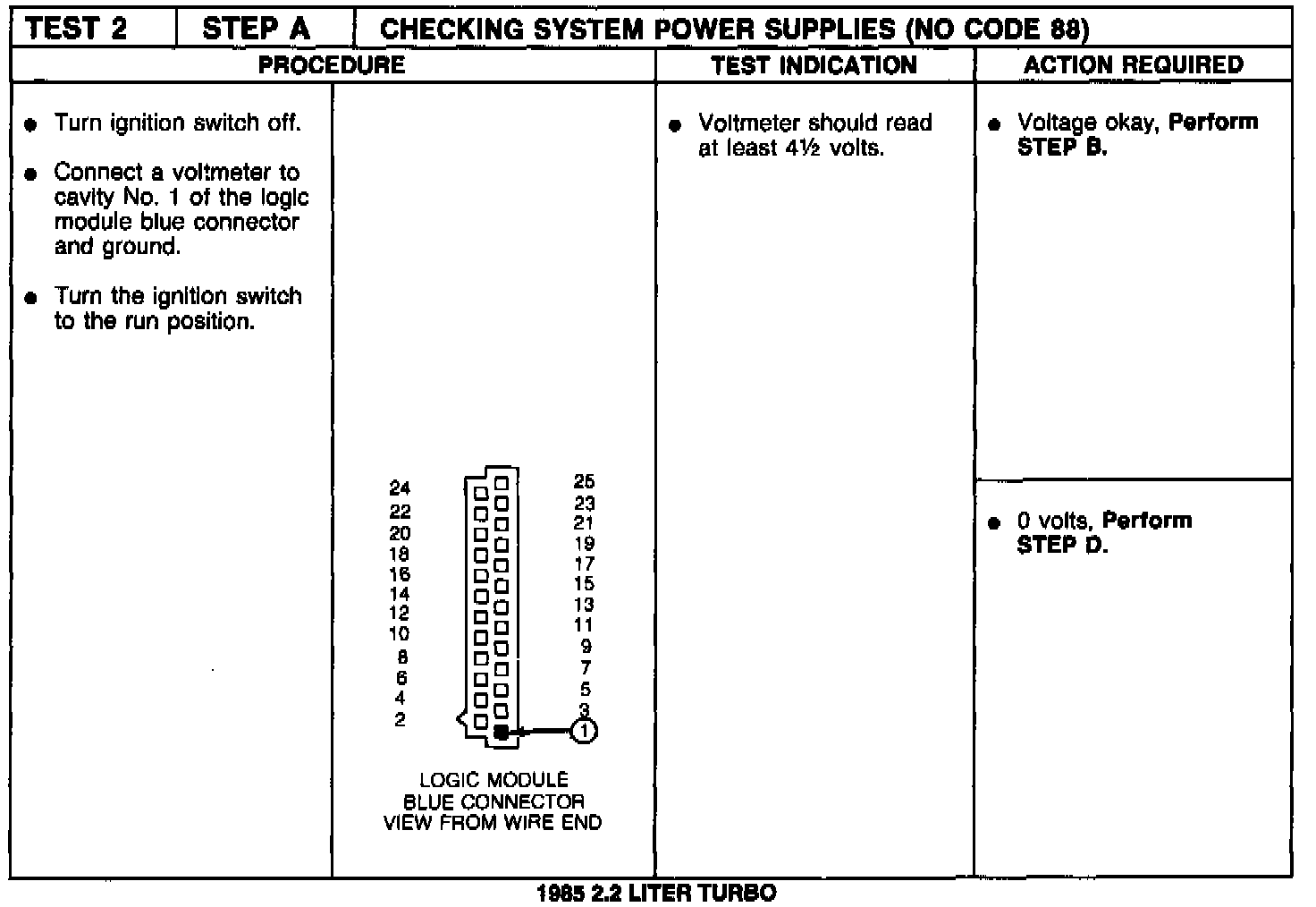

Diagnostic Chart:
