Home >> Chrysler >> 1985 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start (NS) Tests >> No Start Ignition/Injectors >> 1A Checking System For Fault Codes

1A Checking System For Fault Codes

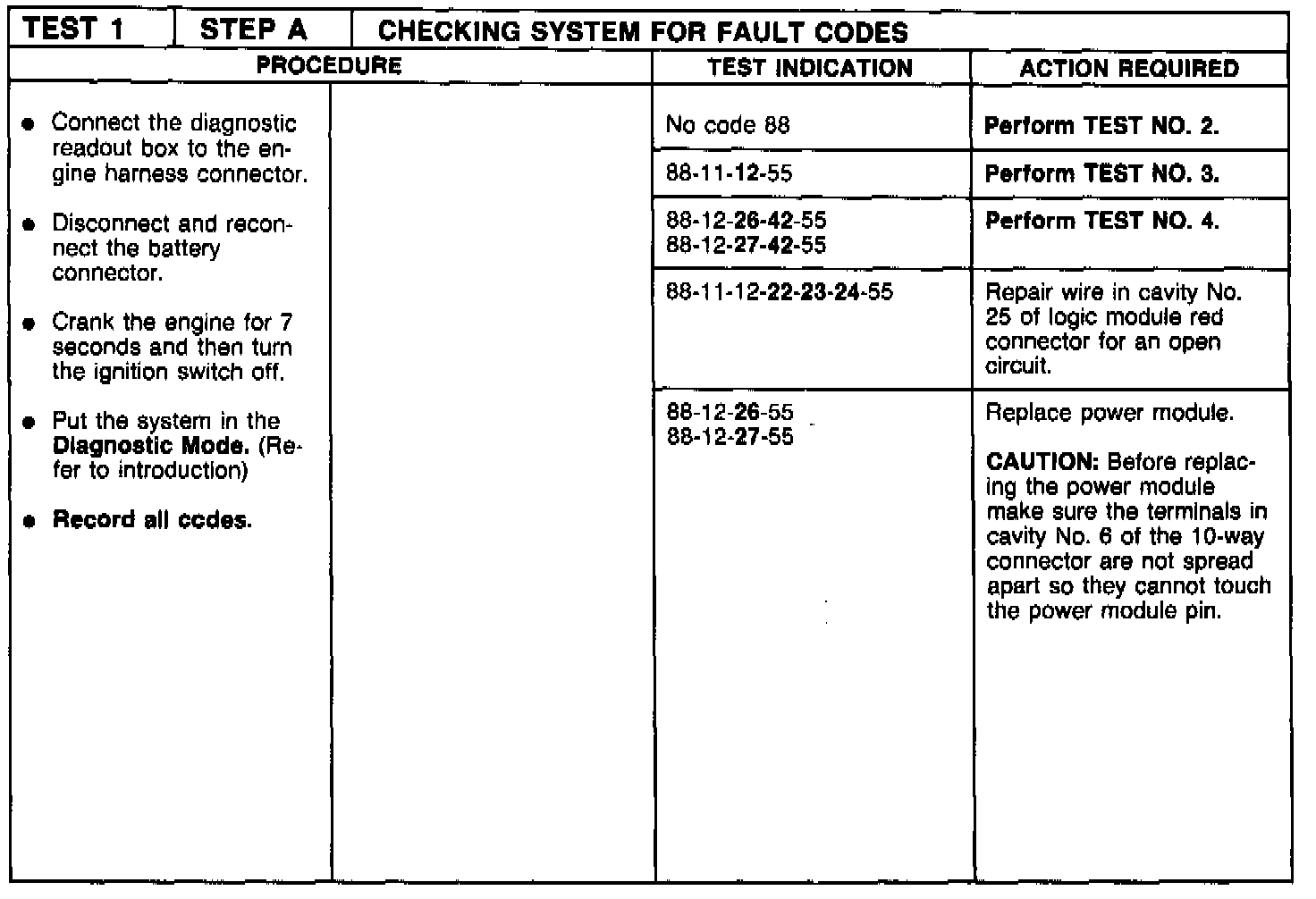

Diagnostic Chart:
