Dome Lamp

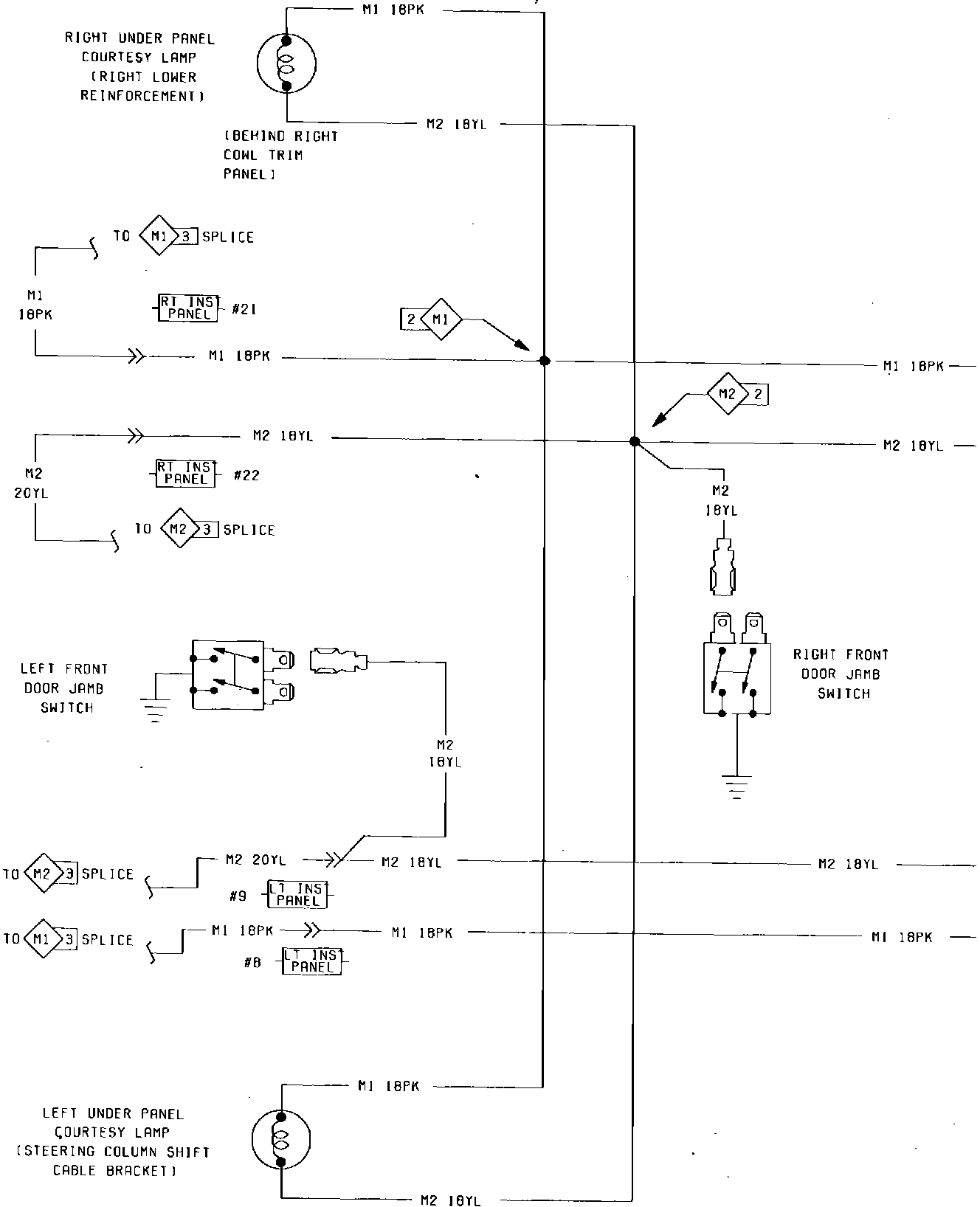

Fig. 25 Courtesy & Dome Lamp Wiring Circuit (Part 1 of 2). 1985 Except Convertible & New Yorker:

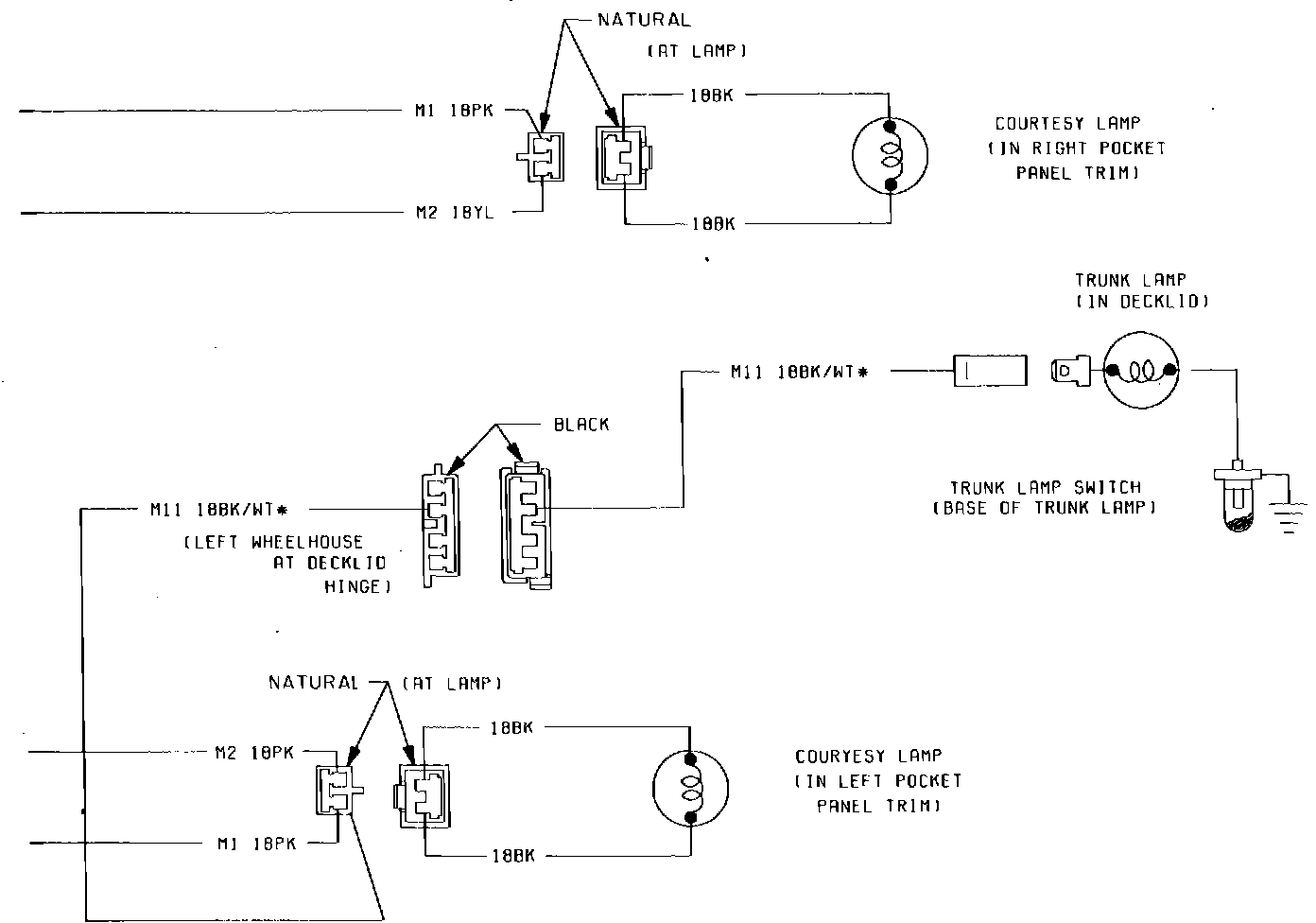

Fig. 25 Courtesy & Dome Lamp Wiring Circuit (Part 2 of 2). 1985 Except Convertible & New Yorker:

Fig. 26 Courtesy & Dome Lamp Wiring Circuit (Part 1 of 2). 1985 Convertible:

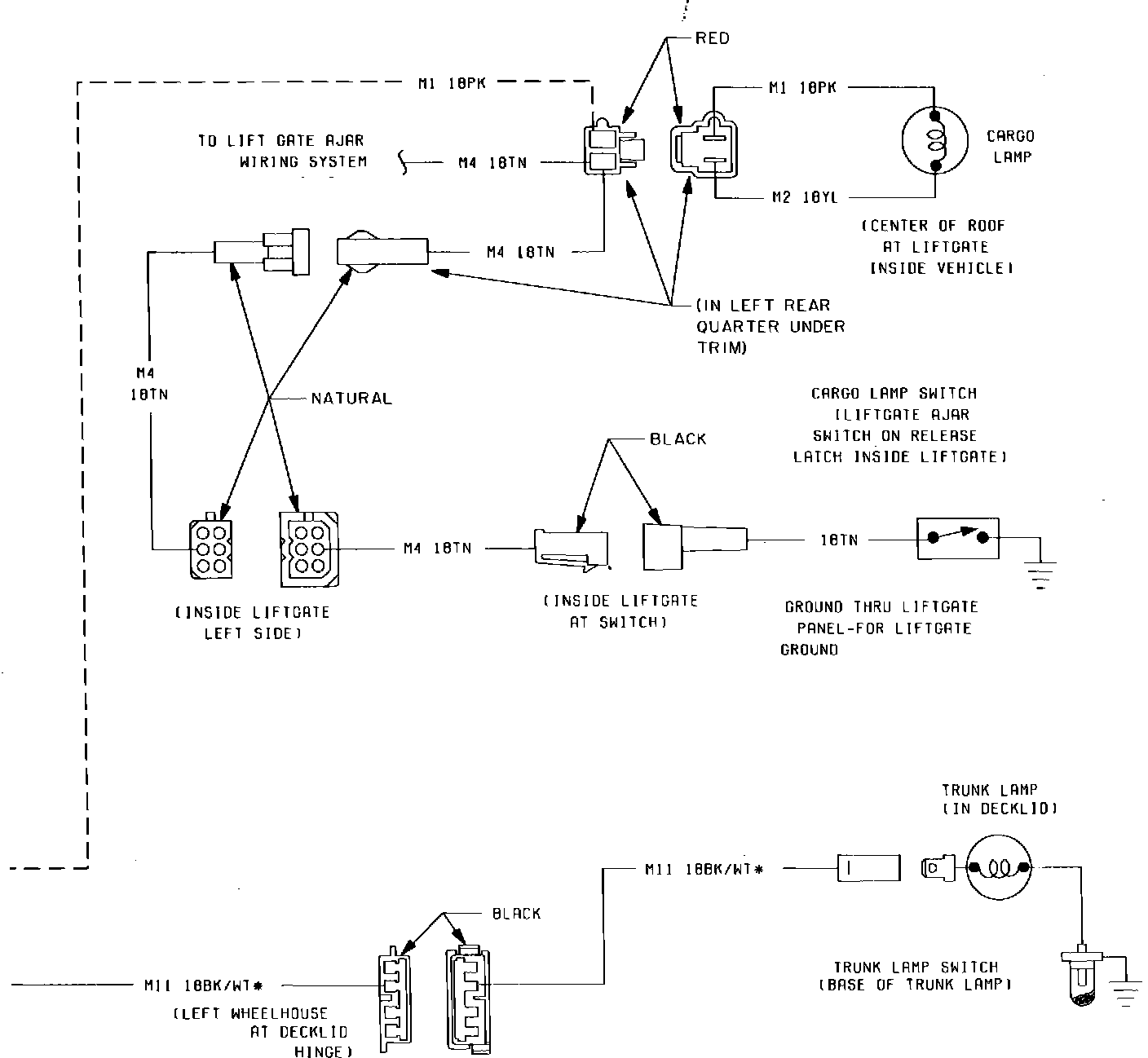

Fig. 26 Courtesy & Dome Lamp Wiring Circuit (Part 2 of 2). 1985 Convertible:
