Time Delay Relay System Wiring Circuit

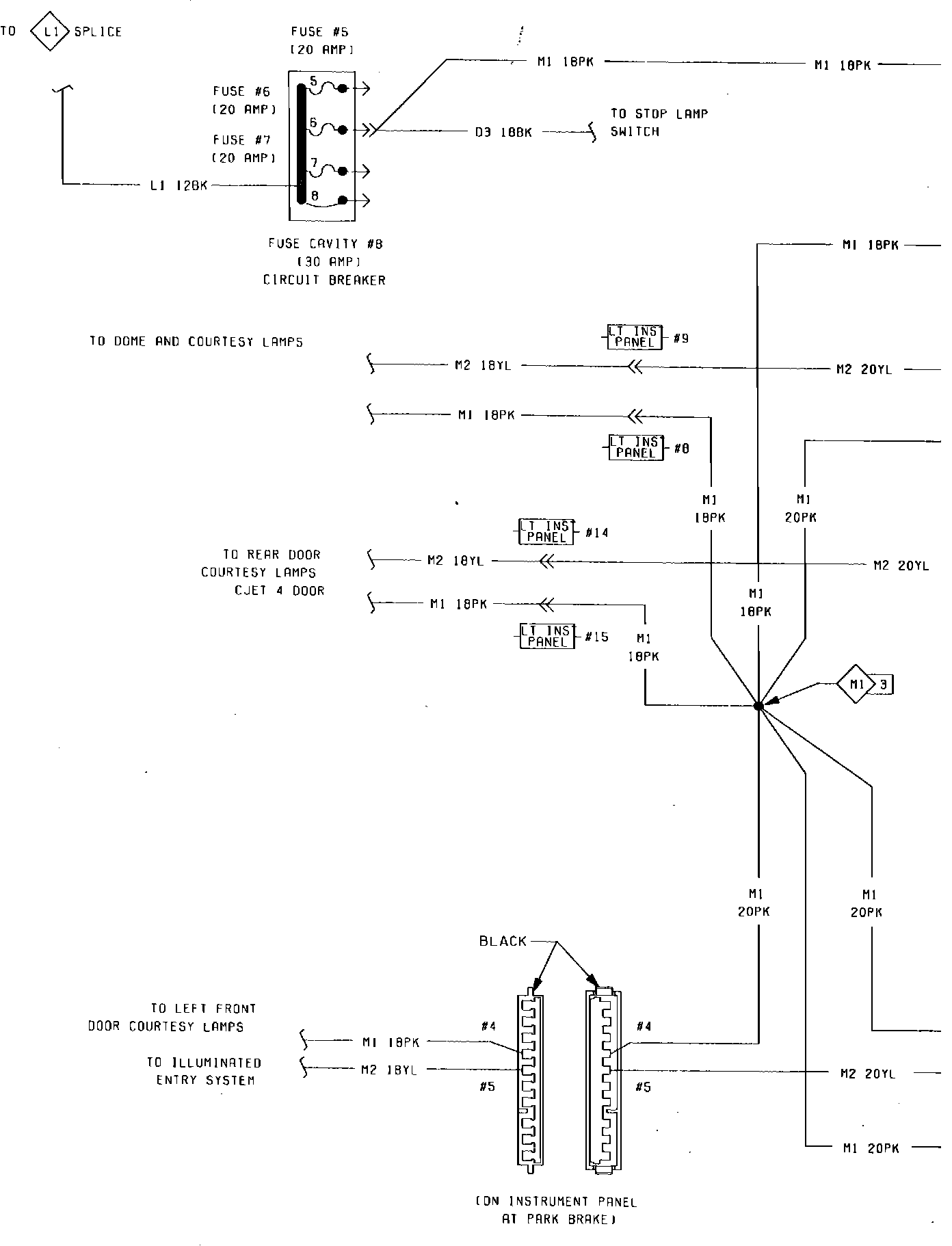

Fig. 87 Time Delay Relay System Wiring Circuit (Part 1 of 2). 1985:

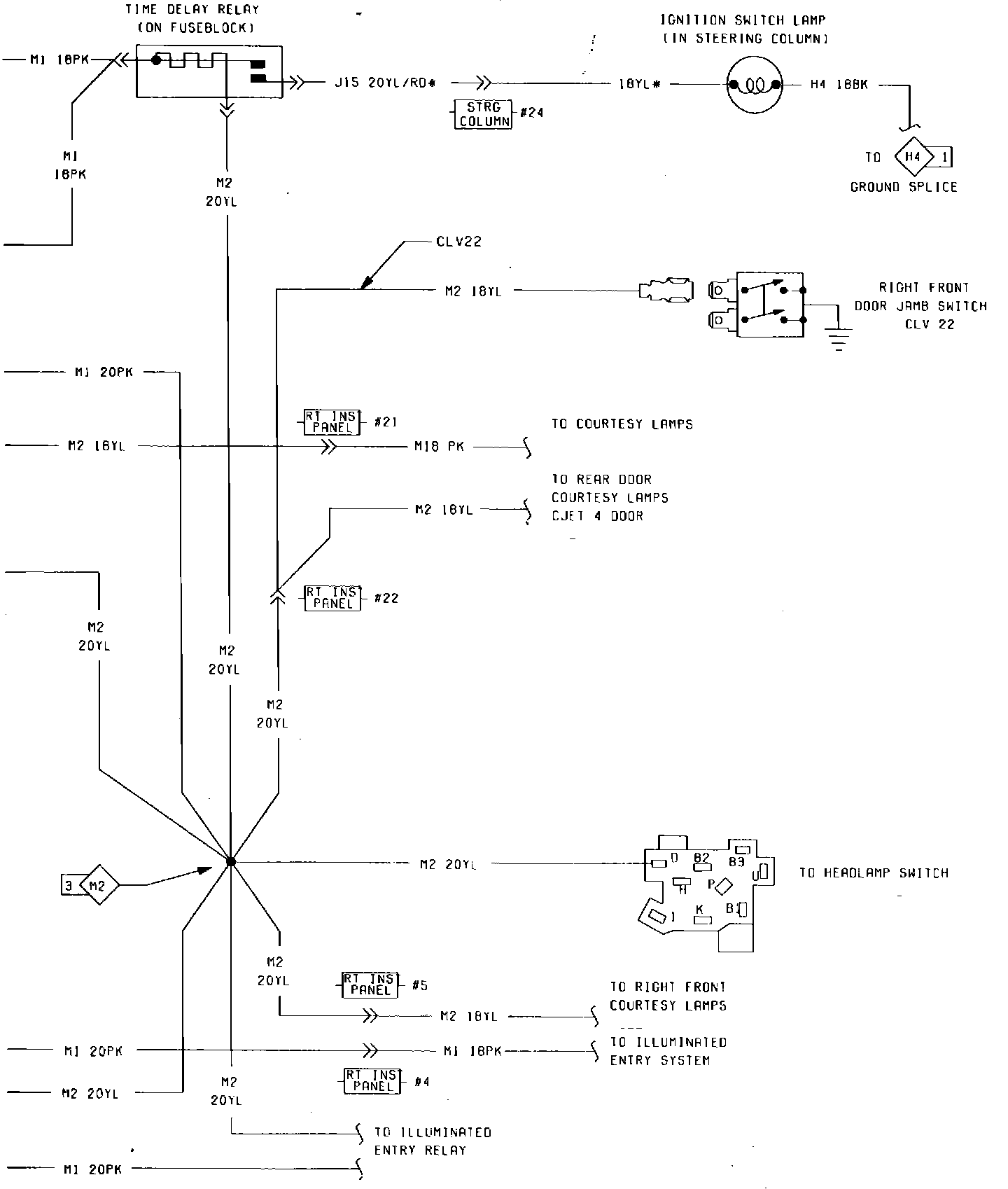

Fig. 87 Time Delay Relay System Wiring Circuit (Part 2 of 2). 1985:
